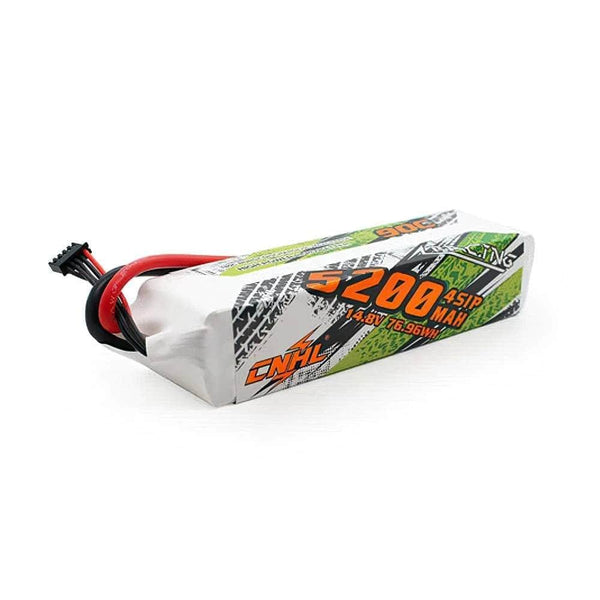

CNHL 5200mAh 4S
| Chemistry | LiPo |
|---|---|
| Cells | 4S |
| Capacity | 5200 mAh |
| C-rating | 90C |
| Energy | 77.0 Wh |
| Weight | 530.0 g |
| Dimensions | 160x45x37mm |
| Connector | EC5 |
| Price (approx.) | 72.99 USD |
| Price per Wh | 0.95 USD/Wh |
10.2 g per 100 mAh - lighter than average for its capacity among the 65 4S LiPo packs in our database (11.4). Price per Wh ($0.95) vs the $1.88 average of the 65 4S LiPo packs that publish one.
How much current can it deliver?
Rated 90C on 5200 mAh, the CNHL 5200mAh 4S is labelled for ≈ 468 A continuous (5.2 Ah × 90). Marketing C-ratings are optimistic, so keep real draw well under that.
Flight time with this battery
With 80% of its 5200 mAh used, the CNHL 5200mAh 4S gives 4.16 Ah, 249.6 amp-minutes: divide by the average draw in A for the minutes.
