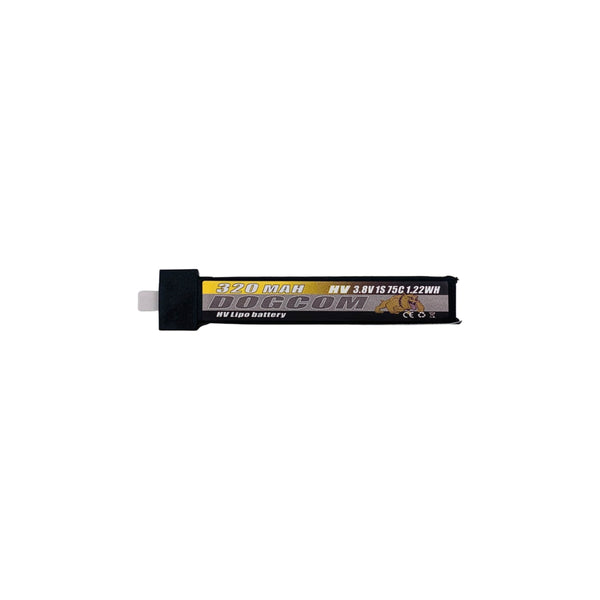

Dogcom 320mAh 1S
| Chemistry | LiHV |
|---|---|
| Cells | 1S |
| Capacity | 320 mAh |
| C-rating | 75C |
| Energy | 1.2 Wh |
| Weight | 7.5 g |
| Dimensions | 64x11x7mm |
| Connector | BT2.0 |
| Price (approx.) | 8.99 USD |
| Price per Wh | 7.39 USD/Wh |
2.3 g per 100 mAh - lighter than average for its capacity among the 49 1S LiHV packs in our database (2.5). Price per Wh ($7.39) vs the $3.66 average of the 48 1S LiHV packs that publish one.
How much current can it deliver?
Rated 75C on 320 mAh, the Dogcom 320mAh 1S is labelled for ≈ 24 A continuous (0.32 Ah × 75). Marketing C-ratings are optimistic, so keep real draw well under that.
Flight time with this battery
With 80% of its 320 mAh used, the Dogcom 320mAh 1S gives 0.26 Ah, 15.4 amp-minutes: divide by the average draw in A for the minutes.
