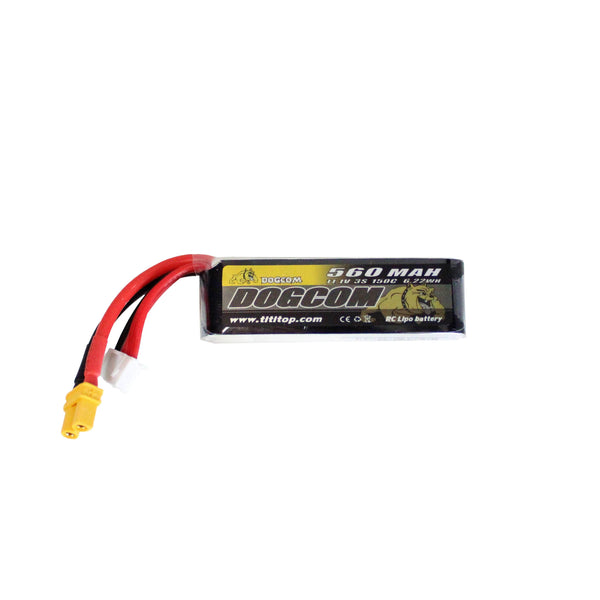

Dogcom 560mAh 3S
| Chemistry | LiPo |
|---|---|
| Cells | 3S |
| Capacity | 560 mAh |
| C-rating | 150C |
| Energy | 6.2 Wh |
| Weight | 46.0 g |
| Dimensions | 63x18x20mm |
| Connector | XT30 |
| Price (approx.) | 16.99 USD |
| Price per Wh | 2.73 USD/Wh |
8.2 g per 100 mAh - lighter than average for its capacity among the 26 3S LiPo packs in our database (8.9). Price per Wh ($2.73) vs the $2.34 average of the 26 3S LiPo packs that publish one.
How much current can it deliver?
Rated 150C on 560 mAh, the Dogcom 560mAh 3S is labelled for ≈ 84 A continuous (0.56 Ah × 150). Marketing C-ratings are optimistic, so keep real draw well under that.
Flight time with this battery
With 80% of its 560 mAh used, the Dogcom 560mAh 3S gives 0.45 Ah, 26.9 amp-minutes: divide by the average draw in A for the minutes. On the 3 quads it fits, at our cruise-current estimates: Pavo20 Pro ≈ 6.7 min (4 A), BabyApe Pro V2 ≈ 5.4 min (5 A), Pavo20 Pro II ≈ 6.7 min (4 A).
Fits these quads
- BetaFPV Pavo20 Pro — recommends 3S 550mAh
- DarwinFPV BabyApe Pro V2 — recommends 3S (2-3S supported) 550mAh
- BetaFPV Pavo20 Pro II — recommends 3S 550mAh
