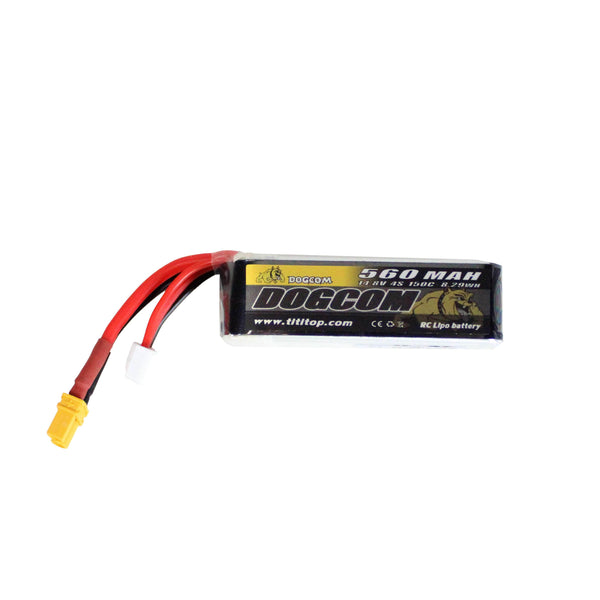

Dogcom 560mAh 4S
| Chemistry | LiPo |
|---|---|
| Cells | 4S |
| Capacity | 560 mAh |
| C-rating | 150C |
| Energy | 8.3 Wh |
| Weight | 58.0 g |
| Dimensions | 63x18x26mm |
| Connector | XT30 |
| Price (approx.) | 21.99 USD |
| Price per Wh | 2.65 USD/Wh |
10.4 g per 100 mAh - lighter than average for its capacity among the 65 4S LiPo packs in our database (11.4). Price per Wh ($2.65) vs the $1.88 average of the 65 4S LiPo packs that publish one.
How much current can it deliver?
Rated 150C on 560 mAh, the Dogcom 560mAh 4S is labelled for ≈ 84 A continuous (0.56 Ah × 150). Marketing C-ratings are optimistic, so keep real draw well under that.
Flight time with this battery
With 80% of its 560 mAh used, the Dogcom 560mAh 4S gives 0.45 Ah, 26.9 amp-minutes: divide by the average draw in A for the minutes. On the quad it fits, at our cruise-current estimate: Defender 25 ≈ 5.4 min (5 A).
Fits these quads
- iFlight Defender 25 — recommends 4S 550mAh
