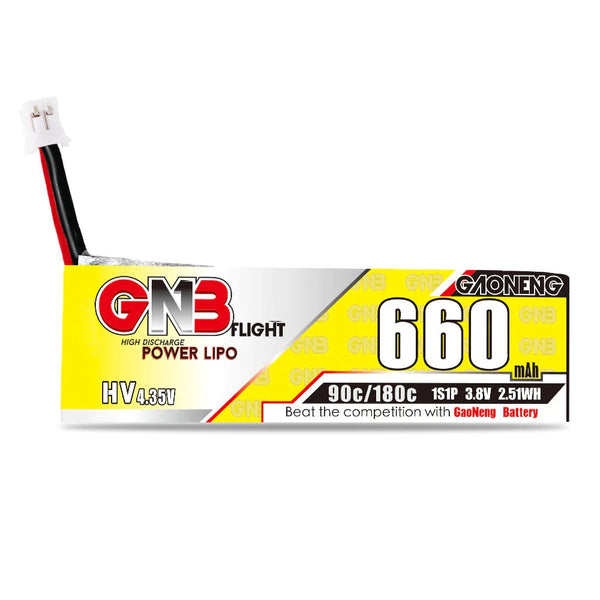

GNB Gaoneng / w 660mAh 1S
| Chemistry | LiHV |
|---|---|
| Cells | 1S |
| Capacity | 660 mAh |
| C-rating | 90C |
| Energy | 2.5 Wh |
| Weight | 15.0 g |
| Dimensions | 58x18x7.8mm |
| Connector | PH2.0 |
| Price (approx.) | 6.99 USD |
| Price per Wh | 2.79 USD/Wh |
2.3 g per 100 mAh - lighter than average for its capacity among the 49 1S LiHV packs in our database (2.5). Price per Wh ($2.79) vs the $3.66 average of the 48 1S LiHV packs that publish one.
How much current can it deliver?
Rated 90C on 660 mAh, the GNB Gaoneng / w 660mAh 1S is labelled for ≈ 59 A continuous (0.66 Ah × 90). Marketing C-ratings are optimistic, so keep real draw well under that.
Flight time with this battery
With 80% of its 660 mAh used, the GNB Gaoneng / w 660mAh 1S gives 0.53 Ah, 31.7 amp-minutes: divide by the average draw in A for the minutes. On the 2 quads it fits, at our cruise-current estimates: Tinyhawk III Plus ≈ 6.3 min (5 A), Crux3 ≈ 5.3 min (6 A).
Fits these quads
- EMAX Tinyhawk III Plus — recommends 1S (2S supported) 650mAh
- Happymodel Crux3 — recommends 1S 650mAh
- EMAX Tinyhawk III Plus Freestyle — recommends 1S (2S supported) 650mAh
