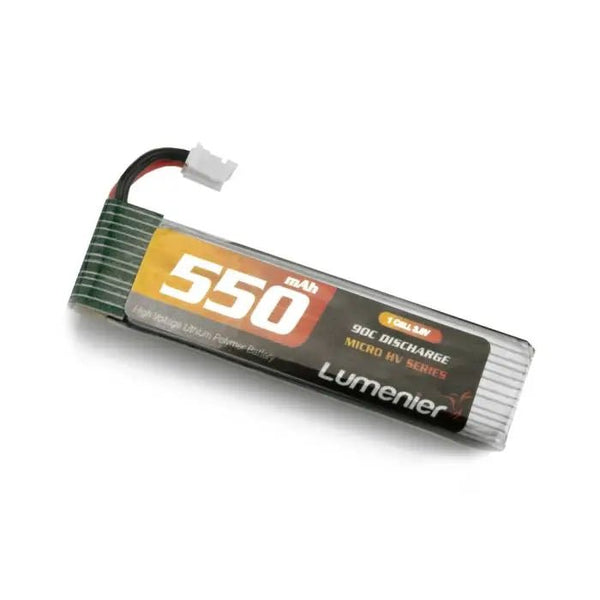

Lumenier HV JST-2.0PXH 550mAh 1S
| Chemistry | LiHV |
|---|---|
| Cells | 1S |
| Capacity | 550 mAh |
| C-rating | 90C |
| Energy | 2.1 Wh |
| Weight | 13.87 g |
| Dimensions | 65x12x7 |
| Connector | PH2.0 |
| Price (approx.) | 13.49 USD |
| Price per Wh | 6.45 USD/Wh |
2.5 g per 100 mAh - typical for its class among the 49 1S LiHV packs in our database (2.5). Price per Wh ($6.45) vs the $3.66 average of the 48 1S LiHV packs that publish one.
How much current can it deliver?
Rated 90C on 550 mAh, the Lumenier HV JST-2.0PXH 550mAh 1S is labelled for ≈ 50 A continuous (0.55 Ah × 90). Marketing C-ratings are optimistic, so keep real draw well under that.
Flight time with this battery
With 80% of its 550 mAh used, the Lumenier HV JST-2.0PXH 550mAh 1S gives 0.44 Ah, 26.4 amp-minutes: divide by the average draw in A for the minutes.
Where this data comes from
RaceDayQuads labels the figures Length 65, Width 7, Height 12 mm (re-read 2026-10-17), which stands the single cell on its edge; the size here is the same three figures in this site's Length x Width x Height order, Height being the cell's thickness as on every other pack page
