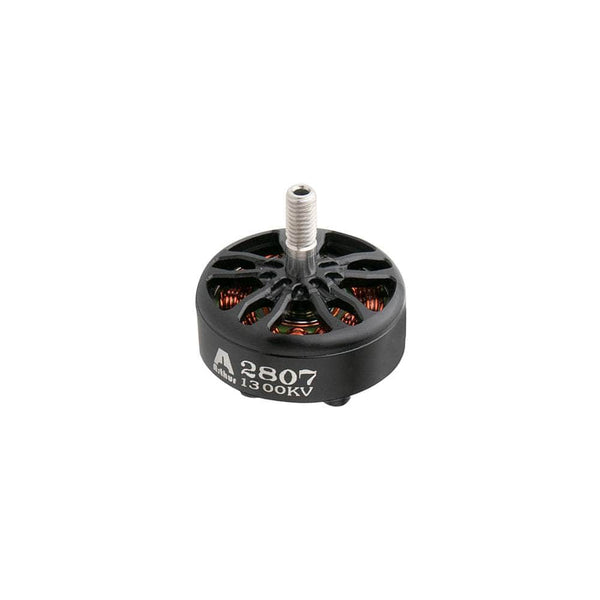

Flash Hobby Arthur 2807

Flash Hobby Arthur 2807
Image: racedayquads.com
Stator2807
KV options1300
Weight55.5 g
Shaft5mm
Max cells4-6S
Configuration14N12P
Mount19x19mm
Max thrust2036 g
Price (approx.)26.49 USD

At 55.5 g it is 7.1 g heavier than average across the 5 2807-class motors in our database (avg 48.4 g).

Thrust data (Flash Hobby bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
1300 GF 7*3.5*3 6S 40 9.91 A 13409 817 g 3.3 g/W
1300 GF 7*3.5*3 6S 50 13.28 A 14819 1012 g 3.1 g/W
1300 GF 7*3.5*3 6S 60 16.89 A 16149 1202 g 2.9 g/W
1300 GF 7*3.5*3 6S 70 21.1 A 17359 1410 g 2.7 g/W
1300 GF 7*3.5*3 6S 80 27.09 A 19053 1680 g 2.6 g/W
1300 GF 7*3.5*3 6S 90 34.22 A 20426 1942 g 2.4 g/W
1300 GF 7*3.5*3 6S 100 37.91 A 20874 2036 g 2.2 g/W
1300 GF 7*4*3 6S 40 9.41 A 14081 780 g 3.3 g/W
1300 GF 7*4*3 6S 50 12.7 A 15467 974 g 3.1 g/W
1300 GF 7*4*3 6S 60 16.16 A 16663 1141 g 2.9 g/W
1300 GF 7*4*3 6S 70 20.0 A 17818 1346 g 2.8 g/W
1300 GF 7*4*3 6S 80 26.36 A 19326 1626 g 2.5 g/W
1300 GF 7*4*3 6S 90 33.79 A 20673 1908 g 2.3 g/W
1300 GF 7*4*3 6S 100 37.46 A 21083 1996 g 2.2 g/W
1300 GF 7042 6S 40 10.03 A 12913 793 g 3.2 g/W
1300 GF 7042 6S 50 13.42 A 14327 965 g 2.9 g/W
1300 GF 7042 6S 60 17.33 A 15577 1155 g 2.7 g/W
1300 GF 7042 6S 70 22.12 A 16867 1347 g 2.5 g/W
1300 GF 7042 6S 80 28.87 A 18311 1636 g 2.3 g/W
1300 GF 7042 6S 90 36.35 A 19495 1809 g 2.1 g/W
1300 GF 7042 6S 100 40.03 A 19797 1836 g 1.9 g/W

Manufacturer bench figures (Flash Hobby bench, three 7in props at 23.9-24.7 V (6S), 40-100% throttle in 10% steps, with RPM); real-world thrust varies with ESC, battery sag and prop condition.

Arthur 2807 vs other 2807 motors on 6S

The same thrust costs different power on different motors. Each line is one maker's own bench series (6S, its own prop), drawn as grams of thrust per watt against thrust, so a higher line makes that thrust for less battery current. Throttle percent is left out on purpose: it means something different on every maker's rig.

01234505001000150020002500 thrust, g g/W
MotorKVPropPeak thrust At 1000 gAt 2000 g
Flash Hobby Arthur 2807 1300 GF 7*3.5*3 2036 g at 908 W 322 W (3.1 g/W) 875 W (2.29 g/W)
EMAX E3 Series 2807 1500 EMAX AVIA 7040-3 2580 g at 1293 W 266 W (3.77 g/W) 727 W (2.75 g/W)

Power at 1000 g and 2000 g is read off each maker's curve, straight-line between its two nearest bench points; 2000 g is the highest thrust every motor here reached. Different props and rigs move these curves as much as the motor does, so compare rows on a similar prop. Peak thrust of every 2807 motor: 2807 motors compared. How to read a bench table: reading motor bench tables.

Thrust-to-weight with this motor

Four Flash Hobby Arthur 2807 motors at 2036 g max thrust each give 8144 g: 2:1, the minimum to fly, up to 4072 g all-up; 4:1 (freestyle) up to 2036 g; 8:1 (racing) up to 1018 g.

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
APC 7x4 SF-B4 2-Blade 7.0x4.0 2 5.1 g
HQProp 7x5.5x2 7.0x5.5 2 6.4 g
Gemfan Cinelifter 7035 7x3.5x3 7.0x3.5 3 6.5 g
HQProp 7x4.5x2 Durable 7.0x4.5 2 6.6 g
HQProp MacroQuad 7x4.5 Glass Fiber Nylon CCW 7.0x4.5 2 6.8 g

Where this data comes from

Bench rows are Flash Hobby's own test table, headed "A2807-1300KV", published as a description image on this retail listing; flashhobby.com publishes no bench table for any FPV motor. The image begins at the table's first data row - the header is not in it - so the columns are read off the arithmetic instead: Power is each row's own volts x amps to 0.15 W on all 21 rows (the GF7*3.5*3 60% row, 24.54 x 16.89 = 414.38 against a printed 414.5, is the only one past 0.05), printed Efficiency is Thrust / Power on all 21, and the one column left is five digits and monotone in throttle on each run, in the slot the brand's own Arthur 2207.5 sheet leaves out - RPM. The listing's "Max pull: 1996g" is this table's GF7*4*3 full-throttle row to the gram, not its maximum: the GF7*3.5*3 run reaches 2036 g. Operating temperature: 55.8 degC on GF7*3.5*3, 52.4 on GF7*4*3, 60.6 on GF7042.
