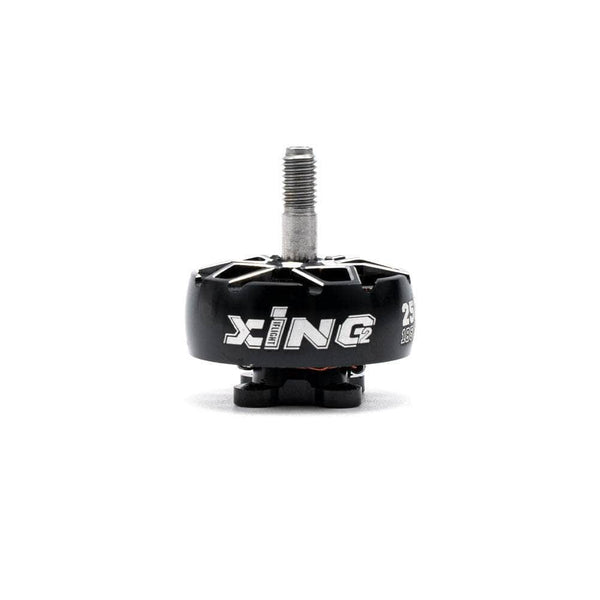

iFlight Xing2 2506
| Stator | 2506 |
|---|---|
| KV options | 1500, 1850 |
| Weight | 38.2 g |
| Shaft | 5mm |
| Max cells | 6S |
| Configuration | 12N14P |
| Dimensions | Ø31.7x19.6 mm |
| Mount | 16x16mm (M3) |
| Winding resistance | 74.88 (1500KV) / 47.6 (1850KV) mOhm |
| Max thrust | 1993 g |
| Price (approx.) | 31.49 USD |
Thrust data (iFlight bench test)
| KV | Prop | Battery | Throttle | Current | RPM | Thrust | Efficiency |
|---|---|---|---|---|---|---|---|
| 1500 | HQ 6*2.5*3 | 6S | 50 | 5.57 A | — | 532 g | 3.792 g/W |
| 1500 | HQ 6*2.5*3 | 6S | 60 | 8.9 A | — | 761 g | 3.401 g/W |
| 1500 | HQ 6*2.5*3 | 6S | 70 | 12.88 A | — | 1006 g | 3.12 g/W |
| 1500 | HQ 6*2.5*3 | 6S | 80 | 18.39 A | — | 1293 g | 2.822 g/W |
| 1500 | HQ 6*2.5*3 | 6S | 90 | 24.36 A | — | 1558 g | 2.583 g/W |
| 1500 | HQ 6*2.5*3 | 6S | 100 | 31.81 A | — | 1860 g | 2.376 g/W |
| 1500 | Gemfan 6030-3 | 6S | 50 | 6.33 A | — | 594 g | 3.723 g/W |
| 1500 | Gemfan 6030-3 | 6S | 60 | 9.82 A | — | 829 g | 3.359 g/W |
| 1500 | Gemfan 6030-3 | 6S | 70 | 14.16 A | — | 1080 g | 3.047 g/W |
| 1500 | Gemfan 6030-3 | 6S | 80 | 19.72 A | — | 1352 g | 2.756 g/W |
| 1500 | Gemfan 6030-3 | 6S | 90 | 25.91 A | — | 1607 g | 2.505 g/W |
| 1500 | Gemfan 6030-3 | 6S | 100 | 33.26 A | — | 1872 g | 2.289 g/W |
| 1850 | Nazgul 5140 | 6S | 50 | 10.11 A | — | 694 g | 2.697 g/W |
| 1850 | Nazgul 5140 | 6S | 60 | 15.1 A | — | 901 g | 2.351 g/W |
| 1850 | Nazgul 5140 | 6S | 70 | 22.89 A | — | 1132 g | 1.954 g/W |
| 1850 | Nazgul 5140 | 6S | 80 | 30.25 A | — | 1333 g | 1.754 g/W |
| 1850 | Nazgul 5140 | 6S | 90 | 39.29 A | — | 1588 g | 1.615 g/W |
| 1850 | Nazgul 5140 | 6S | 100 | 49.05 A | — | 1844 g | 1.505 g/W |
| 1850 | Gemfan 51466 | 6S | 50 | 9.44 A | — | 726 g | 3.011 g/W |
| 1850 | Gemfan 51466 | 6S | 60 | 14.33 A | — | 999 g | 2.727 g/W |
| 1850 | Gemfan 51466 | 6S | 70 | 21.53 A | — | 1283 g | 2.356 g/W |
| 1850 | Gemfan 51466 | 6S | 80 | 28.74 A | — | 1537 g | 2.118 g/W |
| 1850 | Gemfan 51466 | 6S | 90 | 37.81 A | — | 1742 g | 1.829 g/W |
| 1850 | Gemfan 51466 | 6S | 100 | 50.33 A | — | 1993 g | 1.583 g/W |
Manufacturer bench figures (iFlight test report per winding, 6 throttle points (50-100%) at 6S (25.2 V): 1500 KV on HQ 6*2.5*3 and Gemfan 6030-3, 1850 KV on Nazgul 5140 and Gemfan 51466); real-world thrust varies with ESC, battery sag and prop condition.
Thrust-to-weight with this motor
Four iFlight Xing2 2506 motors at 1993 g max thrust each give 7972 g: 2:1, the minimum to fly, up to 3986 g all-up; 4:1 (freestyle) up to 1993 g; 8:1 (racing) up to 996.5 g.
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| Gemfan Hurricane LR 6026-2 | 6.0x2.6 | 2 | 3.0 g |
| Gemfan Freestyle 6030 | 6.0x3.0 | 3 | 4.45 g |
| HQProp 5.5X2.2X3 | 5.5x2.2 | 3 | 4.6 g |
| HQProp 5535 5.5x3.5x3 V2 | 5.5x3.5 | 3 | 4.6 g |
| HQProp 6x4.3x2 | 6.0x4.3 | 2 | 4.7 g |
Where this data comes from
iFlight's product page carries one TEST REPORT image per winding (XING2-2506-1500KV.png and -1850KV.png): the spec table, a drawing and a 12-row datasheet. They confirm both windings, 38.2 g / 43.6 g with wire, 16x16 M3, 12N14P, 74.88 / 47.6 mOhm, a 5 mm shaft protruding 15 mm, 160 mm 20AWG leads and the 33.26 A / 817.5 W and 50.33 A / 1258.8 W peaks (each the 100% row of its own datasheet). Both reports' Dimension line reads 31.7x34.6 mm, but their drawings dimension the body at 19.60 mm, and 34.6 is 19.6 plus the 15 mm shaft protrusion, so the body is published as Ø31.7x19.6 (the length the BOB57 2506 report prints for the same winding). All 24 rows pass the efficiency identity. Max thrust is the 1850 KV winding's 1993 g on the Gemfan 51466 at 6S.
