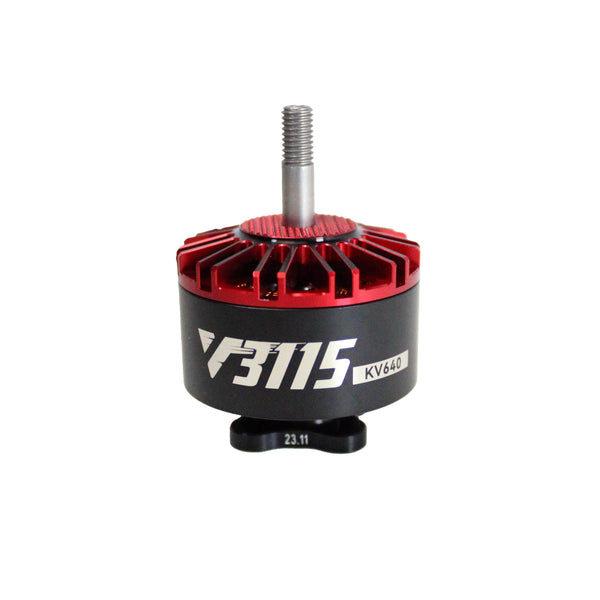

T-Motor V3115 3115

T-Motor V3115 3115
Image: racedayquads.com
Stator3115
KV options400, 640, 900, 1050
Weight113.4 g (400KV)
Shaft5mm
Max cells3-12S
Configuration12N14P
DimensionsØ37.2x51.1 mm
Mount (bolt circle, mm)Ø19 (4-M3)
Winding resistance145.38 (400KV) / 67.13 (640KV) / 38.08 (900KV) / 33.84 (1050KV) mOhm
Max thrust4817 g
Price (approx.)62.99 USD

At 113.4 g it is 6.3 g heavier than average across the 4 3115-class motors in our database (avg 107.1 g).

Thrust data (T-Motor bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
400 T-Motor T9.5X5-3 12S 10 0.21 A 2134 35 g 3.5 g/W
400 T-Motor T9.5X5-3 12S 20 0.76 A 4101 238 g 6.5 g/W
400 T-Motor T9.5X5-3 12S 30 1.46 A 5472 478 g 6.8 g/W
400 T-Motor T9.5X5-3 12S 40 3.11 A 7101 856 g 5.7 g/W
400 T-Motor T9.5X5-3 12S 50 5.51 A 8640 1300 g 4.9 g/W
400 T-Motor T9.5X5-3 12S 60 8.61 A 10049 1784 g 4.3 g/W
400 T-Motor T9.5X5-3 12S 70 12.15 A 11478 2358 g 4.1 g/W
400 T-Motor T9.5X5-3 12S 80 17.44 A 12860 2986 g 3.6 g/W
400 T-Motor T9.5X5-3 12S 90 23.77 A 14133 3638 g 3.2 g/W
400 T-Motor T9.5X5-3 12S 100 31.42 A 15291 4299 g 2.9 g/W
400 HQ 1050-3 12S 10 0.22 A 2023 44 g 4.2 g/W
400 HQ 1050-3 12S 20 0.75 A 3791 254 g 7.0 g/W
400 HQ 1050-3 12S 30 1.69 A 5241 559 g 6.9 g/W
400 HQ 1050-3 12S 40 3.56 A 6820 1018 g 6.0 g/W
400 HQ 1050-3 12S 50 6.43 A 8295 1552 g 5.0 g/W
400 HQ 1050-3 12S 60 10.17 A 9634 2095 g —
400 HQ 1050-3 12S 70 15.51 A 10973 2819 g —
400 HQ 1050-3 12S 80 22.76 A 12129 3514 g 3.2 g/W
400 HQ 1050-3 12S 90 30.35 A 13224 4213 g 2.9 g/W
400 HQ 1050-3 12S 100 41.12 A 14013 4781 g 2.5 g/W
400 T-Motor T10.5X5-3 12S 10 0.22 A 1880 42 g 4.1 g/W
400 T-Motor T10.5X5-3 12S 20 0.73 A 3644 272 g 7.8 g/W
400 T-Motor T10.5X5-3 12S 30 1.77 A 5187 619 g 7.3 g/W
400 T-Motor T10.5X5-3 12S 40 3.72 A 6758 1099 g 6.2 g/W
400 T-Motor T10.5X5-3 12S 50 6.7 A 8220 1646 g 5.1 g/W
400 T-Motor T10.5X5-3 12S 60 10.26 A 9407 2189 g —
400 T-Motor T10.5X5-3 12S 70 15.99 A 10821 2931 g 3.8 g/W
400 T-Motor T10.5X5-3 12S 80 23.3 A 11851 3555 g 3.2 g/W
400 T-Motor T10.5X5-3 12S 90 31.01 A 13011 4285 g 2.9 g/W
400 T-Motor T10.5X5-3 12S 100 41.84 A 13713 4817 g 2.4 g/W
400 T-Motor T10.5X5-3 8S 10 0.15 A 1199 11 g 2.4 g/W
400 T-Motor T10.5X5-3 8S 20 0.49 A 2613 117 g 7.4 g/W
400 T-Motor T10.5X5-3 8S 30 1.04 A 3661 285 g 8.5 g/W
400 T-Motor T10.5X5-3 8S 40 1.91 A 4667 502 g 8.2 g/W
400 T-Motor T10.5X5-3 8S 50 3.72 A 5844 825 g 6.9 g/W
400 T-Motor T10.5X5-3 8S 60 5.5 A 6826 1144 g 6.5 g/W
400 T-Motor T10.5X5-3 8S 70 8.35 A 7853 1529 g 5.7 g/W
400 T-Motor T10.5X5-3 8S 80 11.82 A 8748 1916 g 5.1 g/W
400 T-Motor T10.5X5-3 8S 90 15.88 A 9661 2350 g 4.6 g/W
400 T-Motor T10.5X5-3 8S 100 20.62 A 10503 2798 g 4.3 g/W
640 T-Motor T9.5X5-3 8S 10 0.33 A 2030 32 g 3.0 g/W
640 T-Motor T9.5X5-3 8S 20 1.21 A 4108 242 g 6.2 g/W
640 T-Motor T9.5X5-3 8S 30 2.64 A 5642 518 g 6.1 g/W
640 T-Motor T9.5X5-3 8S 40 5.01 A 7183 882 g 5.5 g/W
640 T-Motor T9.5X5-3 8S 50 8.72 A 8732 1333 g 4.8 g/W
640 T-Motor T9.5X5-3 8S 60 13.91 A 10151 1821 g 4.1 g/W
640 T-Motor T9.5X5-3 8S 70 19.43 A 11554 2389 g 3.9 g/W
640 T-Motor T9.5X5-3 8S 80 27.77 A 12900 3018 g 3.4 g/W
640 T-Motor T9.5X5-3 8S 90 37.44 A 14120 3637 g 3.1 g/W
640 T-Motor T9.5X5-3 8S 100 49.03 A 15211 4280 g 2.8 g/W
640 HQ 1050-3 8S 10 0.33 A 1912 44 g 4.1 g/W
640 HQ 1050-3 8S 20 1.25 A 3844 268 g 6.7 g/W
640 HQ 1050-3 8S 30 2.95 A 5346 586 g 6.2 g/W
640 HQ 1050-3 8S 40 5.66 A 6841 1034 g 5.7 g/W
640 HQ 1050-3 8S 50 10.31 A 8350 1591 g 4.8 g/W
640 HQ 1050-3 8S 60 16.1 A 9540 2107 g 4.1 g/W
640 HQ 1050-3 8S 70 24.53 A 10945 2825 g 3.6 g/W
640 HQ 1050-3 8S 80 35.22 A 12023 3450 g 3.1 g/W
640 HQ 1050-3 8S 90 46.55 A 13090 4126 g 2.8 g/W
640 HQ 1050-3 8S 100 60.77 A 13871 4693 g 2.5 g/W
640 T-Motor T10.5X5-3 8S 10 0.33 A 1738 37 g 3.5 g/W
640 T-Motor T10.5X5-3 8S 20 1.25 A 3686 285 g 7.1 g/W
640 T-Motor T10.5X5-3 8S 30 3.13 A 5243 655 g 6.5 g/W
640 T-Motor T10.5X5-3 8S 40 5.94 A 6784 1127 g 5.9 g/W
640 T-Motor T10.5X5-3 8S 50 10.67 A 8262 1705 g 5.0 g/W
640 T-Motor T10.5X5-3 8S 60 16.5 A 9432 2218 g 4.2 g/W
640 T-Motor T10.5X5-3 8S 70 25.2 A 10829 2952 g 3.7 g/W
640 T-Motor T10.5X5-3 8S 80 34.25 A 11770 3559 g 3.3 g/W
640 T-Motor T10.5X5-3 8S 90 47.53 A 12890 4265 g 2.9 g/W
640 T-Motor T10.5X5-3 8S 100 61.83 A 13632 4797 g 2.5 g/W
640 T-Motor T10.5X5-3 6S 10 0.25 A 1190 2 g 0.4 g/W
640 T-Motor T10.5X5-3 6S 20 0.89 A 2841 139 g 6.5 g/W
640 T-Motor T10.5X5-3 6S 30 1.95 A 4050 345 g 7.4 g/W
640 T-Motor T10.5X5-3 6S 40 3.97 A 5289 644 g 6.8 g/W
640 T-Motor T10.5X5-3 6S 50 6.54 A 6432 995 g 6.3 g/W
640 T-Motor T10.5X5-3 6S 60 10.58 A 7590 1416 g 5.6 g/W
640 T-Motor T10.5X5-3 6S 70 16.24 A 8597 1835 g 4.8 g/W
640 T-Motor T10.5X5-3 6S 80 22.33 A 9596 2304 g 4.4 g/W
640 T-Motor T10.5X5-3 6S 90 29.83 A 10534 2791 g 4.0 g/W
640 T-Motor T10.5X5-3 6S 100 38.71 A 11405 3288 g 3.6 g/W
900 HQ 9050-3 6S 10 0.5 A 2132 47 g 4.0 g/W
900 HQ 9050-3 6S 20 1.81 A 4318 275 g 6.3 g/W
900 HQ 9050-3 6S 30 3.88 A 5834 546 g 5.9 g/W
900 HQ 9050-3 6S 40 7.39 A 7389 916 g 5.2 g/W
900 HQ 9050-3 6S 50 12.66 A 8944 1384 g 4.6 g/W
900 HQ 9050-3 6S 60 20.68 A 10366 1885 g 3.8 g/W
900 HQ 9050-3 6S 70 29.07 A 11750 2454 g 3.6 g/W
900 HQ 9050-3 6S 80 41.09 A 13043 3047 g 3.2 g/W
900 HQ 9050-3 6S 90 54.95 A 14144 3626 g 2.8 g/W
900 HQ 9050-3 6S 100 71.15 A 15140 4199 g 2.6 g/W
900 T-Motor T9.5X5-3 6S 10 0.49 A 2024 29 g 2.5 g/W
900 T-Motor T9.5X5-3 6S 20 1.8 A 4233 256 g 5.9 g/W
900 T-Motor T9.5X5-3 6S 30 3.88 A 5790 547 g 5.9 g/W
900 T-Motor T9.5X5-3 6S 40 7.4 A 7367 933 g 5.3 g/W
900 T-Motor T9.5X5-3 6S 50 12.55 A 8930 1404 g 4.7 g/W
900 T-Motor T9.5X5-3 6S 60 20.69 A 10368 1902 g 3.9 g/W
900 T-Motor T9.5X5-3 6S 70 28.85 A 11733 2480 g 3.6 g/W
900 T-Motor T9.5X5-3 6S 80 40.61 A 13036 3084 g 3.2 g/W
900 T-Motor T9.5X5-3 6S 90 54.17 A 14176 3663 g 2.9 g/W
900 T-Motor T9.5X5-3 6S 100 70.01 A 15190 4246 g 2.6 g/W
900 HQ 1050-3 6S 10 0.49 A 1901 28 g 2.4 g/W
900 HQ 1050-3 6S 20 1.86 A 3936 282 g 6.3 g/W
900 HQ 1050-3 6S 30 4.35 A 5450 619 g 5.9 g/W
900 HQ 1050-3 6S 40 9.22 A 7048 1106 g 5.0 g/W
900 HQ 1050-3 6S 50 15.23 A 8482 1663 g 4.6 g/W
900 HQ 1050-3 6S 60 — 9647 2192 g 3.8 g/W
900 HQ 1050-3 6S 70 35.77 A 11009 2907 g 3.5 g/W
900 HQ 1050-3 6S 80 50.8 A 11930 3439 g 2.9 g/W
900 HQ 1050-3 6S 90 65.69 A 12968 4107 g 2.7 g/W
900 HQ 1050-3 6S 100 82.99 A 13712 4605 g 2.4 g/W
900 T-Motor T10.5X5-3 6S 10 0.5 A 1649 28 g 2.3 g/W
900 T-Motor T10.5X5-3 6S 20 1.88 A 3767 305 g 6.8 g/W
900 T-Motor T10.5X5-3 6S 30 4.56 A 5379 691 g 6.3 g/W
900 T-Motor T10.5X5-3 6S 40 9.39 A 6958 1215 g 5.4 g/W
900 T-Motor T10.5X5-3 6S 50 15.86 A 8391 1782 g 4.7 g/W
900 T-Motor T10.5X5-3 6S 60 23.86 A 9516 2307 g 4.1 g/W
900 T-Motor T10.5X5-3 6S 70 36.67 A 10886 3043 g 3.5 g/W
900 T-Motor T10.5X5-3 6S 80 50.48 A 11874 3646 g 3.1 g/W
900 T-Motor T10.5X5-3 6S 90 66.87 A 12795 4244 g 2.8 g/W
900 T-Motor T10.5X5-3 6S 100 83.3 A 13479 4735 g 2.5 g/W
900 T-Motor T10.5X5-3 4S 10 0.34 A 985 11 g 2.0 g/W
900 T-Motor T10.5X5-3 4S 20 1.19 A 2602 121 g 6.3 g/W
900 T-Motor T10.5X5-3 4S 30 2.52 A 3745 301 g 7.4 g/W
900 T-Motor T10.5X5-3 4S 40 4.85 A 4857 552 g 7.1 g/W
900 T-Motor T10.5X5-3 4S 50 8.19 A 5987 861 g 6.6 g/W
900 T-Motor T10.5X5-3 4S 60 13.7 A 7047 1232 g 5.7 g/W
900 T-Motor T10.5X5-3 4S 70 19.47 A 8008 1602 g 5.2 g/W
900 T-Motor T10.5X5-3 4S 80 27.54 A 8870 1988 g 4.6 g/W
900 T-Motor T10.5X5-3 4S 90 36.45 A 9728 2399 g 4.2 g/W
900 T-Motor T10.5X5-3 4S 100 47.06 A 10520 2820 g 3.9 g/W
1050 T-Motor T8.5X5-3 6S 10 0.62 A 2546 38 g 2.6 g/W
1050 T-Motor T8.5X5-3 6S 20 2.25 A 5112 279 g 5.2 g/W
1050 T-Motor T8.5X5-3 6S 30 4.66 A 6869 561 g 5.0 g/W
1050 T-Motor T8.5X5-3 6S 40 7.93 A 8423 877 g 4.6 g/W
1050 T-Motor T8.5X5-3 6S 50 13.52 A 10152 1296 g 4.0 g/W
1050 T-Motor T8.5X5-3 6S 60 20.67 A 11898 1800 g 3.7 g/W
1050 T-Motor T8.5X5-3 6S 70 29.6 A 13552 2351 g 3.4 g/W
1050 T-Motor T8.5X5-3 6S 80 40.68 A 14946 2878 g 3.0 g/W
1050 T-Motor T8.5X5-3 6S 90 54.38 A 16248 3423 g 2.7 g/W
1050 T-Motor T8.5X5-3 6S 100 69.75 A 17443 3977 g 2.5 g/W
1050 HQ 9050-3 6S 10 0.63 A 2345 37 g 2.5 g/W
1050 HQ 9050-3 6S 20 2.3 A 4642 298 g 5.4 g/W
1050 HQ 9050-3 6S 30 5.0 A 6271 621 g 5.2 g/W
1050 HQ 9050-3 6S 40 9.72 A 7958 1062 g 4.6 g/W
1050 HQ 9050-3 6S 50 17.29 A 9564 1582 g 3.8 g/W
1050 HQ 9050-3 6S 60 26.75 A 11092 2157 g 3.4 g/W
1050 HQ 9050-3 6S 70 37.78 A 12425 2731 g 3.1 g/W
1050 HQ 9050-3 6S 80 51.87 A 13692 3359 g 2.8 g/W
1050 HQ 9050-3 6S 90 68.78 A 14724 3921 g 2.5 g/W
1050 HQ 9050-3 6S 100 83.61 A 15568 4409 g 2.3 g/W
1050 T-Motor T9.5X5-3 6S 10 0.63 A 2212 38 g 2.6 g/W
1050 T-Motor T9.5X5-3 6S 20 2.32 A 4529 304 g 5.5 g/W
1050 T-Motor T9.5X5-3 6S 30 5.02 A 6230 645 g 5.4 g/W
1050 T-Motor T9.5X5-3 6S 40 9.78 A 7962 1099 g 4.7 g/W
1050 T-Motor T9.5X5-3 6S 50 17.28 A 9572 1624 g 4.0 g/W
1050 T-Motor T9.5X5-3 6S 60 26.61 A 11103 2217 g 3.5 g/W
1050 T-Motor T9.5X5-3 6S 70 37.46 A 12453 2813 g 3.2 g/W
1050 T-Motor T9.5X5-3 6S 80 51.33 A 13723 3455 g 2.9 g/W
1050 T-Motor T9.5X5-3 6S 90 67.94 A 14793 4024 g 2.6 g/W
1050 T-Motor T9.5X5-3 6S 100 83.5 A 15628 4537 g 2.4 g/W
1050 HQ 1045-3 6S 10 0.65 A 2173 27 g 1.8 g/W
1050 HQ 1045-3 6S 20 2.35 A 4643 284 g 5.0 g/W
1050 HQ 1045-3 6S 30 4.98 A 6378 621 g 5.2 g/W
1050 HQ 1045-3 6S 40 9.41 A 8049 1068 g 4.7 g/W
1050 HQ 1045-3 6S 50 16.7 A 9728 1627 g 4.1 g/W
1050 HQ 1045-3 6S 60 25.6 A 11301 2263 g 3.7 g/W
1050 HQ 1045-3 6S 70 36.25 A 12725 2914 g 3.4 g/W
1050 HQ 1045-3 6S 80 49.96 A 14012 3586 g 3.1 g/W
1050 HQ 1045-3 6S 90 66.67 A 15073 4232 g 2.8 g/W
1050 HQ 1045-3 6S 100 83.46 A 15965 4804 g 2.5 g/W
1050 HQ 1045-3 4S 10 0.42 A 1260 1 g 0.2 g/W
1050 HQ 1045-3 4S 20 1.48 A 3207 105 g 4.4 g/W
1050 HQ 1045-3 4S 30 2.99 A 4576 283 g 5.9 g/W
1050 HQ 1045-3 4S 40 4.96 A 5659 474 g 6.0 g/W
1050 HQ 1045-3 4S 50 8.15 A 6807 739 g 5.7 g/W
1050 HQ 1045-3 4S 60 12.6 A 7985 1060 g 5.4 g/W
1050 HQ 1045-3 4S 70 18.46 A 8967 1373 g 4.9 g/W
1050 HQ 1045-3 4S 80 25.55 A 10033 1754 g 4.5 g/W
1050 HQ 1045-3 4S 90 33.71 A 10940 2122 g 4.2 g/W
1050 HQ 1045-3 4S 100 43.82 A 11964 2566 g 3.9 g/W

Manufacturer bench figures (T-Motor bench, six props across four KV: T-Motor T9.5X5-3, HQ 1050-3 and T-Motor T10.5X5-3 at 400 KV on 12S (48 V) plus a second T10.5X5-3 run on 8S (32 V); the same three at 640 KV on 8S (32 V) plus a second T10.5X5-3 run on 6S (24 V); HQ 9050-3, T9.5X5-3, HQ 1050-3 and T10.5X5-3 at 900 KV on 6S (24 V) plus a second T10.5X5-3 run on 4S (16 V); T8.5X5-3, HQ 9050-3, T9.5X5-3 and HQ 1045-3 at 1050 KV on 6S (24 V) plus a second HQ 1045-3 run on 4S (16 V); 10 throttle points (10-100% in 10% steps) on each); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

Four T-Motor V3115 3115 motors at 4817 g max thrust each give 19268 g: 2:1, the minimum to fly, up to 9634 g all-up; 4:1 (freestyle) up to 4817 g; 8:1 (racing) up to 2408.5 g.

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
HQProp 8x5 8.0x5.0 2 10.0 g
Gemfan Cinelifter 8040 8.0x4.0 3 10.5 g
HQProp 8x3.7x3 3-Blade 8.0x3.7 3 12.0 g
HQProp MacroQuad 8x4x3 3-Blade 8.0x4.0 3 12.8 g
HQProp 8x4x3 3-Blade 8.0x4.0 3 13.0 g

Where this data comes from

Bench rows, configuration, dimensions and winding resistances are from T-Motor's own "Test Report", "Specifications" and "Product Drawing" images on tmotorhobby.com/goods-1330.html, where the report's own Type column reads "V3115 KV400", "V3115 KV640", "V3115 KV900" and "V3115 KV1050". Identity with our retail listings is three figures shared to the digit - 113.1 g, which is the 900 KV block's Weight (Incl. Cable), a 5 mm shaft (block: IN5 OUT5) and both KV the retailers sell appearing as blocks and as Types. The block and the report carry two further windings, 400 and 1050 KV, which no retailer we price from lists and T-Motor's own page title does not either - that title names no KV at all - so kv_options gains both: 400 KV is 113.4 g at 145.38 mOhm with a 0.59 A idle, 640 KV 113.3 g at 67.13 mOhm and 1.10 A, 900 KV 113.1 g at 38.08 mOhm and 1.57 A, 1050 KV 112.7 g at 33.84 mOhm and 1.79 A. Max thrust is the 400 KV T10.5X5-3 12 S 100% row, 4817 g, where the page carried none. The spec-block cross-check lands on all four windings, and reading it row-by-row is what shows the field is a per-column maximum rather than a row: on 400, 640 and 900 KV the block's Max. Power (10s) and Peak Current (10s) are one row - T10.5X5-3 at 100% (1982 W / 41.84 A, 1927 W / 61.83 A, 1894 W / 83.30 A) - but on 1050 KV the 1903 W is the HQ 1045-3 100% row and the 83.6 A the HQ 9050-3 one (83.61 A), two different runs. The current is also truncated on three blocks (41, 83, 83.6) and rounded on the fourth (61.83 printed as 62). Four source facts recorded rather than repaired. First, five cells in the report are printed wrong and each is left unpublished rather than reconstructed: the 400 KV HQ1050-3 60% and 70% efficiencies and the 400 KV T10.5X5-3 60% one all print "0.0" where the row's own thrust and power give 4.3, 3.8 and 4.5 g/W, so efficiency_gw is empty on those three rows; and the 900 KV HQ1050-3 60% current prints "408.08" A on a row whose 582 W at 24 V is about 24 A, so current_a is empty there. Second, the 900 KV T10.5X5-3 6 S power column prints 14, 16 and 19 W at 60/70/80% against the ~573, ~843 and ~1161 W its own voltage and current give; the power column is not part of our schema, so those three rows carry every other figure and the defect is recorded here. Third, printed power is voltage x current within the half-unit band the integer Voltage column allows on 179 of the 180 rows; the one exception is the 900 KV HQ1050-3 70% row, whose 840 W over 35.77 A implies 23.48 V against a printed 24, missing the band by 0.02 V. The voltage x (current + k) offset check is not runnable on this sheet for the same reason as on the V3120: with Voltage and Power both printed as whole numbers, k = 0 and k = 1 A are equally consistent with every row. Fourth, the drawing writes three of its dimensions with a comma decimal separator (O19,00, O37,20, and 51,10) and one with a dot (17.5) on the same sheet, exactly as the V3120's does. Mount is left unpublished for the same reason as on the V3120, V2208, V2306 V3 and V2207 V3: the drawing calls out "O19,00" on a leader pointing at the bolt circle with "4*M3" beside it, a 19 mm bolt-circle diameter, not the 19x19 square the mount column holds. This sheet also dates the report template that the V3120 entry called a 2026 one: its images are dated 20231129 and carry the identical column set - ten throttle points in 10% steps, a Torque (N*m) column and an Operating Temperature column printing "/" on every block, with Voltage and Power rounded to whole numbers - so that template predates the 2024 V-series sheets rather than succeeding them, and what selects it is the big-prop V31xx line, not the date. The two sheets differ in one field: where the V3120 block prints "Rated Power" (a mid-throttle figure), this one prints "Max. Power (10s)", and the lead is 18AWG 250mm against the V3120's 16AWG. Propeller names are as this sheet prints them (T8.5X5-3, HQ9050-3, T9.5X5-3, HQ1045-3, HQ1050-3, T10.5X5-3), with the brand prefixed. weight_g is the first-listed winding's Weight (Incl. Cable) from the Specifications blocks, 113.4 g at 400 KV (113.3 / 113.1 / 112.7 g at 640 / 900 / 1050 KV), named beside it; re-read 2026-10-20. The page used to show 113.1 g, the 900 KV figure, with no winding named (owner 2026-10-20).
