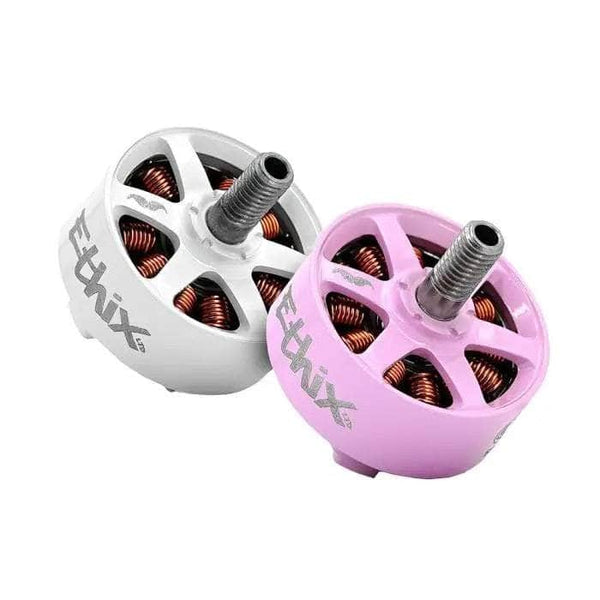

TBS Ethix Mr Steele Silk V5 2307
| Stator | 2307 |
|---|---|
| KV options | 1750 |
| Weight | 36.5 g |
| Max cells | 6S |
| Dimensions | Ø28.6x18.2 mm |
| Mount | 16x16mm (M3) |
| Winding resistance | 64 mOhm |
| Price (approx.) | 33.99 USD |
At 36.5 g it is right at the class average across the 3 2307-class motors in our database (avg 35.9 g).
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| Gemfan Long Range 5126-2 Durable 1.5mm T-Mount | 5.1x2.7 | 2 | 2.6 g |
| HQProp DP 5.1x2.5x3 | 5.1x2.5 | 3 | 3.1 g |
| HQProp Juicy J37 | 4.9x3.7 | 3 | 3.4 g |
| HQProp Juicy J40 | 5.1x4.0 | 3 | 3.4 g |
| Gemfan 4935 Sbang 3-Blade | 4.9x3.5 | 3 | 3.45 g |
Where this data comes from
Team BlackSheep's own product page for the Silk V5 (Web Archive copy of 2023-02-04) prints 23mm*7mm, 1750kv, 36.5 g with wires, 6S, 64 mOhm, Base Mounting Pattern 16x16mm with M3 thread ("16x16(only)" in its V5 highlights), Motor Overall Dimensions φ28.6mm*18.2mm. Its "Shaft Diameter 4mm" is the inner shaft of a 2307 (prop thread not printed), so shaft stays empty. Gallery is product photos only: no bench sheet.
