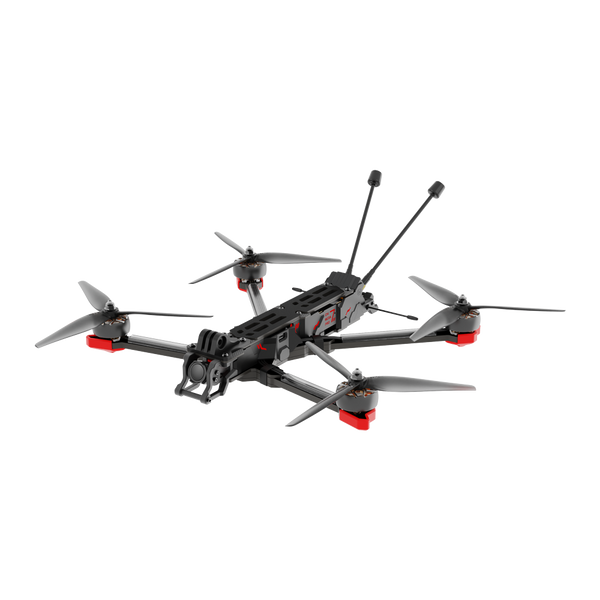

iFlight Chimera7 Pro V2
At 695 g dry the Chimera7 Pro V2 is 1034-1400 g ready to fly on the 6 matching 6S packs listed below (2000-4500 mAh): the pack is 33-50% of all-up weight.
| Class | long range |
|---|---|
| Wheelbase | 327 mm |
| Weight (no battery) | 695 g |
| Prop size | 7.5 " |
| Prop mount | M5 |
| Motors | iFlight XING2 2809 1250KV |
| VTX system | DJI O3 (O4 Pro variant available) |
| Flight controller | BLITZ F722 Flight Controller |
| Manufacturer flight time | up to 30 hover (21700 8000mAh) min |
What battery does the Chimera7 Pro V2 use?
| Cells | 6S |
|---|---|
| Capacity | 8000 mAh |
| Recommended range | 2000-4500 LiPo or 21700 Li-ion 6S1P-6S2P mAh |
| Connector | XT60 |
| Chemistry | LiPo / Li-ion |
Matching packs from our database
All-up weight is this quad's 695 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| Lumenier CineLifter - AS150 4500mAh 6S | 4500 | 120C | 705.0 g | 1400 g | $2.03 |
| Lumenier CineLifter 3500mAh 6S | 3500 | 120C | 580.0 g | 1275 g | $2.0 |
| Auline 3300mAh 6S | 3300 | 45C | 430.0 g | 1125 g | $1.02 |
| Lumenier CineLifter 2900mAh 6S | 2900 | 120C | 485.0 g | 1180 g | $2.18 |
| RDQ RDQ Series 2800mAh 6S | 2800 | 100C | 400.0 g | 1095 g | $1.37 |
| CNHL Black Series 2000mAh 6S | 2000 | 100C | 339.0 g | 1034 g | $1.28 |
Chimera7 Pro V2 flight time
The Chimera7 Pro V2 flies ≈ 8.0-18.0 min on the 6 pack capacities listed above at our 12 A cruise-current estimate, with 80% of a pack used: 2000 mAh ≈ 8.0 min, 2800 mAh ≈ 11.2 min, 2900 mAh ≈ 11.6 min, 3300 mAh ≈ 13.2 min, 3500 mAh ≈ 14.0 min, 4500 mAh ≈ 18.0 min.
Where this data comes from
HD version 695g; O4 Pro 725g. Wheelbase 327mm.
