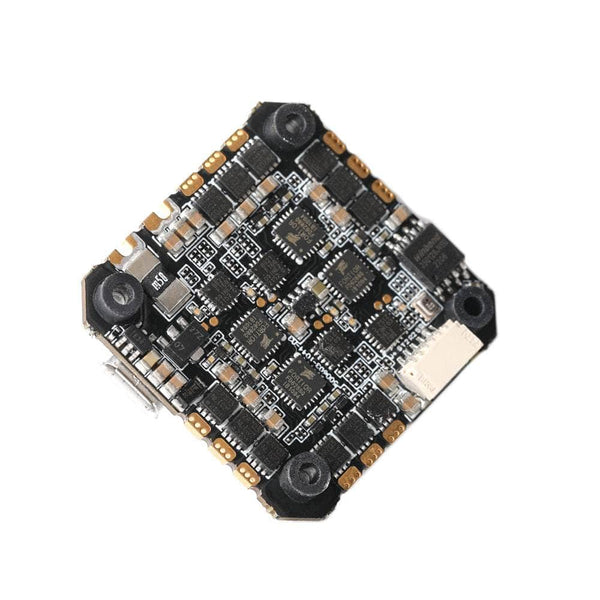

T-Motor F7 AIO Whoop/Toothpick 45A 8Bit 4in1 ESC
Listed as: T-Motor F7 3-6S AIO Whoop/Toothpick w/ 45A 8Bit 4in1 ESC
| Type | AIO |
|---|---|
| MCU | F722 |
| Gyro | MPU6500 |
| ESC current | 45 A |
| Mounting standard | 25.5x25.5 |
| Hole spacing (measured) | 25.5x25.5mm |
| Cells | 3-6S |
| BEC output | 5V/1.5A |
| ESC firmware | BLS\Bluejay |
| Weight | 10 g |
| Price (approx.) | 148.99 USD |
Where this data comes from
weight_g is T-Motor's own figure for this one-board AIO, read 2026-10-20: the maker's F7 45A AIO page carries a SPECIFICATIONS image that prints "WEIGHT 10g" for the F7 6S AIO in both its builds ("CURRENT 35A/45A", "PEAK CURRENT 40A/50A"), so one figure for the 45A and the 35A alike, as the maker prints it. The same image agrees with every other field here: "MCU STM32F722", "GYROSCOPE MPU6500", "BEC 5V 1.5A", "INPUT VOLTAGE 3-6S", "MOUNTING HOLE 25.5*25.5/Φ3mm", "FIRMWARE BLS"; it also prints "SIZE 39*39mm"
