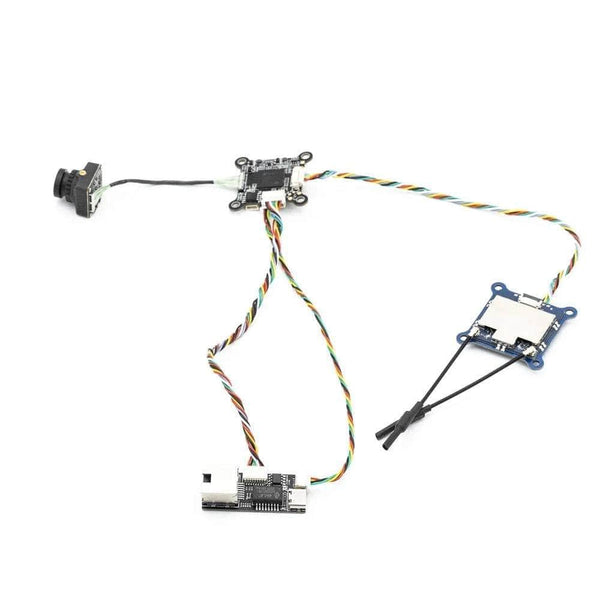

EMAX Wyvern Link Alpha V1 OpenIPC 800mW
Listed as: EMAX Wyvern Link (Alpha) V1 OpenIPC - 800mW
| System | Digital HD (OpenIPC) |
|---|---|
| Max power | 800 mW |
| Mounting | 30.5x30.5mm |
| Price (approx.) | 107.99 USD |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Cited and extended 2026-09-24 against EMAX's own catalogue. EMAX's own Wyvern Link comparison table, published as a content image on the brand's catalogue page for this part (www.emax-usa.com, openipc-detail-dark.html) and read at full resolution. It is a screenshot of a spreadsheet - the cell cursor and a spell-check underline under its 'Openipc' heading are both in the picture - and it has two product columns, headed '100mw' and '800mw', plus a third for the WIFI module. Its rows: Camera sensor imx415; Video specifications 1280x720; Video FPS 120fps; input voltage 100mw 5v in / 800mw 2-6s in; Lens specifications 100mw 14mm / 800mw 19mm; Weight 100mw 13.76g / 800mw 28.85g; Hole spacing 100mw 25.5mm / 800mw 30.5mm / WIFI modular 35.0mm; Aperture 3.0mm throughout; Receiver input xt30 2-6s / type-c 5v in; Receiver Weight 100mw 51.69g / 2000mw 44.5g. mount_mm is that table's 'Hole spacing 800mw 30.5mm', read as the 30.5x30.5mm square those holes describe. The weight_g this page already carried, 28.85 g, is the table's own 800 mW figure, so the retail listing and the manufacturer agree on it. input_voltage stays EMPTY deliberately: what EMAX states for this unit is '800mw 2-6s in', a cell count and not a voltage, and this column holds volts - converting 2-6S into a 7.4-25.2V range would put a computed figure in a column of stated ones, which is the same mistake as writing an EIRP dBm ceiling into max_power_mw. The cell range is here in the note instead. EMAX states no frequency range, channel count or antenna connector for the Wyvern Link line anywhere it publishes. Weight withheld 2026-10-20 (223rd burst): the owner's ruling of 2026-10-20 makes a VTX kit's weight_g the camera-excluded figure, and the box holds '1x FPV Camera', and EMAX's table weighs each column (28.85 g here) with the camera's sensor and lens rows in the same column. Nothing the maker prints says whether the camera is in that figure, so weight_g stays empty until it does.
