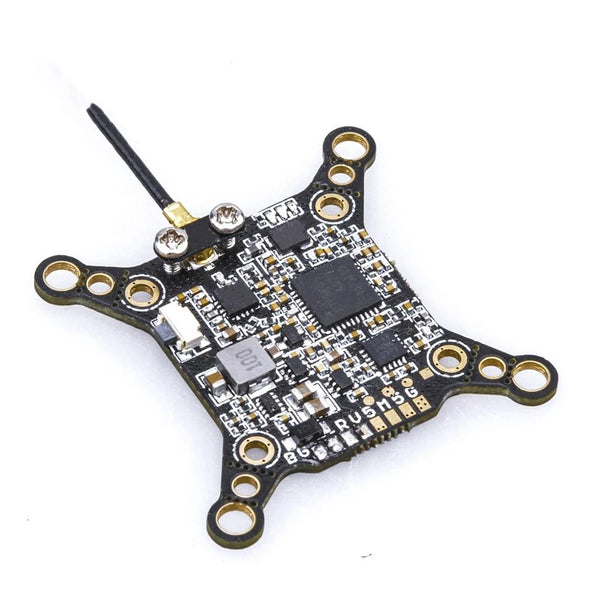

Flywoo GOKU HM600 20x20/25x25/30x30 25-600mW 5.8GHz
Listed as: Flywoo GOKU HM600 20x20/25x25/30x30 25-600mW 5.8GHz - U.FL
Of the 81 other 5.8 GHz analog video transmitters in our database, 23 have a lower maximum power than the GOKU HM600 20x20/25x25/30x30 25-600mW 5.8GHz (600 mW, 28 dBm), 6 the same and 52 a higher one; the class median is 800 mW.
Flywoo's own Betaflight VTX table is on this page: 5 bands of 8 channels, 5645–5945 MHz, 5 power levels, IRC Tramp. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 600 mW |
| Frequency range | 5645-5945 MHz |
| Band | 5.8 GHz |
| Mounting | 20x20mm / 25x25mm / 30x30mm |
| Antenna connector | U.FL |
| Weight | 3.0 g |
| Price (approx.) | 19.99 USD |
Flywoo GOKU HM600 20x20/25x25/30x30 25-600mW 5.8GHz VTX table for Betaflight
The band and channel frequencies and power levels as Flywoo publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BAND_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BAND_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BAND_E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F AIRWAVE | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 25), 50 (value 100), 100 (value 200), 200 (value 400), MAX (value 600).
vtxtable bands 5
vtxtable channels 8
vtxtable band 1 BAND_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BAND_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BAND_E E CUSTOM 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 AIRWAVE F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable powerlevels 5
vtxtable powervalues 25 100 200 400 600
vtxtable powerlabels 25 50 100 200 MAX
saveSource: https://cdn.shopify.com/s/files/1/0010/7410/2324/files/FLYWOO_GOKU_HM600_VTXTABLE.json?v=1613716642 — Flywoo's own Betaflight VTX config file FLYWOO_GOKU_HM600_VTXTABLE.json, linked from the GOKU HM850 product page on flywoo.net (https://flywoo.net/products/goku-hm600-5-8ghz-ufl-850mw-vtx-w-agc-microphone). Band B channel 5 reads 5999 MHz in Flywoo's file but 5809 in Flywoo's own GOKU HM850 instruction sheet (https://cdn.shopify.com/s/files/1/0010/7410/2324/files/HM850.jpg?v=1627960533, 'Frequency table', band b CH5), whose grid is the file's grid cell for cell otherwise; the sheet is the self-consistent document (band B is a 19 MHz ladder, 5790 -> 5809 -> 5828), so 5809 is stored. Flywoo's downloadable file still carries 5999. Power values 25/100/200/400/600 carry the labels 25/50/100/200/MAX, as in the file.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Every manufacturer table in the database, with one archive of all the files: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
frequency_range is the edges of Flywoo's own HM600 Betaflight table (FLYWOO_GOKU_HM600_VTXTABLE.json, bands A/B/E/F/R, 5645-5945 MHz with band B CH5 read as 5809 per Flywoo's HM850 sheet, which Flywoo says shares this table). The RaceDayQuads listing prints 'Raceband: 5362-5945 MHZ' beside '5 bands 37 channels'; 5362 is in none of those five bands, so the retailer's range is not used. channels is left empty: the listing's 37 is under the 40 slots (39 different frequencies) of the maker's table, and Flywoo prints no channel count for the HM600 itself.
