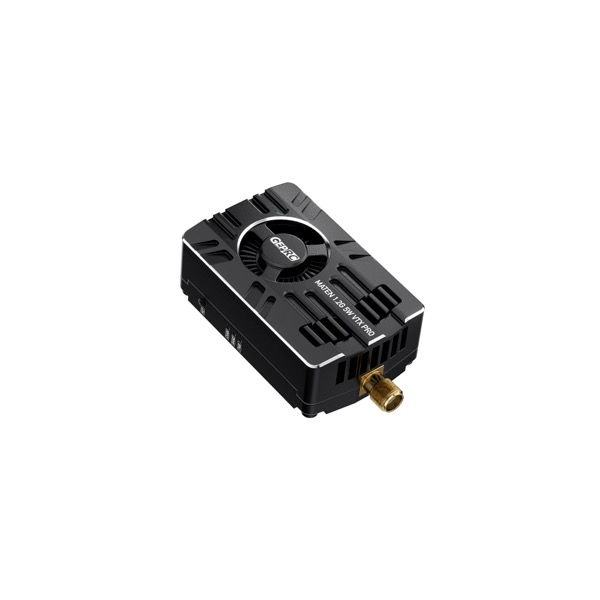

GEPRC MATEN 1.2G 5W VTX PRO
Of the 10 other 1.2/1.3 GHz analog video transmitters in our database, 10 have a lower maximum power than the MATEN 1.2G 5W VTX PRO (5000 mW, 37 dBm); the class median is 2000 mW. The MATEN 1.2G 5W VTX PRO steps through 25 / 400 / 800 / 5000 mW, which is 14 / 26 / 29 / 37 dBm: the top level is 23 dB above the lowest, about 14.1x the free-space range on the same antennas.
GEPRC's own Betaflight VTX table is on this page: 2 bands of 8 channels, 1080–1360 MHz, 4 power levels, IRC Tramp. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 5000 mW |
| Power levels | 25 / 400 / 800 / 5000 mW |
| Frequency range | 1080-1360 MHz |
| Band | 1.2/1.3 GHz |
| Input voltage | 7-36V (2-8S) |
| Mounting | 20x20mm M2 / 25.5x25.5mm M2 |
| Channels | 16 |
| Antenna connector | SMA |
| Weight | 48.0 g |
| Price (approx.) | 76.99 USD |
GEPRC MATEN 1.2G 5W VTX PRO VTX table for Betaflight
The band and channel frequencies and power levels as GEPRC publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BAND_A | 1080 | 1120 | 1160 | 1200 | 1240 | 1280 | 1320 | 1360 |
| B BAND_B | 1200 | 1220 | 1240 | 1258 | 1280 | 1300 | 1320 | 1340 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 25), 400 (value 400), 800 (value 800), 5W (value 5000).
vtxtable bands 2
vtxtable channels 8
vtxtable band 1 BAND_A A CUSTOM 1080 1120 1160 1200 1240 1280 1320 1360
vtxtable band 2 BAND_B B CUSTOM 1200 1220 1240 1258 1280 1300 1320 1340
vtxtable powerlevels 4
vtxtable powervalues 25 400 800 5000
vtxtable powerlabels 25 400 800 5W
saveSource: https://geprc.com/wp-content/uploads/2025/09/MATEN-1.2G-5W-VTX-PRO-IRC-Tramp1080-1360M.txt — GEPRC's own CLI dump, the one that matches the shipping part: its A band is the eight frequencies the product page lists for A, and its two bands are the page's 16CH. The earlier dump (2025/07/MATEN-1.2G-5W-VTX-PRO-IRC-Tramp.txt) holds the plan from before the page's 'Frequency range increased to 1080-1360MHz' note - band A 1200-1340 and a B band with one channel used.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Other transmitters in this band, side by side: 1.2-1.3 GHz FPV VTX compared; every manufacturer table in one place: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Read 2026-09-24 off GEPRC's own site, the thirteenth VTX manufacturer catalogue read beside the US retail scrape and the second brand this catalogue carried no transmitter of at all. geprc.com is WooCommerce: /wp-json/wp/v2/product lists the whole catalogue and product_cat=211 ('Electronics', 114 SKUs) holds the transmitters, but the REST API's content field is only the description gallery - the labelled Specifications block is in the product page HTML, so every figure here was read off the page itself. Block lines: 'Output Power: 25mW/400mW/800mW/5000mW/Pit mode', 'Frequency Band: 1080MHz-1360MHz', 'Channels: 16CH', 'Mounting Patterns: 20x20mm(M2)，25.5×25.5mm(M2)', 'Input Voltage: DC7-36V（2-8S Battery）', 'Antenna Connector: SMA', 'Weight: 48g（VTX only）'. The sixteen channels are two named groups of eight - A: 1080/1120/1160/1200/1240/1280/1320/1360 and B: 1200/1220/1240/1258/1280/1300/1320/1340 MHz - so the band edges in frequency_range are the brand's own stated span and not the table's. Also stated: dimension 60x33.2x19.1mm, direct frequency entry supported, IRC Tramp, 5V@600mA output, sh1.25 6pin cable.
