GEPRC MATEN 3.3G 5W VTX PRO

Of the 13 other 3.1-4.0 GHz analog video transmitters in our database, 9 have a lower maximum power than the MATEN 3.3G 5W VTX PRO (5000 mW, 37 dBm), 2 the same and 2 a higher one; the class median is 4000 mW. The MATEN 3.3G 5W VTX PRO steps through 25 / 200 / 1600 / 5000 mW, which is 14 / 23 / 32 / 37 dBm: the top level is 23 dB above the lowest, about 14.1x the free-space range on the same antennas.

GEPRC's own Betaflight VTX table is on this page: 6 bands of 8 channels, 3083–3495 MHz, 4 power levels, IRC Tramp. CLI commands and JSON file.

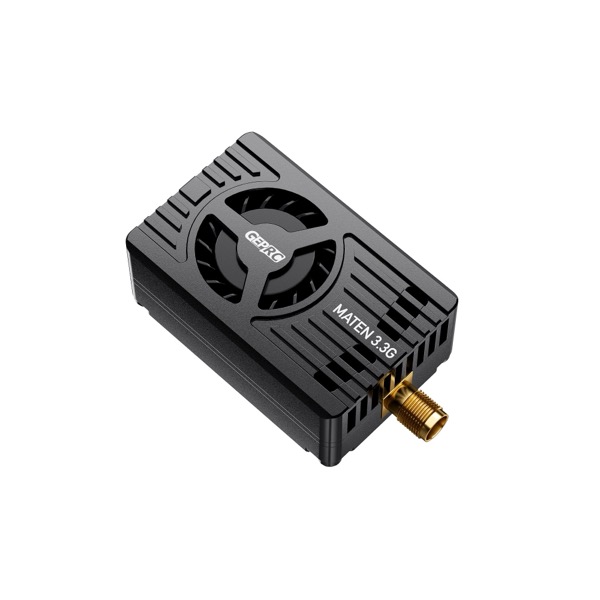

GEPRC MATEN 3.3G 5W VTX PRO
Image: geprc.com
Systemanalog
Max power5000 mW
Power levels25 / 200 / 1600 / 5000 mW
Frequency range3083-3495 MHz
Band3.1-4.0 GHz
Input voltage7-36V (2-8S)
Mounting20x20mm M2
Channels48
Antenna connectorSMA
Weight28.4 g
Price (approx.)79.99 USD

GEPRC MATEN 3.3G 5W VTX PRO VTX table for Betaflight

The band and channel frequencies and power levels as GEPRC publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.

vtxtable.json

Band12345678
A BAND_A30833114314531763207323832693300
B BAND_B32153235325532753295331533353355
C BAND_C31703190321032303250327032903310
D BAND_D33203345337033953420344534703495
E BAND_E33103330335533803405343034553480
F BAND_F33303350337033903410343034503470

Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 25), 200 (value 200), 1W6 (value 1600), MAX (value 5000).

vtxtable bands 6
vtxtable channels 8
vtxtable band 1 BAND_A A CUSTOM 3083 3114 3145 3176 3207 3238 3269 3300
vtxtable band 2 BAND_B B CUSTOM 3215 3235 3255 3275 3295 3315 3335 3355
vtxtable band 3 BAND_C C CUSTOM 3170 3190 3210 3230 3250 3270 3290 3310
vtxtable band 4 BAND_D D CUSTOM 3320 3345 3370 3395 3420 3445 3470 3495
vtxtable band 5 BAND_E E CUSTOM 3310 3330 3355 3380 3405 3430 3455 3480
vtxtable band 6 BAND_F F CUSTOM 3330 3350 3370 3390 3410 3430 3450 3470
vtxtable powerlevels 4
vtxtable powervalues 25 200 1600 5000
vtxtable powerlabels 25 200 1W6 MAX
save

Source: https://geprc.com/wp-content/uploads/2025/11/MATEN-3.3G-5W-VTX-PRO-IRC-Tramp.txt — GEPRC's own CLI dump, and the only one it publishes for this transmitter. Six bands of eight are the product page's 48CH, the lowest and highest frequencies are its 3083-3495MHz, and the four power values are its 25mW/200mW/1600mW/5000mW line. The C, E and F bands overlap A, B and D - that is how GEPRC's table is written.

Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.

Other transmitters in this band, side by side: 3.3 GHz FPV VTX compared; every manufacturer table in one place: VTX table library.

Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.

Where this data comes from

Read 2026-09-24 off GEPRC's own site, the thirteenth VTX manufacturer catalogue read beside the US retail scrape and the second brand this catalogue carried no transmitter of at all. geprc.com is WooCommerce: /wp-json/wp/v2/product lists the whole catalogue and product_cat=211 ('Electronics', 114 SKUs) holds the transmitters, but the REST API's content field is only the description gallery - the labelled Specifications block is in the product page HTML, so every figure here was read off the page itself. Block lines: 'Output Power: 25mW/200mW/1600mW/5000mW/Pit mode', 'Frequency Range: 3083-3495MHz', 'Channels: 48CH', 'Input Voltage: DC7-36V（2-8S Battery）', 'Mounting Pattern: 20x20mm(M2)', 'Antenna Connector: SMA', 'Weight: 28.4g (VTX only)', 'Dimension: 53x30x16.7mm'. This is the one page of the 3.3G line where the brand states the band's real edges rather than the round 3000-3500 - the same six A-F channel groups are printed below it and they run 3083 to 3495 MHz exactly. It is also the lightest and the widest-input of the three, and the only one with a single mounting pattern.
