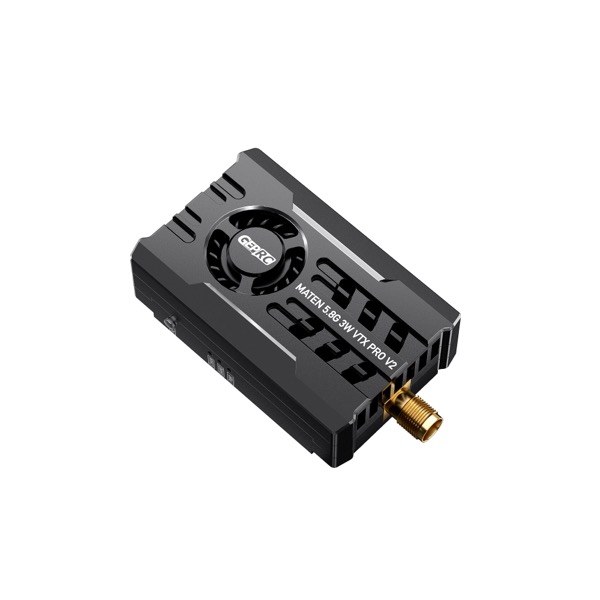

GEPRC MATEN 5.8G 3W VTX PRO
Of the 81 other 5.8 GHz analog video transmitters in our database, 72 have a lower maximum power than the MATEN 5.8G 3W VTX PRO (3000 mW, 35 dBm), 3 the same and 6 a higher one; the class median is 800 mW. The MATEN 5.8G 3W VTX PRO steps through 25 / 200 / 600 / 1600 / 3000 mW, which is 14 / 23 / 28 / 32 / 35 dBm: the top level is 21 dB above the lowest, about 11.0x the free-space range on the same antennas.
GEPRC's own Betaflight VTX table is on this page: 8 bands of 8 channels, 5325–5945 MHz, 5 power levels, IRC Tramp. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 3000 mW |
| Power levels | 25 / 200 / 600 / 1600 / 3000 mW |
| Frequency range | 4990-5945 MHz |
| Band | 5.8 GHz |
| Input voltage | 7-36V (2-8S) |
| Mounting | 20x20mm M2 / 30.5x30.5mm M2 |
| Channels | 80 |
| Antenna connector | MMCX |
| Weight | 21.1 g |
| Price (approx.) | 69.99 USD |
GEPRC MATEN 5.8G 3W VTX PRO VTX table for Betaflight
The band and channel frequencies and power levels as GEPRC publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BOSCAM_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BOSCAM_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BOSCAM_E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F FATSHARK | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| L BAND_L | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
| U BAND_U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| O BAND_O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 25), 200 (value 200), 600 (value 600), 1W6 (value 1600), MAX (value 3000).
vtxtable bands 8
vtxtable channels 8
vtxtable band 1 BOSCAM_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E CUSTOM 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 FATSHARK F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 BAND_L L CUSTOM 5362 5399 5436 5473 5510 5547 5584 5621
vtxtable band 7 BAND_U U CUSTOM 5325 5348 5366 5384 5402 5420 5438 5456
vtxtable band 8 BAND_O O CUSTOM 5474 5492 5510 5528 5546 5564 5582 5600
vtxtable powerlevels 5
vtxtable powervalues 25 200 600 1600 3000
vtxtable powerlabels 25 200 600 1W6 MAX
saveSource: https://geprc.com/wp-content/uploads/2025/07/MATEN-5.8G-3W-VTX-PRO-IRC-Tramp.txt — GEPRC's own CLI dump. Its five power values are the product page's 25mW/200mW/600mW/1600mW/3000mW line, and the page's 80CH is these eight bands plus the two the file publishes commented out - H (5653-5933) and X (4990-5200), each of which is pasted in place of the O band, 10 x 8 = 80. GEPRC sells a V2 of this transmitter with a wider table (104CH); it is a separate page here.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Every manufacturer table in the database, with one archive of all the files: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Read 2026-09-24 off GEPRC's own site, the thirteenth VTX manufacturer catalogue read beside the US retail scrape and the second brand this catalogue carried no transmitter of at all. geprc.com is WooCommerce: /wp-json/wp/v2/product lists the whole catalogue and product_cat=211 ('Electronics', 114 SKUs) holds the transmitters, but the REST API's content field is only the description gallery - the labelled Specifications block is in the product page HTML, so every figure here was read off the page itself. Block lines: 'Output power: 25mW/200mW/600mW/1600mW/3000mW/Pit mode', 'Frequency：4.9G-5.8G', 'Channels: 80CH', 'Input voltage: DC7-36V（2-8S Battery）', 'Mounting Hole Size：20x20mm(M2),30.5×30.5mm(M2)', 'Antenna Connector: MMCX', 'Weight: 21.1g', 'Dimension: 36.3×36.3×15.1mm'. Same shell and mounting as the 2.5W PRO, dual-core amplifier. frequency_range is the brand's own '4.9G-5.8G' written as a span; its 80-channel sibling states the same coverage as 4884-6184MHz, but this page does not, so the figure is not borrowed across pages. Frequency range is the edges GEPRC's own Betaflight CLI dump for this module prints, set 2026-10-17 (owner's call): the product block's "Frequency: 4.9G-5.8G" rounds the X band's 4990 MHz floor to 4.9 and stops at 5.8, while the dump tunes 5325-5945 MHz in its eight active bands (19 of 62 frequencies above 5800) and its notes publish the X (4990-5200) and H (5653-5933) bands commented out. Both edges here are printed in that dump On 2026-10-20 the product URL answered 301 to the MATEN 5.8G 3W VTX PRO V2 page (a separate entry here), so this listing's price could not be re-read; price_usd stays as last read and is not taken from the V2.
