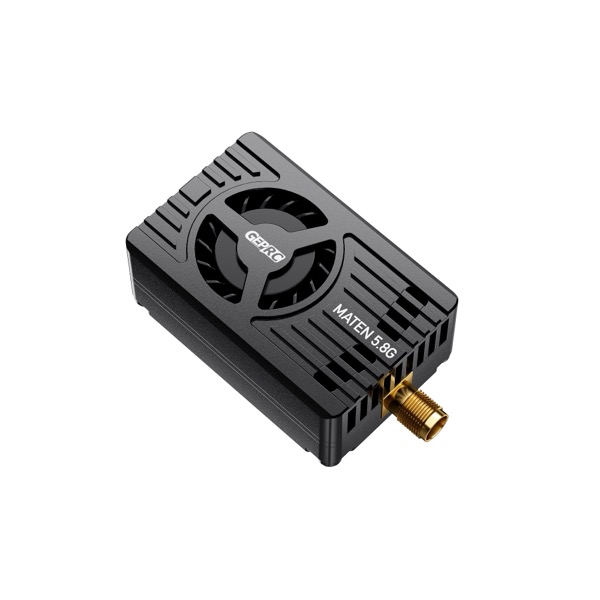

GEPRC MATEN 5.8G 4W VTX PRO
Of the 17 other Wideband 4.9-6.0 GHz analog video transmitters in our database, 6 have a lower maximum power than the MATEN 5.8G 4W VTX PRO (4000 mW, 36 dBm), 2 the same and 9 a higher one; the class median is 4500 mW. The MATEN 5.8G 4W VTX PRO steps through 25 / 200 / 1600 / 4000 mW, which is 14 / 23 / 32 / 36 dBm: the top level is 22 dB above the lowest, about 12.6x the free-space range on the same antennas.
GEPRC's own Betaflight VTX table is on this page: 8 bands of 8 channels, 5325–5945 MHz, 4 power levels, IRC Tramp. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 4000 mW |
| Power levels | 25 / 200 / 1600 / 4000 mW |
| Frequency range | 4800-6200 MHz |
| Band | Wideband 4.9-6.0 GHz |
| Input voltage | 7-36V (2-8S) |
| Mounting | 20x20mm M2 |
| Channels | 104 |
| Antenna connector | SMA |
| Weight | 28.8 g |
| Price (approx.) | 72.99 USD |
GEPRC MATEN 5.8G 4W VTX PRO VTX table for Betaflight
The band and channel frequencies and power levels as GEPRC publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BOSCAM_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BOSCAM_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BOSCAM_E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F FATSHARK | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| L BAND_L | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
| U BAND_U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| O BAND_O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 25), 200 (value 200), 1W6 (value 1600), MAX (value 4000).
vtxtable bands 8
vtxtable channels 8
vtxtable band 1 BOSCAM_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E CUSTOM 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 FATSHARK F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 BAND_L L CUSTOM 5362 5399 5436 5473 5510 5547 5584 5621
vtxtable band 7 BAND_U U CUSTOM 5325 5348 5366 5384 5402 5420 5438 5456
vtxtable band 8 BAND_O O CUSTOM 5474 5492 5510 5528 5546 5564 5582 5600
vtxtable powerlevels 4
vtxtable powervalues 25 200 1600 4000
vtxtable powerlabels 25 200 1W6 MAX
saveSource: https://geprc.com/wp-content/uploads/2025/11/MATEN-5.8G-4W-VTX-PRO-IRC-Tramp.txt — GEPRC's own CLI dump (published twice in the same month, byte-identical). Its four power values are the product page's 25mW/200mW/1600mW/4000mW line, and the page's 104CH is these eight bands plus five published commented out - H, X, J (4884-5099), K (5960-6100) and Z (6002-6184) - each pasted in place of the O band, 13 x 8 = 104. The page's 4800-6200MHz is wider than anything the file prints: its lowest frequency is 4884 and its highest 6184.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Other transmitters in this band, side by side: Wideband 4.9-6.0 GHz FPV VTX compared; every manufacturer table in one place: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Read 2026-09-24 off GEPRC's own site, the thirteenth VTX manufacturer catalogue read beside the US retail scrape and the second brand this catalogue carried no transmitter of at all. geprc.com is WooCommerce: /wp-json/wp/v2/product lists the whole catalogue and product_cat=211 ('Electronics', 114 SKUs) holds the transmitters, but the REST API's content field is only the description gallery - the labelled Specifications block is in the product page HTML, so every figure here was read off the page itself. Block lines: 'Output Power: 25mW/200mW/1600mW/4000mW/Pit mode', 'Frequency: 4800-6200MHz', 'Channels: 104CH', 'Input Voltage: DC7-36V（2-8S Battery）', 'Mounting Hole Size: 20x20mm(M2)', 'Antenna Connector: SMA', 'Weight: 28.8g (VTX only)', 'Dimension: 53.5x29x17.2mm'. The 104-channel siblings state their span as 4884-6184MHz; this page rounds it outward to 4800-6200, and the field takes what this page says rather than the family figure.
