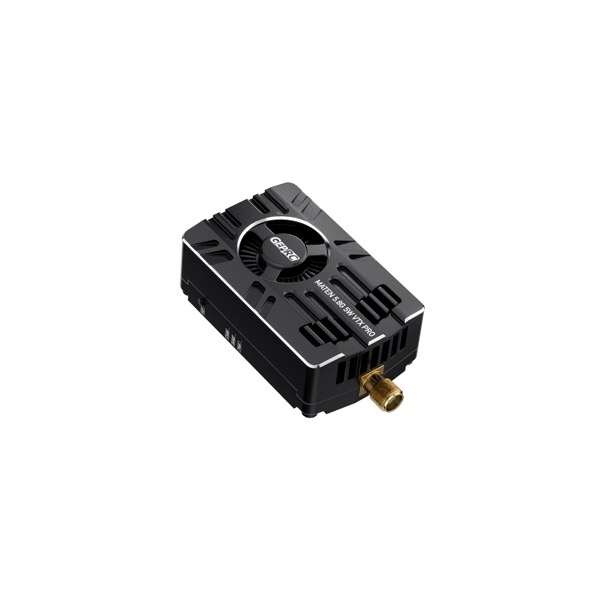

GEPRC MATEN 5.8G 5W VTX PRO
Of the 81 other 5.8 GHz analog video transmitters in our database, 77 have a lower maximum power than the MATEN 5.8G 5W VTX PRO (5000 mW, 37 dBm), 3 the same and 1 a higher one; the class median is 800 mW. The MATEN 5.8G 5W VTX PRO steps through 300 / 600 / 1600 / 3000 / 5000 mW, which is 25 / 28 / 32 / 35 / 37 dBm: the top level is 12 dB above the lowest, about 4.1x the free-space range on the same antennas.
GEPRC's own Betaflight VTX table is on this page: 8 bands of 8 channels, 5325–5945 MHz, 5 power levels, IRC Tramp. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 5000 mW |
| Power levels | 300 / 600 / 1600 / 3000 / 5000 mW |
| Frequency range | 4990-5945 MHz |
| Band | 5.8 GHz |
| Input voltage | 7-36V (2-8S) |
| Mounting | 20x20mm M2 / 25.5x25.5mm M2 |
| Channels | 80 |
| Antenna connector | SMA |
| Weight | 49.5 g |
| Price (approx.) | 89.99 USD |
GEPRC MATEN 5.8G 5W VTX PRO VTX table for Betaflight
The band and channel frequencies and power levels as GEPRC publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BOSCAM_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BOSCAM_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BOSCAM_E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F FATSHARK | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| L BAND_L | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
| U BAND_U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| O BAND_O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
Frequencies in MHz; "—" is an unused slot. Power levels: 300 (value 300), 600 (value 600), 1W6 (value 1600), 3W (value 3000), 5W (value 5000).
vtxtable bands 8
vtxtable channels 8
vtxtable band 1 BOSCAM_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E CUSTOM 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 FATSHARK F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 6 BAND_L L CUSTOM 5362 5399 5436 5473 5510 5547 5584 5621
vtxtable band 7 BAND_U U CUSTOM 5325 5348 5366 5384 5402 5420 5438 5456
vtxtable band 8 BAND_O O CUSTOM 5474 5492 5510 5528 5546 5564 5582 5600
vtxtable powerlevels 5
vtxtable powervalues 300 600 1600 3000 5000
vtxtable powerlabels 300 600 1W6 3W 5W
saveSource: https://geprc.com/wp-content/uploads/2025/07/MATEN-5.8G-5W-VTX-PRO-IRC-Tramp.txt — GEPRC's own CLI dump. Its five power values are the product page's 300mW/600mW/1600mW/3000mW/5000mW line - this transmitter has no 25 mW level - and the page's 80CH is these eight bands plus the two published commented out, H (5653-5933) and X (4990-5200), each pasted in place of the O band.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Every manufacturer table in the database, with one archive of all the files: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Read 2026-09-24 off GEPRC's own site, the thirteenth VTX manufacturer catalogue read beside the US retail scrape and the second brand this catalogue carried no transmitter of at all. geprc.com is WooCommerce: /wp-json/wp/v2/product lists the whole catalogue and product_cat=211 ('Electronics', 114 SKUs) holds the transmitters, but the REST API's content field is only the description gallery - the labelled Specifications block is in the product page HTML, so every figure here was read off the page itself. Block lines: 'Output Power: 300mW/600mW/1600mW/3000mW/5000mW/Pit mode', 'Frequency：4.9-5.8GHz', 'Channels: 80CH', 'Input Voltage: DC7-36V（2-8S Battery）', 'Mounting Hole Size：20x20mm(M2),25.5×25.5mm(M2)', 'Antenna Connector: SMA', 'Weight: 49.5g（VTX only）', 'Dimension: 60×33.2×19.1mm'. The lowest step is 300 mW, not the 25 mW every other MATEN starts at, stated identically in the block and in the feature list ('Five adjustable power levels, up to 5000mW') - this module cannot be turned down to a bench-safe power, which is a fact about the part and not a typo to normalise. Same 60×33.2×19.1mm shell as the 1.2G 5W PRO. Frequency range is the edges GEPRC's own Betaflight CLI dump for this module prints, set 2026-10-17 (owner's call): the product block's "Frequency: 4.9G-5.8G" rounds the X band's 4990 MHz floor to 4.9 and stops at 5.8, while the dump tunes 5325-5945 MHz in its eight active bands (19 of 62 frequencies above 5800) and its notes publish the X (4990-5200) and H (5653-5933) bands commented out. Both edges here are printed in that dump
