RUSHFPV Max Solo X-Band 4.9GHz 2.5W
The Max Solo X-Band 4.9GHz 2.5W steps through 25 / 500 / 1000 / 2500 mW, which is 14 / 27 / 30 / 34 dBm: the top level is 20 dB above the lowest, about 10.0x the free-space range on the same antennas.
RUSHFPV's own Betaflight VTX table is on this page: 1 band of 8 channels, 4990–5200 MHz, 4 power levels, IRC Tramp. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 2500 mW |
| Power levels | 25 / 500 / 1000 / 2500 mW |
| Frequency range | 4990-5200 MHz |
| Band | 4.9 GHz |
| Input voltage | 7-36V DC |
| Channels | 8 |
| Antenna connector | MMCX |
| Weight | 15 g (cable excluded) |
RUSHFPV Max Solo X-Band 4.9GHz 2.5W VTX table for Betaflight
The band and channel frequencies and power levels as RUSHFPV publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BAND_A | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 25), 500 (value 500), 1W (value 1000), 2W5 (value 2500).
vtxtable bands 1
vtxtable channels 8
vtxtable band 1 BAND_A A CUSTOM 4990 5020 5050 5080 5110 5140 5170 5200
vtxtable powerlevels 4
vtxtable powervalues 25 500 1000 2500
vtxtable powerlabels 25 500 1W 2W5
saveSource: https://drive.google.com/file/d/10kHFTK1MQJHF28mgbOxkeXWN_hDbtNM0/view — Copied from the maker's Betaflight file MAX_SOLO_X-BAND_4.9G_VTX.json in the RushFPV VTX Table Drive folder linked from rushfpv.net's Download Center. Power values are milliwatts, the steps the module's own label prints; the file names no control protocol; IRC Tramp is the maker's own spec sheet ('EXTERNAL CONTROL: IRC Tramp' / 'Protocol IRC Tramp', read 2026-10-20, burst 229). One band of eight channels 4990-5200 MHz in 30 MHz steps; ladder 25/500/1000/2500. The case label prints no power steps, so the file is the only maker source for them.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Other transmitters in this band, side by side: 4.9 GHz FPV VTX compared; every manufacturer table in one place: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from

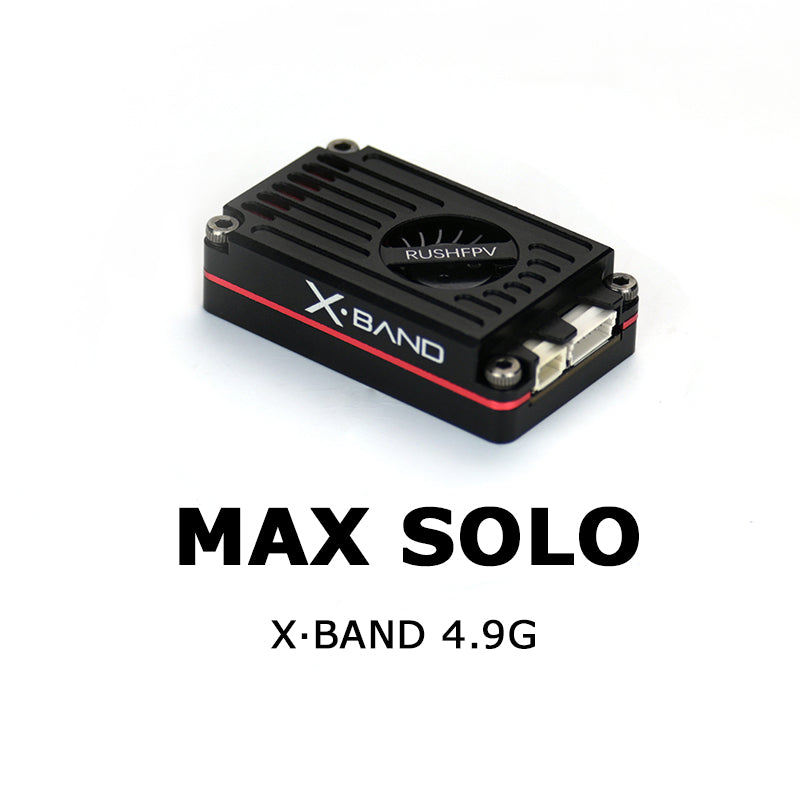

The 4.9 GHz X-Band version of the Max Solo. Its case label reads 'CVBS A/V Transmitter, 7-36V DC-IN / 5V 500mA DC-OUT', MMCX, SH1.0 six-pin, and a separate AUD / 5V / GND microphone header; RushFPV's dimension drawing gives 40 x 24 x 10 mm. The 2.5 W is the manufacturer's own model name. Output above the lowest step is licensed spectrum in most countries; the module's own label carries that reminder. frequency_range, channels, power_levels_mw and weight_g are RushFPV's own 'MAX SOLO VTX [X-BAND] User Manual' (the listing's description image 4.9g_max_solo.jpg, 2031x4535), Specification block: 'CHANNEL: 8CH X-BAND 4990-5020-5050-5080-5110-5140-5170-5200', 'POWER LEVEL: PIT-25mW-500mW-1000mW-2500mW', 'INPUT: DC 7-36V (6S LiPo)', 'ANTENNA CONNECTOR: MMCX 50Ω', 'EXTERNAL CONTROL: IRC Tramp', 'SIZE: H 40mm* W 24mm* D 10.5mm', 'WEIGHT:15g (With out cable)'; its VTX TABLE screenshot matches the stored Betaflight file cell for cell. Read 2026-10-20 (burst 229) at native resolution, fetched through common.UA. This supersedes the earlier line saying the power-steps column stays empty.
