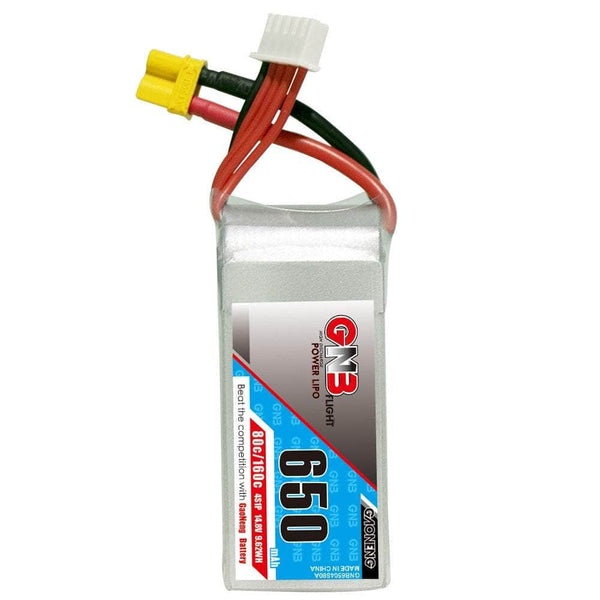

GNB Gaoneng Square Type 650mAh 4S
Listed as: GNB Gaoneng (Square Type) 650mAh 4S
| Chemistry | LiPo |
|---|---|
| Cells | 4S |
| Capacity | 650 mAh |
| C-rating | 80C |
| Energy | 9.6 Wh |
| Weight | 79.0 g |
| Dimensions | 64x28x26mm |
| Connector | XT30 |
| Price (approx.) | 20.49 USD |
| Price per Wh | 2.13 USD/Wh |
12.2 g per 100 mAh - denser than average - more grams per mAh among the 65 4S LiPo packs in our database (11.4). Price per Wh ($2.13) vs the $1.88 average of the 65 4S LiPo packs that publish one.
How much current can it deliver?
Rated 80C on 650 mAh, the GNB Gaoneng Square Type 650mAh 4S is labelled for ≈ 52 A continuous (0.65 Ah × 80). Marketing C-ratings are optimistic, so keep real draw well under that.
Flight time with this battery
With 80% of its 650 mAh used, the GNB Gaoneng Square Type 650mAh 4S gives 0.52 Ah, 31.2 amp-minutes: divide by the average draw in A for the minutes. On the 3 quads it fits, at our cruise-current estimates: Cinelog20 ≈ 5.2 min (6 A), Cinelog30 V3 ≈ 5.2 min (6 A), Flex25 ≈ 4.5 min (7 A).
Fits these quads
- GEPRC Cinelog20 — recommends 4S 660mAh
- GEPRC Cinelog30 V3 — recommends 4S 660mAh
- SpeedyBee Flex25 — recommends 4S 650mAh
