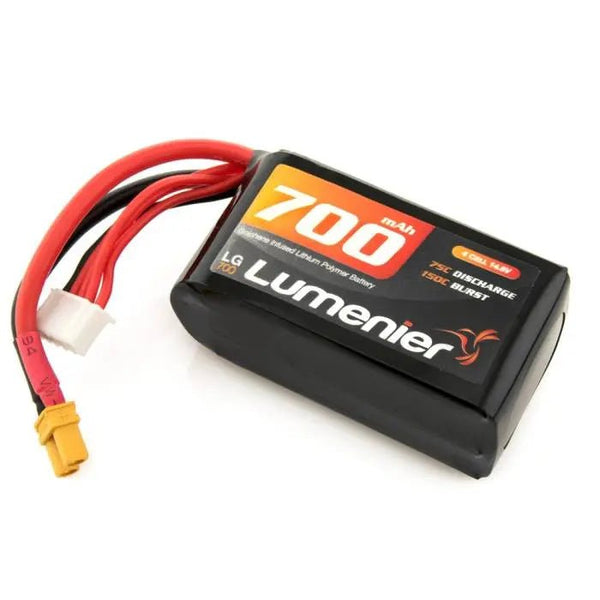

Lumenier Graphene XT-30 700mAh 4S
Listed as: Lumenier Graphene (XT-30) 700mAh 4S
| Chemistry | LiPo |
|---|---|
| Cells | 4S |
| Capacity | 700 mAh |
| C-rating | 75C |
| Energy | 10.4 Wh |
| Weight | 80.0 g |
| Dimensions | 57x30x25mm |
| Connector | XT30 |
| Price (approx.) | 29.99 USD |
| Price per Wh | 2.89 USD/Wh |
11.4 g per 100 mAh - typical for its class among the 65 4S LiPo packs in our database (11.4). Price per Wh ($2.89) vs the $1.88 average of the 65 4S LiPo packs that publish one.
How much current can it deliver?
Rated 75C on 700 mAh, the Lumenier Graphene XT-30 700mAh 4S is labelled for ≈ 52 A continuous (0.7 Ah × 75). Marketing C-ratings are optimistic, so keep real draw well under that.
Flight time with this battery
With 80% of its 700 mAh used, the Lumenier Graphene XT-30 700mAh 4S gives 0.56 Ah, 33.6 amp-minutes: divide by the average draw in A for the minutes. On the 5 quads it fits, at our cruise-current estimates: Crux35 ≈ 8.4 min (4 A), Explorer LR4 V2 ≈ 6.7 min (5 A), Crocodile Baby 4 ≈ 6.7 min (5 A), X-Knight 35 ≈ 5.6 min (6 A), CineRace20 V2 ≈ 8.4 min (4 A).
Fits these quads
- Happymodel Crux35 — recommends 4S 750mAh
- Flywoo Explorer LR4 V2 — recommends 4S 3000mAh
- GEPRC Crocodile Baby 4 — recommends 4S 750mAh
- BetaFPV X-Knight 35 — recommends 4S 750mAh
- Flywoo CineRace20 V2 — recommends 4S 750mAh
