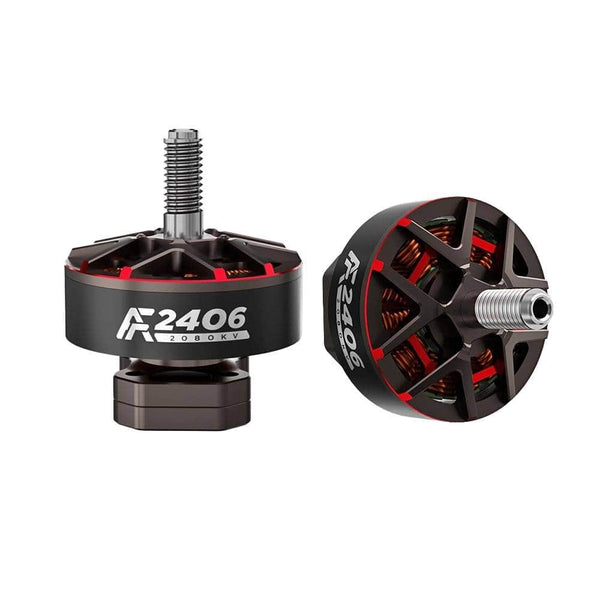

Axisflying AF2406-X Modular

Axisflying AF2406-X Modular
Image: racedayquads.com
Stator2406
KV options1860, 2080
Weight35.1 g
Shaft5mm
Max cells4-6S
Configuration12N14P
Dimensions29.5x32.55 mm
Mount16x16mm (M3)
Winding resistance66 (2080KV) / 78.00 (1860KV) mOhm
Max thrust1929 g
Price (approx.)32.49 USD

At 35.1 g it is right at the class average across the 3 2406-class motors in our database (avg 34.9 g).

Thrust data (Axisflying bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
2080 51466 V2 6S 30 5.54 A 15951 470 g 3.5 g/W
2080 51466 V2 6S 40 8.75 A 18644 663 g 3.2 g/W
2080 51466 V2 6S 50 12.54 A 21063 851 g 2.8 g/W
2080 51466 V2 6S 60 17.74 A 23735 1117 g 2.6 g/W
2080 51466 V2 6S 70 24.91 A 26226 1368 g 2.3 g/W
2080 51466 V2 6S 80 34.13 A 28683 1631 g 2.0 g/W
2080 51466 V2 6S 90 43.01 A 30267 1824 g 1.8 g/W
2080 51466 V2 6S 100 47.44 A 31118 1929 g 1.7 g/W
1860 51466 V2 6S 30 4.17 A 14960 358 g 3.6 g/W
1860 51466 V2 6S 40 6.81 A 17811 530 g 3.3 g/W
1860 51466 V2 6S 50 9.91 A 20308 693 g 2.9 g/W
1860 51466 V2 6S 60 14.13 A 22873 924 g 2.7 g/W
1860 51466 V2 6S 70 20.28 A 25624 1189 g 2.5 g/W
1860 51466 V2 6S 80 28.68 A 28127 1475 g 2.2 g/W
1860 51466 V2 6S 90 36.79 A 29747 1633 g 1.9 g/W
1860 51466 V2 6S 100 40.95 A 30770 1826 g 1.9 g/W

Manufacturer bench figures (Axisflying bench, 6S (23.4-24.0 V), 8 throttle points (30-100%) per KV on the 51466 V2 prop); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

Four Axisflying AF2406-X Modular motors at 1929 g max thrust each give 7716 g: 2:1, the minimum to fly, up to 3858 g all-up; 4:1 (freestyle) up to 1929 g; 8:1 (racing) up to 964.5 g.

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan Hurricane LR 6026-2 6.0x2.6 2 3.0 g
Gemfan Freestyle 6030 6.0x3.0 3 4.45 g
HQProp 5.5X2.2X3 5.5x2.2 3 4.6 g
HQProp 5535 5.5x3.5x3 V2 5.5x3.5 3 4.6 g
HQProp 6x4.3x2 6.0x4.3 2 4.7 g

Where this data comes from

Axisflying's own sheet: 35.10 g with its 20AWG 150mm silicone leads (32 g motor body), 29.5x32.55 mm, 12N14P, 66 mOhm at 2080KV and 78.00 mOhm at 1860KV, rated 4-6S, 5 mm shaft. Idle current at 10 V is 1.70 A (2080KV) / 1.40 A (1860KV); motor internal temperature at full throttle 40 degC (2080KV) / 44 degC (1860KV) at 28 degC ambient. The spec block's Max Power, Max current and Max force are exactly each winding's own 100% row (1109.10 W / 47.44 A / 1929 g at 2080KV, 960.70 W / 40.95 A / 1826 g at 1860KV). The modular base cap is a separate 2.1 g part (23.2x16.8x3 mm, 7075 aluminium) whose PCB is rated 60 A - above the 47.44 A the 2080KV winding pulls at full throttle on the tested prop - and the 32 g body weight excludes it
