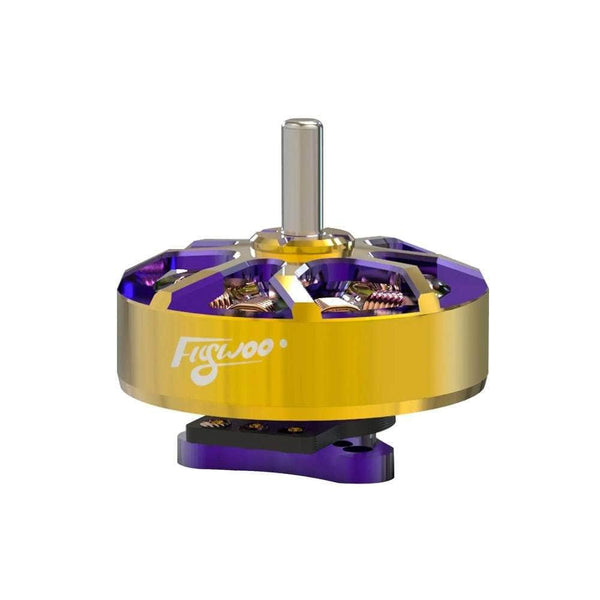

Flywoo ROBO 1303

Stator	1303
KV options	6000
Weight	6.1 g (cable excluded)
Shaft	1.5mm
Max cells	2-4S
Dimensions	Ø16.5x10.1 mm
Mount	9x9mm
Max thrust	355 g
Price (approx.)	16.99 USD

At 6.1 g it is 0.7 g lighter than average across the 4 1303-class motors in our database (avg 6.8 g).

Best props for the ROBO 1303

3"- 4"

Thrust data (Flywoo bench test)

KV	Prop	Battery	Throttle	Current	RPM	Thrust	Efficiency
6000	GF2020R*4	2S	50	2.7 A	—	83 g	4.154 g/W
6000	GF2020R*4	2S	100	10.35 A	—	219 g	2.859 g/W
6000	GF2020R*4	3S	50	5 A	—	144 g	2.595 g/W
6000	GF2020R*4	3S	100	19 A	—	349 g	1.655 g/W
6000	GF D51*4	2S	50	2.9 A	—	86 g	4.007 g/W
6000	GF D51*4	2S	100	11.9 A	—	223 g	2.532 g/W
6000	GF D51*4	3S	50	6.1 A	—	157 g	2.319 g/W
6000	GF D51*4	3S	100	22.5 A	—	355 g	—
6000	GF2540*3	2S	50	4.3 A	—	110 g	3.457 g/W
6000	GF2540*3	2S	100	17.5 A	—	269 g	2.077 g/W
6000	GF3018*2	2S	50	3.6 A	—	114 g	4.279 g/W
6000	GF3018*2	2S	100	17.7 A	—	308 g	2.352 g/W
6000	GF3018*3	2S	50	3.1 A	—	124 g	5.405 g/W
6000	GF3018*3	2S	100	13.4 A	—	303 g	3.056 g/W
6000	GF3028*3	2S	50	3.8 A	—	135 g	4.801 g/W
6000	GF3028*3	2S	100	16 A	—	337 g	2.846 g/W

Manufacturer bench figures (Flywoo bench, 6000 KV on six props at 7.4 V (2S) and, on two of them, 11.1 V (3S), 50% and 100% throttle, with the motor temperature after 3 s at full throttle); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

Four Flywoo ROBO 1303 motors at 355 g max thrust each give 1420 g: 2:1, the minimum to fly, up to 710 g all-up; 4:1 (freestyle) up to 355 g; 8:1 (racing) up to 177.5 g.

RPM & prop speed on this motor

Props in this motor's class

Prop	Size	Blades	Weight
Gemfan 4022F 2-Blade	4.0x2.2	2	0.37 g
Gemfan Hurricane 3018 Durable 1.5mm	3.0x1.8	2	0.75 g
Gemfan Hurricane 3018 Durable 2mm	3.0x1.8	2	0.75 g
HQProp T3x1.5 Durable	3.0x1.5	2	0.78 g
HQProp T3.5x2.2x2	3.5x2.2	2	1.1 g

Where this data comes from

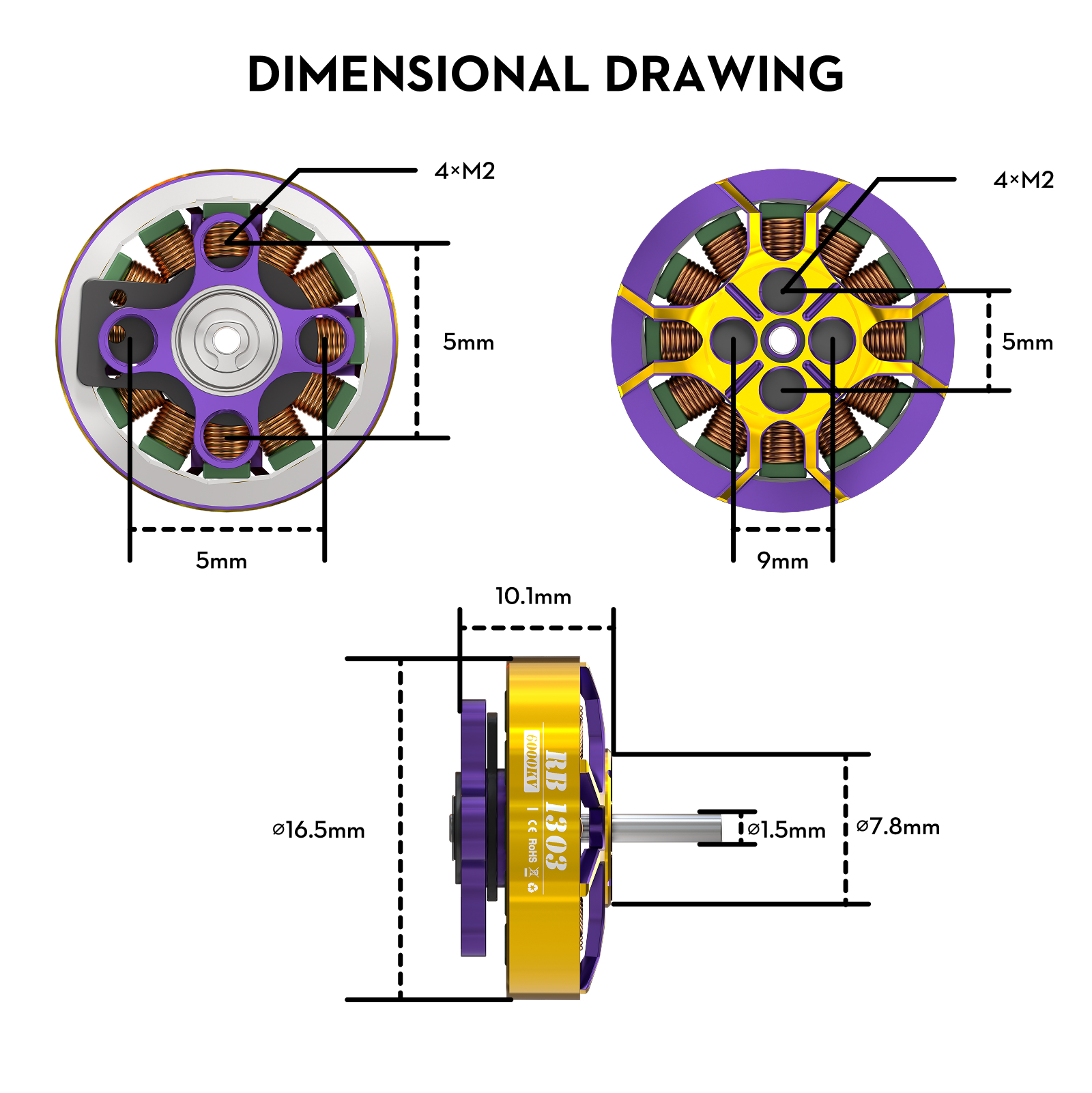

Flywoo's own ROBO 1303 6000KV page (flywoo.net, read 2026-10-23 through the local browser; the description images are on Flywoo's Shopline image host) carries a PRODUCT PARAMETERS bench table (description image 9-en-2.jpeg, 1600x1329): GF2020R*4 and GF D51*4 at 7.4 and 11.1 V, GF2540*3, GF3018*2, GF3018*3 and GF3028*3 at 7.4 V only, 50% and 100% throttle, with no RPM column; the sheet names no KV, and the page sells the 6000 KV winding only. Every row's power is volts times amps; every efficiency is thrust over that power except one, recorded rather than repaired: GF D51*4 at 11.1 V and 100% prints 1.427 g/W, where 355 g over 249.8 W (11.1 V x 22.5 A) is 1.421, so that efficiency cell is left empty while volts, current and thrust stay as printed. Max thrust is that row, 355 g at 22.5 A, marked 85 C after 3 s; the best 2S figure is 337 g on GF3028*3. The parameter block states NSK bearings, 13 x 3 mm stator, 1.5 mm shaft, 2-4S, a 9 x 9 mm mount and 'Weight 6.1g (without wire)', which replaces the retailer's 5.0 g (a maker figure the retailer's is below even without the cable); the maker prints no weight with the cable. The dimensional drawing (8-en.jpeg) gives a Ø16.5 mm bell and a 10.1 mm body length, four M2 holes. The table's props top out at 3 inch, against the retailer's 3-4 inch recommendation, which is left as the listing prints it.
