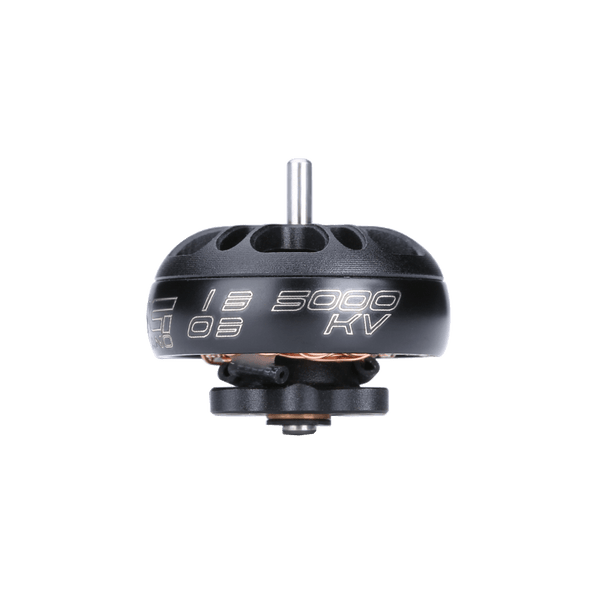

iFlight XING 1303

Stator	1303
KV options	5000
Weight	6.5 g
Shaft	1.5mm
Max cells	3-4S
Configuration	12N14P
Dimensions	Ø17.58x16 mm
Mount	9x9mm (M2)
Winding resistance	386 (5000KV) mOhm
Max thrust	198 g
Price (approx.)	19.49 USD

At 6.5 g it is 0.3 g lighter than average across the 4 1303-class motors in our database (avg 6.8 g).

Thrust data (iFlight bench test)

KV	Prop	Battery	Throttle	Current	RPM	Thrust	Efficiency
5000	2540	4S	50	2.22 A	—	98 g	2.759 g/W
5000	2540	4S	60	3.04 A	—	119 g	2.447 g/W
5000	2540	4S	70	4.12 A	—	139 g	2.109 g/W
5000	2540	4S	80	5.02 A	—	171 g	2.129 g/W
5000	2540	4S	90	5.41 A	—	181 g	2.091 g/W
5000	2540	4S	100	6.13 A	—	198 g	2.019 g/W
5000	2X2X4	4S	50	1.62 A	—	75 g	2.894 g/W
5000	2X2X4	4S	60	2.49 A	—	107 g	2.686 g/W
5000	2X2X4	4S	70	3.07 A	—	117 g	2.382 g/W
5000	2X2X4	4S	80	4.12 A	—	147 g	2.23 g/W
5000	2X2X4	4S	90	5.01 A	—	169 g	2.108 g/W
5000	2X2X4	4S	100	5.39 A	—	180 g	2.087 g/W

Manufacturer bench figures (iFlight test report, 6 throttle points (50-100%) at 16 V (4S) on a 2540 and a 2X2X4 prop, as printed (no prop brand given)); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

Four iFlight XING 1303 motors at 198 g max thrust each give 792 g: 2:1, the minimum to fly, up to 396 g all-up; 4:1 (freestyle) up to 198 g; 8:1 (racing) up to 99 g.

RPM & prop speed on this motor

Props in this motor's class

Prop	Size	Blades	Weight
HQProp 51MMX2 Ultralight	2.0x0.9	2	0.23 g
Gemfan 2216 3-Blade	2.2x1.6	3	0.7 g
Gemfan 2216S PC 3-Blade	2.2x1.6	3	0.8 g
Gemfan Hurricane 2512	2.5x1.2	3	0.8 g
HQProp Durable T2x2x4	2.0x2.0	4	0.8 g

Where this data comes from

iFlight's product page carries a TEST REPORT image (XING-1303-5000KV.png): the spec table, a drawing and a 12-row datasheet. It confirms 5000KV, 6.5 g with wire, Ø17.58x16 mm, 386 mOhm, 3-4S, 9x9 M2, a 1.5 mm shaft protruding 4 mm, 120 mm 26AWG leads and 12N14P (unusual for a 1303-class stator, published as printed), and its 6.13 A / 98.1 W peak is the 2540 prop's 100% row. The sheet prints a flat 16 V and power to the watt, so the efficiency column follows V x A unrounded; all 12 rows pass it. Max thrust is 198 g on the 2540 at 4S.
