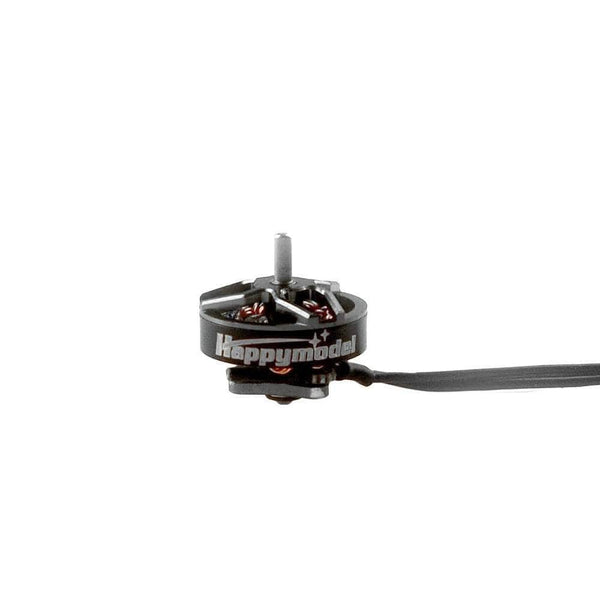

Happymodel RS1102
| Stator | 1102 |
|---|---|
| KV options | 10000 |
| Weight | 2.8 g |
| Shaft | 1.5mm |
| Max cells | 2S |
| Configuration | 9N12P |
| Dimensions | Ø13.5x14 mm |
| Mount (bolt circle, mm) | Ø6.6 (3-M1.4) |
| Price (approx.) | 13.49 USD |
At 2.8 g it is right at the class average across the 3 1102-class motors in our database (avg 2.8 g).
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| weBLEEDfpv HQ Ultralight Whoop 31MM | 1.22x1.0 | 3 | 0.16 g |
| HQProp 40MMX2 Ultralight 40mm Micro/Whoop | 1.6x1.2 | 2 | 0.2 g |
| HQProp 51MMX2 Ultralight | 2.0x0.9 | 2 | 0.23 g |
| Gemfan 35MMS 3-Blade | 1.4x0.96 | 3 | 0.24 g |
| HQProp 40mm Ultralight 3-Blade | 1.6x1.0 | 3 | 0.25 g |
Where this data comes from
Happymodel's RS1102 post (2025-01-08) carries no bench table: its gallery is seven photos and a drawing captioned 'RS1102 KV10000' (uploads/2025/02/RS1102-KV10000.jpg), whose base view prints '3-M1.4均布' (three M1.4 holes, equally spaced) on a Ø6.6 circle - the bolt circle here. The 13500 KV listing (happymodel-rs1102-micro) is not given it: the drawing names the 10000 KV winding only.
