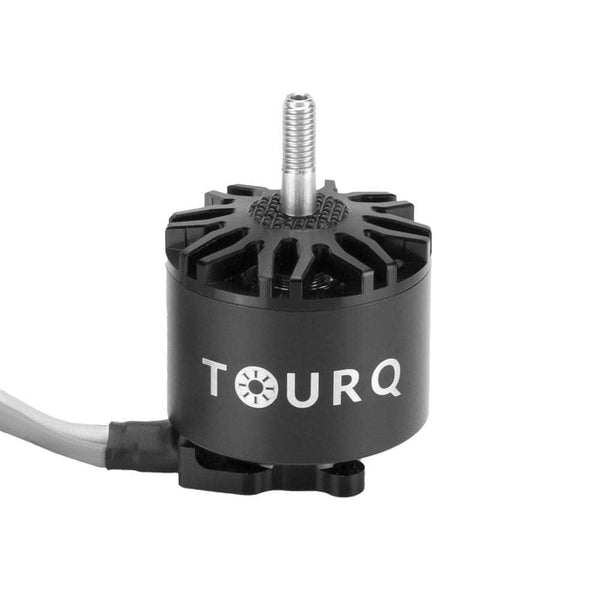

Lumenier TOURQ 3120

Best props for the TOURQ 3120

HQ PROP 10x5x3

Thrust-to-weight with this motor

Four Lumenier TOURQ 3120 motors at 5824 g max thrust each give 23296 g: 2:1, the minimum to fly, up to 11648 g all-up; 4:1 (freestyle) up to 5824 g; 8:1 (racing) up to 2912 g.

RPM & prop speed on this motor

Props in this motor's class

Where this data comes from

Lumenier publishes no bench table for any of its motors; its own Specifications block for the TOURQ 3120 500KV states single figures instead - Max Thrust 5824 g, Max Power 2968 W, Peak Current 59.89 A (60 s), Idle Current 0.87 A at 16 V, Internal Resistance 0.110 Ohm, and up to ~52.2 degC at 100% throttle for 15 s - on one tested prop, an HQ PROP 10x5x3. The pack the 5824 g was measured on is not stated (the block's range is 8-12S and its idle current is quoted at 16 V), and there is no throttle sweep, so these are peaks and not rows. 143 g including wire, 12N14P, 37.1 x 38.9 mm body, 6 mm inner shaft and 5 mm prop shaft, 300 mm 16AWG leads. Its "Base Mounting Pattern: 4x M3 x 9mm" names the screws and no span, so no mount pattern is published for this motor
