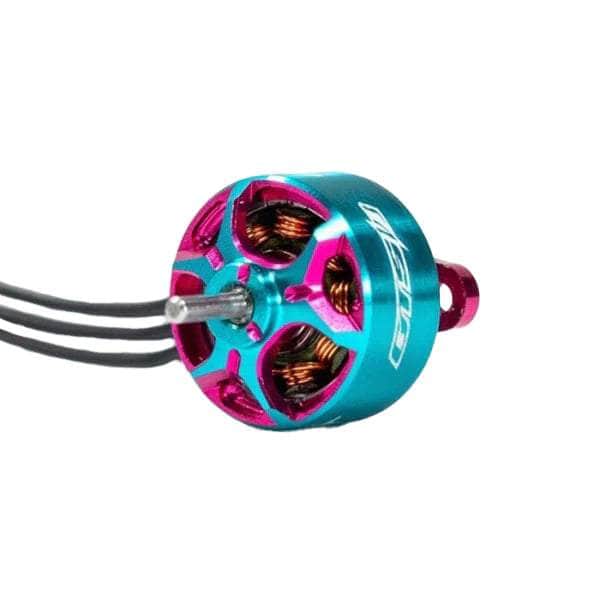

RCINPOWER GTS V3 0703
| Stator | 0703 |
|---|---|
| KV options | 23000, 27000 |
| Weight | 1.85 g |
| Shaft | 1mm |
| Max cells | 1S |
| Configuration | 9N12P |
| Dimensions | 9.6x9.6 mm |
| Winding resistance | 206 / 175 (23000/27000KV) mOhm |
| Max thrust | 49 g |
| Price (approx.) | 15.99 USD |
Thrust data (RCINPOWER bench test)
| KV | Prop | Battery | Throttle | Current | RPM | Thrust | Efficiency |
|---|---|---|---|---|---|---|---|
| 23000 | Gemfan 1219*3 | 1S | 50 | 3.1 A | — | 22 g | 1.69 g/W |
| 23000 | Gemfan 1219*3 | 1S | 100 | 4.7 A | — | 37 g | 1.874 g/W |
| 23000 | Gemfan 1220*4 | 1S | 50 | 3.2 A | — | 23 g | 1.711 g/W |
| 23000 | Gemfan 1220*4 | 1S | 100 | 4.8 A | — | 39 g | 1.935 g/W |
| 23000 | Gemfan 35mm*3 | 1S | 50 | 3.6 A | — | 29 g | 1.918 g/W |
| 23000 | Gemfan 35mm*3 | 1S | 100 | 5.0 A | — | 42 g | 2.0 g/W |
| 23000 | Gemfan 35mm*4 | 1S | 50 | 3.6 A | — | 32 g | 2.116 g/W |
| 23000 | Gemfan 35mm*4 | 1S | 100 | 5.2 A | — | 43 g | 1.969 g/W |
| 23000 | Gemfan 1635*3 | 1S | 50 | 4.3 A | — | 31 g | 1.717 g/W |
| 23000 | Gemfan 1635*3 | 1S | 100 | 5.9 A | — | 42 g | 1.695 g/W |
| 27000 | Gemfan 1219*3 | 1S | 50 | 3.6 A | — | 25 g | 1.653 g/W |
| 27000 | Gemfan 1219*3 | 1S | 100 | 5.4 A | — | 42 g | 1.852 g/W |
| 27000 | Gemfan 1220*4 | 1S | 50 | 3.7 A | — | 26 g | 1.673 g/W |
| 27000 | Gemfan 1220*4 | 1S | 100 | 5.5 A | — | 45 g | 1.948 g/W |
| 27000 | Gemfan 35mm*3 | 1S | 50 | 4.1 A | — | 33 g | 1.916 g/W |
| 27000 | Gemfan 35mm*3 | 1S | 100 | 5.7 A | — | 48 g | 2.005 g/W |
| 27000 | Gemfan 35mm*4 | 1S | 50 | 4.1 A | — | 37 g | 2.149 g/W |
| 27000 | Gemfan 35mm*4 | 1S | 100 | 6.0 A | — | 49 g | 1.944 g/W |
| 27000 | Gemfan 1635*3 | 1S | 50 | 4.9 A | — | 36 g | 1.749 g/W |
| 27000 | Gemfan 1635*3 | 1S | 100 | 6.8 A | — | 49 g | 1.716 g/W |
Manufacturer bench figures (RCinPower bench, 1S (4.2 V), five whoop props per KV, 50% and 100% throttle; 23000/27000 KV; no RPM published); real-world thrust varies with ESC, battery sag and prop condition.
Thrust-to-weight with this motor
Four RCINPOWER GTS V3 0703 motors at 49 g max thrust each give 196 g: 2:1, the minimum to fly, up to 98 g all-up; 4:1 (freestyle) up to 49 g; 8:1 (racing) up to 24.5 g.
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| weBLEEDfpv HQ Ultralight Whoop 31MM | 1.22x1.0 | 3 | 0.16 g |
| HQProp 40MMX2 Ultralight 40mm Micro/Whoop | 1.6x1.2 | 2 | 0.2 g |
| Gemfan 35MMS 3-Blade | 1.4x0.96 | 3 | 0.24 g |
| HQProp 40mm Ultralight 3-Blade | 1.6x1.0 | 3 | 0.25 g |
| HQProp Ultralight 31MMX3 31mm Micro/Whoop | 1.22x1.0 | 3 | 0.27 g |
Where this data comes from
A 1S whoop motor: 9N12P, 7x3 mm stator, 1 mm shaft (1.5 mm inside), 9.6x9.6 mm, 1.85 g with plug. Internal resistance 206/175 mOhm for 23000/27000 KV. Temperature after 3 s at full throttle reaches 67-79 degC. The sheet labels its power and current maxima "3S" but prints 1S figures: they repeat the top row of its own 4.2 V table (24.8 W / 5.9 A at 23000 KV, 28.6 W / 6.8 A at 27000 KV)
