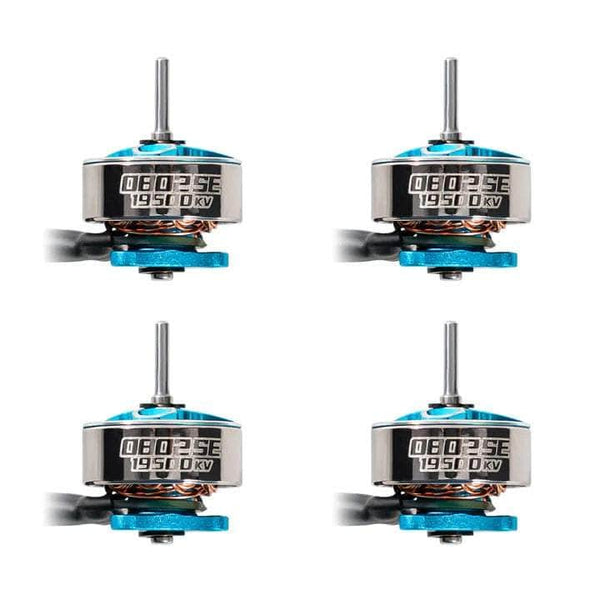

BetaFPV 0802SE 0802

BetaFPV 0802SE 0802
Image: racedayquads.com
Stator0802
KV options19500, 23000
Weight1.83 g
Shaft1mm
Max cells1S
Mount (bolt circle, mm)Ø6.6 (3-M1.4)
Max thrust35.3 g
Price (approx.)45.49 USD

At 1.83 g it is 0.07 g lighter than average across the 8 0802-class motors in our database (avg 1.90 g).

Best props for the 0802SE 0802

31mm 3-blade, 31mm 4-blade, 35mm 3-blade, 40mm 2-blade

Thrust data (BetaFPV bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
19500 GF31mm-3B 1219 1S — 0.5 A — 2.8 g 1.4 g/W
19500 GF31mm-3B 1219 1S — 1.0 A — 7.2 g 1.8 g/W
19500 GF31mm-3B 1219 1S — 1.5 A — 11.6 g 1.93 g/W
19500 GF31mm-3B 1219 1S — 2.0 A — 16.0 g 2.0 g/W
19500 GF31mm-3B 1219 1S — 2.5 A — 20.7 g 2.07 g/W
19500 GF31mm-3B 1219 1S — 3.0 A — 24.2 g 2.02 g/W
19500 GF31mm-3B 1219 1S — 3.1 A — 24.6 g 1.98 g/W
19500 GF35mm-3B 1S — 0.5 A — 4.1 g 2.05 g/W
19500 GF35mm-3B 1S — 1.0 A — 8.8 g 2.2 g/W
19500 GF35mm-3B 1S — 1.5 A — 14.0 g 2.33 g/W
19500 GF35mm-3B 1S — 2.0 A — 18.5 g 2.31 g/W
19500 GF35mm-3B 1S — 2.5 A — 23.0 g 2.3 g/W
19500 GF35mm-3B 1S — 3.0 A — 26.3 g 2.19 g/W
19500 GF35mm-3B 1S — 3.4 A — 30.6 g 2.25 g/W
19500 GF40mm-2B 1610 1S — 0.5 A — 4.4 g 2.2 g/W
19500 GF40mm-2B 1610 1S — 1.0 A — 9.4 g 2.35 g/W
19500 GF40mm-2B 1610 1S — 1.5 A — 14.5 g 2.42 g/W
19500 GF40mm-2B 1610 1S — 2.0 A — 20.0 g 2.5 g/W
19500 GF40mm-2B 1610 1S — 2.5 A — 25.3 g 2.53 g/W
19500 GF40mm-2B 1610 1S — 3.0 A — 29.0 g 2.42 g/W
19500 GF40mm-2B 1610 1S — 3.5 A — 32.5 g 2.31 g/W
19500 GF40mm-2B 1610 1S — 3.7 A — 33.5 g 2.26 g/W
23000 GF31mm-3B 1219 1S — 0.5 A — 3.0 g 1.5 g/W
23000 GF31mm-3B 1219 1S — 1.0 A — 7.2 g 1.8 g/W
23000 GF31mm-3B 1219 1S — 1.5 A — 11.3 g 1.9 g/W
23000 GF31mm-3B 1219 1S — 2.0 A — 17.2 g 2.2 g/W
23000 GF31mm-3B 1219 1S — 2.5 A — 21.8 g 2.2 g/W
23000 GF31mm-3B 1219 1S — 3.0 A — 25.4 g 2.1 g/W
23000 GF31mm-3B 1219 1S — 3.3 A — 27.4 g 2.1 g/W
23000 GF35mm-3B 1S — 0.5 A — 3.9 g 2.0 g/W
23000 GF35mm-3B 1S — 1.0 A — 8.6 g 2.2 g/W
23000 GF35mm-3B 1S — 1.5 A — 12.9 g 2.2 g/W
23000 GF35mm-3B 1S — 2.0 A — 18.4 g 2.3 g/W
23000 GF35mm-3B 1S — 2.5 A — 24.2 g —
23000 GF35mm-3B 1S — 3.0 A — 27.3 g —
23000 GF35mm-3B 1S — 3.5 A — 30.6 g 2.2 g/W
23000 GF35mm-3B 1S — 3.7 A — 32.6 g 2.2 g/W
23000 GF40mm-2B 1610 1S — 0.5 A — 4.8 g 2.4 g/W
23000 GF40mm-2B 1610 1S — 1.0 A — 9.9 g 2.5 g/W
23000 GF40mm-2B 1610 1S — 1.5 A — 14.2 g 2.4 g/W
23000 GF40mm-2B 1610 1S — 2.0 A — 18.8 g 2.4 g/W
23000 GF40mm-2B 1610 1S — 2.5 A — 23.4 g 2.3 g/W
23000 GF40mm-2B 1610 1S — 3.0 A — 28.5 g 2.4 g/W
23000 GF40mm-2B 1610 1S — 3.5 A — 32.2 g 2.3 g/W
23000 GF40mm-2B 1610 1S — 4.0 A — 35.3 g 2.2 g/W

Manufacturer bench figures (BetaFPV bench, 19500 and 23000 KV on three whoop props at 4 V (1S), stepped by current); real-world thrust varies with ESC, battery sag and prop condition.

0802SE 0802 vs other 0802 motors on 1S

The same thrust costs different power on different motors. Each line is one maker's own bench series (1S, its own prop), drawn as grams of thrust per watt against thrust, so a higher line makes that thrust for less battery current. Throttle percent is left out on purpose: it means something different on every maker's rig.

0123010203040 thrust, g g/W
MotorKVPropPeak thrust At 20 g
BetaFPV 0802SE 0802 23000 GF40mm-2B 1610 35 g at 16 W 9 W (2.35 g/W)
GEPRC SPEEDX2 0802 22000 GF1635 4B 44 g at 33 W 15 W (1.31 g/W)
Happymodel EX 0802 Whoop 25000 Gemfan 1219 propeller 31mm 28 g at 16 W 10 W (1.91 g/W)
T-Motor M0802 II 25000 M12199 39 g at 18 W —
Happymodel RS 0802 20000 Gemfan 1610 2-blade propeller 35 g at 14 W 7 W (2.82 g/W)
Happymodel SE 0802 19000 55mm 2-blade propeller 34 g at 16 W 8 W (2.61 g/W)

Power at 20 g is read off each maker's curve, straight-line between its two nearest bench points; 20 g is the highest thrust every motor here reached. Different props and rigs move these curves as much as the motor does, so compare rows on a similar prop. Peak thrust of every 0802 motor: 0802 motors compared. How to read a bench table: reading motor bench tables.

Thrust-to-weight with this motor

Four BetaFPV 0802SE 0802 motors at 35.3 g max thrust each give 141.2 g: 2:1, the minimum to fly, up to 70.6 g all-up; 4:1 (freestyle) up to 35.3 g; 8:1 (racing) up to 17.65 g.

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
weBLEEDfpv HQ Ultralight Whoop 31MM 1.22x1.0 3 0.16 g
HQProp 40MMX2 Ultralight 40mm Micro/Whoop 1.6x1.2 2 0.2 g
Gemfan 35MMS 3-Blade 1.4x0.96 3 0.24 g
HQProp 40mm Ultralight 3-Blade 1.6x1.0 3 0.25 g
HQProp Ultralight 31MMX3 31mm Micro/Whoop 1.22x1.0 3 0.27 g

Where this data comes from

Bench rows are BetaFPV's own "Load Performance" sheet, the fourth description image of the retail listing; betafpv.com's own 0802 product page carries no such table. The image is 619x1200 at the retailer's CDN and no larger copy exists, but every cell is legible. The sheet is headed "0802SE 19500KV / 23000KV", so both windings are this one motor and both are listed - the retail listing sells the 19500 KV alone. Its table steps CURRENT: the Throttle, Speed (RPM) and Coil temp columns are struck through on every row, so no row carries a throttle or an RPM; both halves sit at a flat 4 V (1S). The 23000 KV half prints current to two decimals and efficiency to one. Two of its GF35mm-3B cells are defective and are published empty: the 2.50 A row prints 2.0 g/W where 24.2 g / 10.00 W = 2.42, and the 3.00 A row prints 2.0 g/W where 27.3 g / 12.00 W = 2.28; both thrusts sit on the run's own curve, so the efficiency is the wrong cell. The outline drawing dimensions the bell-end boss Phi1.5 mm and the prop shaft Phi1 mm, which is the 1 mm the listing publishes, and gives a 3-M1.4 EQS pattern on a Phi6.6 mm circle - a bolt circle, not the square mount_mm this schema carries.
