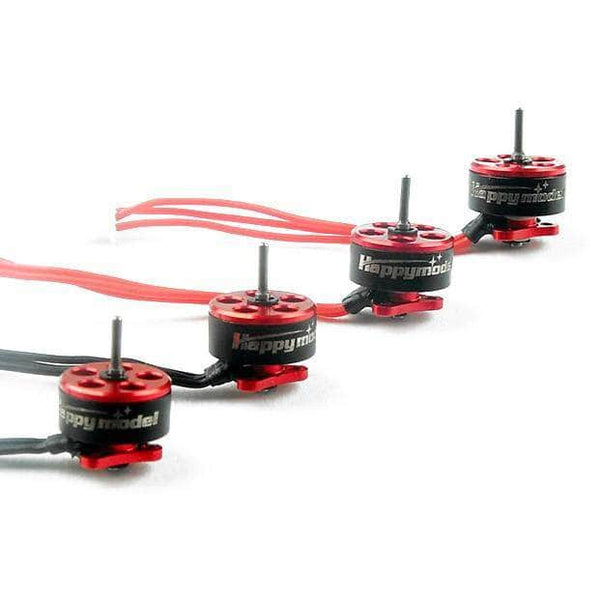

Happymodel SE0802 1-2S Whoop
| Stator | 0802 |
|---|---|
| KV options | 16000 |
| Weight | 1.9 g |
| Shaft | 1mm |
| Max cells | 1-2S |
| Configuration | 9N12P |
| Dimensions | Ø10.5x14.9 mm |
| Max thrust | 43.1 g |
| Price (approx.) | 10.99 USD |
At 1.9 g it is right at the class average across the 8 0802-class motors in our database (avg 1.90 g).
Thrust data (Happymodel bench test)
| KV | Prop | Battery | Throttle | Current | RPM | Thrust | Efficiency |
|---|---|---|---|---|---|---|---|
| 16000 | 31mm 4-blade propeller | 1S | — | 0.96 A | — | 8.2 g | 2.034 g/W |
| 16000 | 31mm 4-blade propeller | 1S | — | 2.05 A | — | 14.0 g | 1.626 g/W |
| 16000 | 31mm 4-blade propeller | 1S | — | 3.18 A | — | 17.4 g | 1.303 g/W |
| 16000 | 31mm 4-blade propeller | 1S | — | 3.54 A | — | 18.1 g | 1.217 g/W |
| 16000 | 40mm 4-blade propeller | 2S | — | 1.1 A | — | 16.2 g | 2.104 g/W |
| 16000 | 40mm 4-blade propeller | 2S | — | 2.0 A | — | 25.3 g | 1.807 g/W |
| 16000 | 40mm 4-blade propeller | 2S | — | 3.0 A | — | 33.1 g | 1.576 g/W |
| 16000 | 40mm 4-blade propeller | 2S | — | 4.0 A | — | 38.5 g | 1.375 g/W |
| 16000 | 40mm 4-blade propeller | 2S | — | 5.0 A | — | 43.1 g | 1.231 g/W |
Manufacturer bench figures (Happymodel bench, 16000 KV on a 31 mm 4-blade at 4.2 V (1S) and a 40 mm 4-blade at 7.0 V (2S); current steps 0.96-5.00 A, throttle not published); real-world thrust varies with ESC, battery sag and prop condition.
Thrust-to-weight with this motor
Four Happymodel SE0802 1-2S Whoop motors at 43.1 g max thrust each give 172.4 g: 2:1, the minimum to fly, up to 86.2 g all-up; 4:1 (freestyle) up to 43.1 g; 8:1 (racing) up to 21.55 g.
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| weBLEEDfpv HQ Ultralight Whoop 31MM | 1.22x1.0 | 3 | 0.16 g |
| HQProp 40MMX2 Ultralight 40mm Micro/Whoop | 1.6x1.2 | 2 | 0.2 g |
| Gemfan 35MMS 3-Blade | 1.4x0.96 | 3 | 0.24 g |
| HQProp 40mm Ultralight 3-Blade | 1.6x1.0 | 3 | 0.25 g |
| HQProp Ultralight 31MMX3 31mm Micro/Whoop | 1.22x1.0 | 3 | 0.27 g |
Where this data comes from
The rows are Happymodel's own bench table, an HTML table in the body of its 2018 SE0802 1-2S product post on happymodel.cn ("Happymodel 0802 Brushless motors benchmark"), so every figure is the source's own text. The table covers four windings (16000/19000/22000/25000 KV); only the winding this page sells is carried here. It steps CURRENT, not throttle, and prints no per-row RPM, so both columns are empty. Every row's printed power equals Voltage x Current and its printed efficiency equals Thrust / Power. Cell counts are not printed per row: 4.2 V, 3.8 V and 3.7 V runs are filed as 1S, the 7.0 V run as 2S. Prop names are the table's ("4-blades propeller" written singular). Happymodel's block for the line: 9N12P, 8x2 mm stator, 1.0 mm shaft, body Ø10.5x14.9 mm, 1-2S, 1.9 g. No-load blocks for 16000 KV: 0.27 A, 31150 RPM at 1.9 V (16394.7 KV) and 0.29 A, 29710 RPM at 2 V (15852 KV); wire length 40 mm. Peak 43.1 g is the 2S run at 5.00 A.
