RCINPOWER GTS-V3 2107 Plus

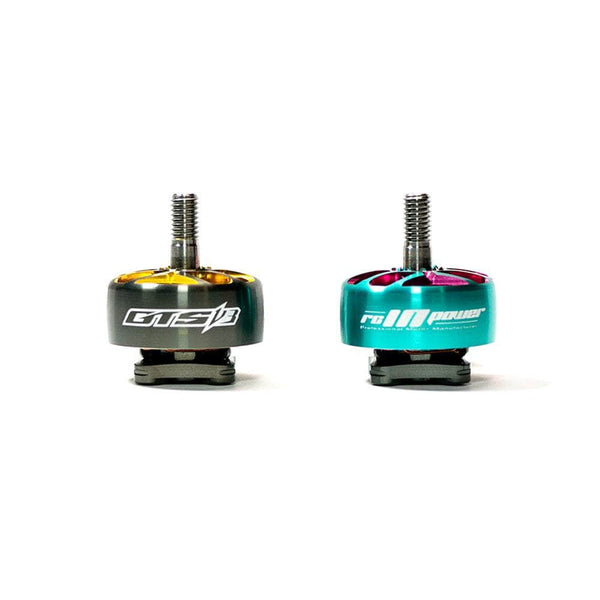

RCINPOWER GTS-V3 2107 Plus
Image: racedayquads.com
Stator2107.5
KV options1980, 2080, 2480
Weight29.0 g
Shaft5mm
Max cells5-6S (1980/2080KV) / 4-5S (2480KV)
Configuration12N14P
DimensionsØ26.29x30.85 mm
Mount16x16mm
Winding resistance55 (1980KV) / 53 (2080KV) / 48 (2480KV) mOhm
Max thrust2269 g
Price (approx.)31.49 USD

Thrust data (RCINPOWER bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
1980 HQ EthiX S4 5S 50 6.0 A — 615 g 4.881 g/W
1980 HQ EthiX S4 5S 100 27.5 A — 1661 g 2.876 g/W
1980 HQ EthiX S4 6S 50 7.8 A — 780 g 4.167 g/W
1980 HQ EthiX S4 6S 100 32.9 A — 1959 g 2.481 g/W
1980 HQ EthiX S5 5S 50 6.8 A — 672 g 4.741 g/W
1980 HQ EthiX S5 5S 100 32.1 A — 1788 g 2.652 g/W
1980 HQ EthiX S5 6S 50 8.9 A — 843 g 3.947 g/W
1980 HQ EthiX S5 6S 100 38.8 A — 2112 g 2.268 g/W
1980 DAL T5147.5 5S 50 5.7 A — 613 g 5.121 g/W
1980 DAL T5147.5 5S 100 27.2 A — 1732 g 3.032 g/W
1980 DAL T5147.5 6S 50 6.3 A — 734 g 4.854 g/W
1980 DAL T5147.5 6S 100 33.2 A — 2065 g 2.592 g/W
1980 GF 5152 5S 50 6.5 A — 627 g 4.593 g/W
1980 GF 5152 5S 100 32.0 A — 1693 g 2.519 g/W
1980 GF 5152 6S 50 8.3 A — 787 g 3.951 g/W
1980 GF 5152 6S 100 38.9 A — 1951 g 2.09 g/W
1980 HQ 5.1*3.1*3R 5S 50 6.8 A — 689 g 4.861 g/W
1980 HQ 5.1*3.1*3R 5S 100 28.5 A — 1813 g 3.029 g/W
1980 HQ 5.1*3.1*3R 6S 50 7.6 A — 804 g 4.408 g/W
1980 HQ 5.1*3.1*3R 6S 100 34.4 A — 2163 g 2.62 g/W
2080 HQ EthiX S4 5S 50 6.5 A — 653 g 4.784 g/W
2080 HQ EthiX S4 5S 100 29.7 A — 1746 g 2.799 g/W
2080 HQ EthiX S4 6S 50 8.3 A — 823 g 4.157 g/W
2080 HQ EthiX S4 6S 100 35.6 A — 2030 g 2.376 g/W
2080 HQ EthiX S5 5S 50 8.0 A — 734 g 4.369 g/W
2080 HQ EthiX S5 5S 100 35.1 A — 1874 g 2.542 g/W
2080 HQ EthiX S5 6S 50 9.5 A — 880 g 3.86 g/W
2080 HQ EthiX S5 6S 100 43.4 A — 2269 g 2.178 g/W
2080 DAL T5147.5 5S 50 6.0 A — 640 g 5.079 g/W
2080 DAL T5147.5 5S 100 29.7 A — 1833 g 2.939 g/W
2080 DAL T5147.5 6S 50 7.4 A — 789 g 4.443 g/W
2080 DAL T5147.5 6S 100 36.6 A — 2126 g 2.42 g/W
2080 GF 5152 5S 50 7.4 A — 675 g 4.344 g/W
2080 GF 5152 5S 100 34.1 A — 1727 g 2.412 g/W
2080 GF 5152 6S 50 8.5 A — 832 g 4.078 g/W
2080 GF 5152 6S 100 42.6 A — 2029 g 1.985 g/W
2080 HQ 5.1*3.1*3R 5S 50 6.8 A — 701 g 4.909 g/W
2080 HQ 5.1*3.1*3R 5S 100 30.7 A — 1878 g 2.913 g/W
2080 HQ 5.1*3.1*3R 6S 50 8.3 A — 856 g 4.297 g/W
2080 HQ 5.1*3.1*3R 6S 100 37.1 A — 2251 g 2.528 g/W
2480 HQ EthiX S4 4S 50 6.3 A — 533 g 5.288 g/W
2480 HQ EthiX S4 4S 100 27.5 A — 1378 g 3.132 g/W
2480 HQ EthiX S4 5S 50 9.3 A — 784 g 4.014 g/W
2480 HQ EthiX S4 5S 100 39.6 A — 1931 g 2.322 g/W
2480 HQ EthiX S5 4S 50 7.0 A — 552 g 4.929 g/W
2480 HQ EthiX S5 4S 100 31.0 A — 1429 g 2.881 g/W
2480 HQ EthiX S5 5S 50 10.8 A — 848 g 3.739 g/W
2480 HQ EthiX S5 5S 100 46.3 A — 2085 g 2.144 g/W
2480 DAL T5147.5 4S 50 5.7 A — 494 g 5.417 g/W
2480 DAL T5147.5 4S 100 26.1 A — 1373 g 3.288 g/W
2480 DAL T5147.5 5S 50 8.7 A — 804 g 4.401 g/W
2480 DAL T5147.5 5S 100 39.4 A — 1992 g 2.408 g/W
2480 GF 5152 4S 50 7.5 A — 534 g 4.45 g/W
2480 GF 5152 4S 100 30.9 A — 1368 g 2.767 g/W
2480 GF 5152 5S 50 10.4 A — 797 g 3.649 g/W
2480 GF 5152 5S 100 46.4 A — 1921 g 1.971 g/W
2480 HQ 5.1*3.1*3R 4S 50 6.3 A — 546 g 5.417 g/W
2480 HQ 5.1*3.1*3R 4S 100 27.9 A — 1442 g 3.23 g/W
2480 HQ 5.1*3.1*3R 5S 50 9.5 A — 844 g 4.231 g/W
2480 HQ 5.1*3.1*3R 5S 100 40.7 A — 2100 g 2.457 g/W

Manufacturer bench figures (RCinPower bench, three KV sheets (1980, 2080, 2480), five props each at two voltages, 50% and 100% throttle; no RPM published); real-world thrust varies with ESC, battery sag and prop condition.

Thrust-to-weight with this motor

Four RCINPOWER GTS-V3 2107 Plus motors at 2269 g max thrust each give 9076 g: 2:1, the minimum to fly, up to 4538 g all-up; 4:1 (freestyle) up to 2269 g; 8:1 (racing) up to 1134.5 g.

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan Long Range 5126-2 Durable 1.5mm T-Mount 5.1x2.7 2 2.6 g
HQProp DP 5.1x2.5x3 5.1x2.5 3 3.1 g
HQProp Juicy J37 4.9x3.7 3 3.4 g
HQProp Juicy J40 5.1x4.0 3 3.4 g
Gemfan 4935 Sbang 3-Blade 4.9x3.5 3 3.45 g

Where this data comes from

RCinPower builds the GTS V3 2107 Plus in 1980, 2080 and 2480 KV and publishes a data sheet for each; all three KV are on our listing. 12N14P, 21x7.5 mm stator, 4 mm hollow inner shaft (the drawing's prop thread is Phi 5), 16x16 mm four-bolt mount, Phi 26.29x30.85 mm, 29 g with 3 cm wire on all three sheets, idle current 0.85 A at 10 V on the 1980 KV and 0.9 A on the other two, internal resistance 55/53/48 mOhm for 1980/2080/2480 KV. The 1980 and 2080 KV blocks rate the motor 5-6S and bench it at 21 V and 24 V; the 2480 KV block rates it 4-5S and benches it at 16 V and 21 V. Four things in the source are reproduced as printed rather than corrected: (1) the two marketing banners on RCinPower's first product image head the motor "1920kv / 1980kv / 2500kv", which contradicts the three data sheets, the family comparison strip on the second image and our retail listing - all of which say 1980/2080/2480, so the banner is the odd one out and nothing here is taken from it; (2) all three blocks label their power and current maxima "5S", but on the 1980 and 2080 KV sheets the row those maxima name is the 24 V (6S) one - only the 2480 KV sheet's 5S label matches its own table; (3) two 21 V rows print 6.8 A beside 141.8 W and 142.8 W under the same heading, i.e. the current column is rounded and the power column is not; (4) the screw size in the mount callout ("4 x M?") is five pixels tall in the only image RCinPower publishes and is not legible, so the mount is recorded as its measured 16x16 mm span without a thread. Where the sheets are complete the spec block's own maxima are the top row of its table, on all three: 934 W / 38.9 A is the 1980 KV GF 5152 24 V full-throttle row, 1042 W / 43.4 A the 2080 KV HQ EthiX S5 24 V row, and 975 W / 46.4 A the 2480 KV GF 5152 21 V row. Temperature after 3 s at full throttle runs 65-85 degC across the three sheets, with the 24 V EthiX S5, GF 5152 and HQ 5.1*3.1*3R runs and the 2480 KV 21 V EthiX S5 and GF 5152 runs flagged HOT
