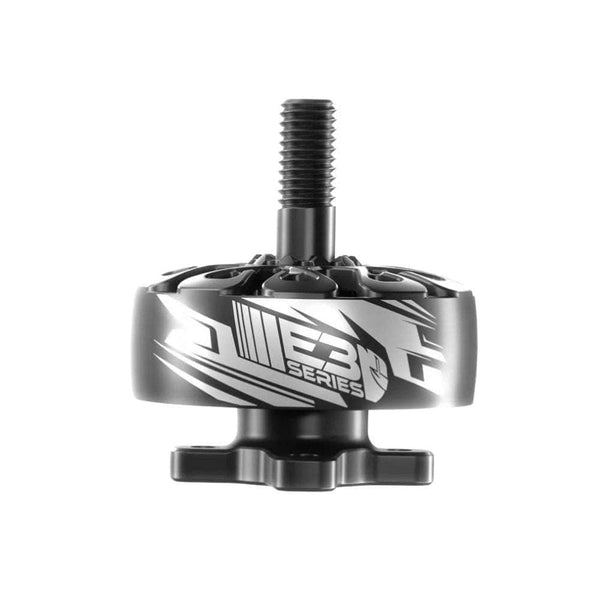

EMAX E3 Series 2306

Stator	2306
KV options	1700, 1900, 2400
Weight	29.4 g (1700KV, cable excluded)
Shaft	M5
Max cells	3-6S (1700/1900KV) / 3-4S (2400KV)
Configuration	12N14P
Dimensions	28.9x31.8 mm
Mount (bolt circle, mm)	Ø16 (4-M3)
Winding resistance	79 (1700KV) / 66 (1900KV) / 47 (2400KV) mOhm
Max thrust	1760 g
Price (approx.)	17.99 USD

At 29.4 g it is 3.3 g lighter than average across the 21 2306-class motors in our database (avg 32.7 g).

Best props for the E3 Series 2306

5"-5.5"

Thrust data (EMAX bench test)

KV	Prop	Battery	Throttle	Current	RPM	Thrust	Efficiency
1700	EMAX AVAN 5026-3	6S	—	1.78 A	11640	200 g	4.46 g/W
1700	EMAX AVAN 5026-3	6S	—	3.51 A	14830	350 g	3.96 g/W
1700	EMAX AVAN 5026-3	6S	—	5.9 A	17870	520 g	3.5 g/W
1700	EMAX AVAN 5026-3	6S	—	9.23 A	20770	700 g	3.01 g/W
1700	EMAX AVAN 5026-3	6S	—	13.2 A	23510	920 g	2.77 g/W
1700	EMAX AVAN 5026-3	6S	—	18.3 A	25830	1150 g	2.49 g/W
1700	EMAX AVAN 5026-3	6S	—	23.7 A	27940	1320 g	2.21 g/W
1700	EMAX AVAN 5026-3	6S	100%	30.5 A	—	1570 g	2.04 g/W
1900	EMAX AVAN 5026-3	6S	—	2.32 A	12880	250 g	4.28 g/W
1900	EMAX AVAN 5026-3	6S	—	4.54 A	16240	420 g	3.67 g/W
1900	EMAX AVAN 5026-3	6S	—	7.76 A	19470	610 g	3.12 g/W
1900	EMAX AVAN 5026-3	6S	—	11.6 A	22490	830 g	2.84 g/W
1900	EMAX AVAN 5026-3	6S	—	16.9 A	25240	1050 g	2.47 g/W
1900	EMAX AVAN 5026-3	6S	—	23.3 A	27540	1260 g	2.15 g/W
1900	EMAX AVAN 5026-3	6S	—	29.7 A	29630	1500 g	2.0 g/W
1900	EMAX AVAN 5026-3	6S	100%	38.8 A	—	1760 g	1.8 g/W
2400	EMAX AVAN 5026-3	4S	—	2.06 A	10510	165 g	4.77 g/W
2400	EMAX AVAN 5026-3	4S	—	4.07 A	13430	286 g	4.18 g/W
2400	EMAX AVAN 5026-3	4S	—	6.62 A	15990	410 g	3.69 g/W
2400	EMAX AVAN 5026-3	4S	—	10.2 A	18590	570 g	3.33 g/W
2400	EMAX AVAN 5026-3	4S	—	14.6 A	20940	734 g	2.99 g/W
2400	EMAX AVAN 5026-3	4S	—	19.9 A	23190	900 g	2.69 g/W
2400	EMAX AVAN 5026-3	4S	—	26.3 A	25140	1060 g	2.4 g/W
2400	EMAX AVAN 5026-3	4S	100%	33.4 A	—	1250 g	2.23 g/W

Manufacturer bench figures (6S, EMAX AVAN 5026-3, 100% throttle, 1900KV; manufacturer payload test, 8 load points per KV; 2400KV tested on 4S); real-world thrust varies with ESC, battery sag and prop condition.

E3 Series 2306 vs other 2306 motors on 6S

The same thrust costs different power on different motors. Each line is one maker's own bench series (6S, its own prop), drawn as grams of thrust per watt against thrust, so a higher line makes that thrust for less battery current. Throttle percent is left out on purpose: it means something different on every maker's rig.

Motor	KV	Prop	Peak thrust	At 1300 g
EMAX E3 Series 2306	1900	EMAX AVAN 5026-3	1760 g at 978 W	614 W (2.12 g/W)
EMAX ECO II Series 2306	1900	DALPROP Cyclone 5050	1990 g at 1154 W	665 W (1.96 g/W)
RDQ Badass 2 2306.5	1900	6045	1927 g at 1128 W	552 W (2.35 g/W)
GEPRC SPEEDX2 2306E	1860	5136	1342 g at 987 W	932 W (1.4 g/W)
T-Motor F40 PRO IV 2306.5	1950	T-Motor T5150 Tri-Blade	1902 g at 1012 W	571 W (2.28 g/W)
T-Motor Pacer V2 P2306	1950	T-Motor T5147 Tri-Blade	1701 g at 950 W	565 W (2.3 g/W)

Power at 1300 g is read off each maker's curve, straight-line between its two nearest bench points; 1300 g is the highest thrust every motor here reached. Different props and rigs move these curves as much as the motor does, so compare rows on a similar prop. Peak thrust of every 2306 motor: 2306 motors compared. How to read a bench table: reading motor bench tables.

Thrust-to-weight with this motor

Four EMAX E3 Series 2306 motors at 1760 g max thrust each give 7040 g: 2:1, the minimum to fly, up to 3520 g all-up; 4:1 (freestyle) up to 1760 g; 8:1 (racing) up to 880 g.

RPM & prop speed on this motor

Props in this motor's class

Prop	Size	Blades	Weight
Gemfan Long Range 5126-2 Durable 1.5mm T-Mount	5.1x2.7	2	2.6 g
HQProp DP 5.1x2.5x3	5.1x2.5	3	3.1 g
HQProp Juicy J40	5.1x4.0	3	3.4 g
HQProp 5.2x3.2x3	5.2x3.2	3	3.5 g
HQProp ETHIX P3.3 5.1x3.3x3	5.1x3.3	3	3.5 g

Where this data comes from

Weight, body, winding, cell rating and resistance from EMAX's own Specifications sheet (ECO-111-20250308---__10.jpg) on the maker's ECO III product page, read at full size 2026-10-20 (EMAX sells the E3 series as ECO III, the same motor): one block per winding, each 12N14P, Φ28.9*31.8mm, 4 mm bearing shaft, 20#AWG 120 mm lead, internal resistance 79 / 66 / 47 mΩ (1700/1900/2400 KV), weight 29.4 g at 1700 and 1900 KV, 29.5 g at 2400 KV, every one printed "(W/O Silicone Wire)"; the retail listing repeats the same figures "without silicone wire". EMAX prints no weight with the cable, so weight_g keeps the maker's first-listed winding's figure, named on the page as cable excluded. No. of cells per winding as printed: 3-6S at 1700 and 1900 KV, 3-4S at 2400 KV. The drawing gives a Φ16 4-M3 bolt circle (mount_bolt_circle_mm) and an M5 prop thread; the listing's "Mounting Pattern: 19x19mm" is not a square pattern on EMAX's drawing, so mount_mm is not published.
