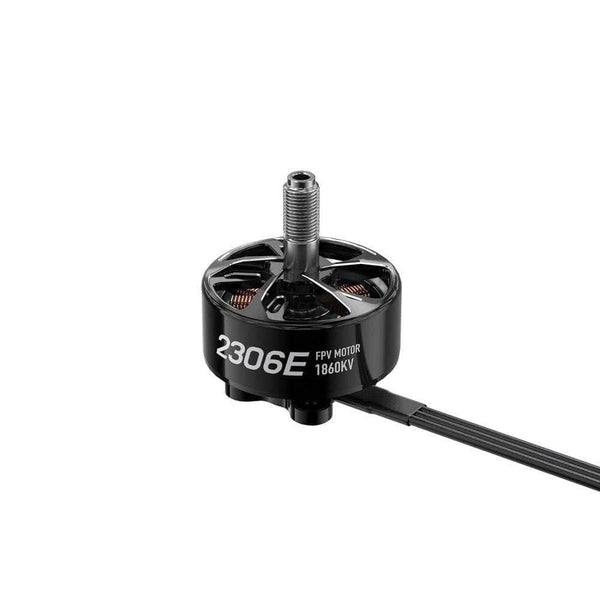

GEPRC SPEEDX2 2306E

Stator	2306
KV options	1860
Weight	33.3 g
Shaft	5mm
Max cells	6S
Configuration	12N14P
Dimensions	Ø29x18.6 mm
Mount	16x16mm
Winding resistance	83.17 mOhm
Max thrust	1342 g
Price (approx.)	19.49 USD

At 33.3 g it is right at the class average across the 21 2306-class motors in our database (avg 32.7 g).

Best props for the SPEEDX2 2306E

4-5inch

Thrust data (GEPRC bench test)

KV	Prop	Battery	Throttle	Current	RPM	Thrust	Efficiency
1860	5131	6S	10	0.42 A	—	36 g	3.36 g/W
1860	5131	6S	20	1.57 A	—	127 g	3.21 g/W
1860	5131	6S	30	3.32 A	—	229 g	2.73 g/W
1860	5131	6S	40	4.91 A	—	325 g	2.63 g/W
1860	5131	6S	50	7.27 A	—	446 g	2.44 g/W
1860	5131	6S	60	11.9 A	—	598 g	2.0 g/W
1860	5131	6S	70	17.17 A	—	761 g	1.77 g/W
1860	5131	6S	80	21.73 A	—	944 g	1.74 g/W
1860	5131	6S	90	28.53 A	—	1169 g	1.64 g/W
1860	5131	6S	100	35.86 A	—	1322 g	1.48 g/W
1860	5136	6S	10	0.46 A	—	40 g	3.45 g/W
1860	5136	6S	20	1.59 A	—	136 g	3.38 g/W
1860	5136	6S	30	3.36 A	—	240 g	2.83 g/W
1860	5136	6S	40	5.34 A	—	350 g	2.6 g/W
1860	5136	6S	50	7.57 A	—	493 g	2.59 g/W
1860	5136	6S	60	12.72 A	—	672 g	2.1 g/W
1860	5136	6S	70	19.22 A	—	840 g	1.74 g/W
1860	5136	6S	80	24.53 A	—	995 g	1.62 g/W
1860	5136	6S	90	30.32 A	—	1173 g	1.55 g/W
1860	5136	6S	100	39.18 A	—	1342 g	1.38 g/W

Manufacturer bench figures (GEPRC bench, 1860 KV at 6S (25.2 V nominal), 10 throttle points (10-100%) on each of two 5in props (5131, 5136)); real-world thrust varies with ESC, battery sag and prop condition.

SPEEDX2 2306E vs other 2306 motors on 6S

The same thrust costs different power on different motors. Each line is one maker's own bench series (6S, its own prop), drawn as grams of thrust per watt against thrust, so a higher line makes that thrust for less battery current. Throttle percent is left out on purpose: it means something different on every maker's rig.

Motor	KV	Prop	Peak thrust	At 1300 g
GEPRC SPEEDX2 2306E	1860	5136	1342 g at 987 W	932 W (1.4 g/W)
EMAX E3 Series 2306	1900	EMAX AVAN 5026-3	1760 g at 978 W	614 W (2.12 g/W)
EMAX ECO II Series 2306	1900	DALPROP Cyclone 5050	1990 g at 1154 W	665 W (1.96 g/W)
RDQ Badass 2 2306.5	1900	6045	1927 g at 1128 W	552 W (2.35 g/W)
T-Motor F40 PRO IV 2306.5	1950	T-Motor T5150 Tri-Blade	1902 g at 1012 W	571 W (2.28 g/W)
T-Motor Pacer V2 P2306	1950	T-Motor T5147 Tri-Blade	1701 g at 950 W	565 W (2.3 g/W)

Power at 1300 g is read off each maker's curve, straight-line between its two nearest bench points; 1300 g is the highest thrust every motor here reached. Different props and rigs move these curves as much as the motor does, so compare rows on a similar prop. Peak thrust of every 2306 motor: 2306 motors compared. How to read a bench table: reading motor bench tables.

Thrust-to-weight with this motor

Four GEPRC SPEEDX2 2306E motors at 1342 g max thrust each give 5368 g: 2:1, the minimum to fly, up to 2684 g all-up; 4:1 (freestyle) up to 1342 g; 8:1 (racing) up to 671 g.

RPM & prop speed on this motor

Props in this motor's class

Prop	Size	Blades	Weight
Gemfan 4022F 2-Blade	4.0x2.2	2	0.37 g
HQProp Durable T4x2.5	4.0x2.5	2	1.45 g
Gemfan Hurricane 4024 Durable	4.0x2.4	2	1.61 g
HQProp Durable 4x2.5	4.0x2.5	2	1.7 g
HQProp Durable T4x2x3	4.0x2.0	3	2.0 g

Where this data comes from

The rows are GEPRC's own bench table, published as an image in the description gallery of its product page on geprc.com - the seventh brand this dataset has read a manufacturer sheet from. The E-series template is one winding over two 5in props, ten throttle points each (10-100% in 10% steps), with columns Type / Prop (inch) / Voltages (V) / Throttle (%) / Current (A) / Thrust (G) / Power (W) / Efficiency (G/W) / Temperature (C). It publishes no per-row RPM, so that column is empty here. **The Voltages column is the nominal 6S pack voltage, 25.2 V, repeated on every row, not a measured per-row figure**: the sheet's own Power column sits progressively below 25.2 x current as throttle rises, which is the pack sagging under load. Printed Efficiency reproduces Thrust / printed Power on every row. Identity with GEPRC's own Specifications block is 1860 KV, 12N14P, a Ø29x18.6 mm body, a 5 mm shaft, 6S and 33.3 g with wire - and the block's own Max Watt (972.7 W) and Peak Current (39.18 A) are the 5136 100% row here to the digit, which is the cross-check. Sheet temperatures: 110.5 C on the 5131 run, 118.4 C on the 5136 run.
