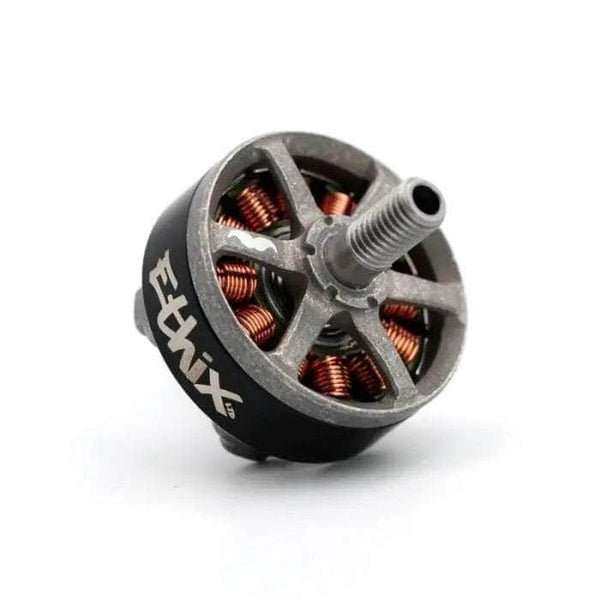

TBS Ethix Mr Steele Stout V3 2306 Legacy
| Stator | 2306 |
|---|---|
| KV options | 1750 |
| Weight | 30.4 g |
| Max cells | 6S |
| Dimensions | Ø27.5x17.2 mm |
| Winding resistance | 98 mOhm |
| Price (approx.) | 24.99 USD |
At 30.4 g it is 2.3 g lighter than average across the 21 2306-class motors in our database (avg 32.7 g).
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| Gemfan Long Range 5126-2 Durable 1.5mm T-Mount | 5.1x2.7 | 2 | 2.6 g |
| HQProp DP 5.1x2.5x3 | 5.1x2.5 | 3 | 3.1 g |
| HQProp Juicy J37 | 4.9x3.7 | 3 | 3.4 g |
| HQProp Juicy J40 | 5.1x4.0 | 3 | 3.4 g |
| Gemfan 4935 Sbang 3-Blade | 4.9x3.5 | 3 | 3.45 g |
Where this data comes from
Team BlackSheep's own product page for the Stout V3 Legacy (Web Archive copy of 2021-10-26) prints 23mm*6mm, 1750kv, 15turn DLRK, 30.4 g with wires, 6S, 98 mOhm, Motor Overall Dimensions φ27.5mm*17.2mm and Base Mounting Pattern 19x19mm; mount_mm stays empty because the V5 page calls its own 16x16 base "(only)", which says the earlier bases carried more than the one pattern this block prints. Gallery is product photos only: no bench sheet.
