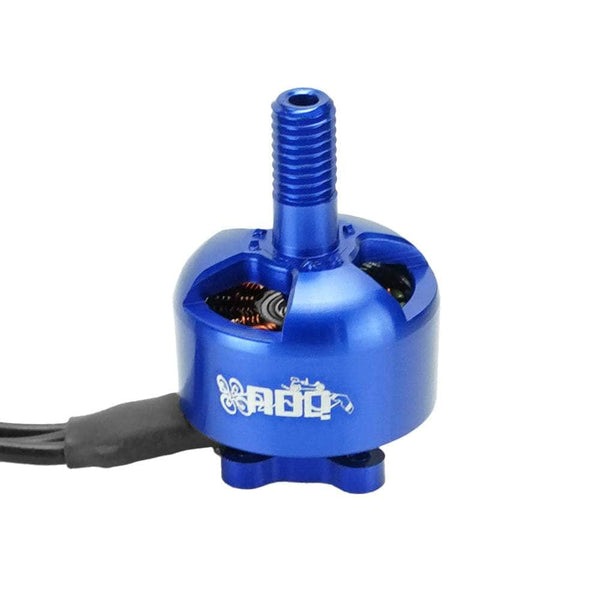

RDQ Badass 2 1507

Listed as: RDQ Badass 2 - 1507

RDQ Badass 2 1507
Image: racedayquads.com
Stator1507
KV options2650, 4000
Weight17.0 g
Shaft5mm
Max cells3-6S
Configuration12N14P
DimensionsØ20.2x18 mm
Mount12x12mm
Max thrust868 g
Price (approx.)12.59 USD

At 17 g it is 1.3 g heavier than average across the 6 1507-class motors in our database (avg 15.7 g).

Thrust data (RDQ bench test)

KVPropBatteryThrottleCurrentRPMThrustEfficiency
2650 GF3052 3R 4S 50 1.6 A 16782 103 g 4.35 g/W
2650 GF3052 3R 4S 60 2.7 A 19966 155 g 3.88 g/W
2650 GF3052 3R 4S 70 4.3 A 22946 207 g 3.25 g/W
2650 GF3052 3R 4S 80 6 A 25757 255 g 2.87 g/W
2650 GF3052 3R 4S 90 8.0 A 28210 304 g 2.57 g/W
2650 GF3052 3R 4S 100 9.7 A 29923 335 g 2.33 g/W
2650 GF3056 3R 4S 50 1 A 18219 85 g 5.74 g/W
2650 GF3056 3R 4S 60 1.6 A 21512 114 g 4.81 g/W
2650 GF3056 3R 4S 70 2.5 A 24986 155 g 4.19 g/W
2650 GF3056 3R 4S 80 3.6 A 28270 198 g 3.72 g/W
2650 GF3056 3R 4S 90 4.8 A 31329 246 g 3.46 g/W
2650 GF3056 3R 4S 100 5.8 A 33153 274 g 3.19 g/W
2650 GF4023 3R 4S 50 1.9 A 16703 158 g 5.62 g/W
2650 GF4023 3R 4S 60 3.2 A 19719 216 g 4.56 g/W
2650 GF4023 3R 4S 70 4.9 A 22588 285 g 3.93 g/W
2650 GF4023 3R 4S 80 7 A 25090 364 g 3.51 g/W
2650 GF4023 3R 4S 90 9.5 A 27395 435 g 3.09 g/W
2650 GF4023 3R 4S 100 11.1 A 28877 489 g 2.98 g/W
2650 GF3052 3R 6S 50 3.3 A 24287 222 g 3.03 g/W
2650 GF3052 3R 6S 60 5.6 A 28402 316 g 2.54 g/W
2650 GF3052 3R 6S 70 8.2 A 31957 395 g 2.17 g/W
2650 GF3052 3R 6S 80 11.3 A 35176 487 g 1.94 g/W
2650 GF3052 3R 6S 90 15.0 A 37635 573 g 1.72 g/W
2650 GF3052 3R 6S 100 17.6 A 39978 638 g 1.63 g/W
2650 GF3056 3R 6S 50 2 A 26664 175 g 3.94 g/W
2650 GF3056 3R 6S 60 3.3 A 31539 245 g 3.34 g/W
2650 GF3056 3R 6S 70 4.9 A 35924 324 g 2.98 g/W
2650 GF3056 3R 6S 80 6.9 A 40195 403 g 2.63 g/W
2650 GF3056 3R 6S 90 9.4 A 44544 495 g 2.37 g/W
2650 GF3056 3R 6S 100 10.9 A 46894 546 g 2.26 g/W
2650 GF4023 3R 6S 50 3.7 A 23389 316 g 3.85 g/W
2650 GF4023 3R 6S 60 6.3 A 27124 437 g 3.12 g/W
2650 GF4023 3R 6S 70 9.3 A 30355 546 g 2.64 g/W
2650 GF4023 3R 6S 80 12.5 A 33204 654 g 2.36 g/W
2650 GF4023 3R 6S 90 16.4 A 35381 765 g 2.1 g/W
2650 GF4023 3R 6S 100 19.7 A 37030 868 g 1.98 g/W
4000 GF3052 3R 4S 50 5.6 A 24673 239 g 2.88 g/W
4000 GF3052 3R 4S 60 8.9 A 28605 315 g 2.39 g/W
4000 GF3052 3R 4S 70 12.8 A 31826 398 g 2.1 g/W
4000 GF3052 3R 4S 80 17.1 A 34479 467 g 1.85 g/W
4000 GF3052 3R 4S 90 22.1 A 37110 534 g 1.63 g/W
4000 GF3052 3R 4S 100 25.5 A 38681 586 g 1.55 g/W
4000 GF3056 3R 4S 60 5.5 A 32322 257 g 3.16 g/W
4000 GF3056 3R 4S 70 8 A 36476 334 g 2.82 g/W
4000 GF3056 3R 4S 80 11 A 40681 416 g 2.56 g/W
4000 GF3056 3R 4S 90 14.8 A 44117 495 g 2.26 g/W
4000 GF3056 3R 4S 100 17.3 A 46034 536 g 2.09 g/W
4000 GF4023 3R 4S 50 6.3 A 23663 328 g 3.52 g/W
4000 GF4023 3R 4S 60 9.8 A 27083 434 g 2.99 g/W
4000 GF4023 3R 4S 70 14.4 A 29950 537 g 2.52 g/W
4000 GF4023 3R 4S 80 19.2 A 32398 635 g 2.23 g/W
4000 GF4023 3R 4S 90 24.2 A 34439 716 g 2.0 g/W
4000 GF4023 3R 4S 100 28.2 A 35706 798 g 1.91 g/W

Manufacturer bench figures (RaceDayQuads bench, 50-100% in tens on three props per winding; 2650 KV at 14.8 and 22.2 V, 4000 KV at 14.8 V); real-world thrust varies with ESC, battery sag and prop condition.

Badass 2 1507 vs other 1507 motors on 6S

The same thrust costs different power on different motors. Each line is one maker's own bench series (6S, its own prop), drawn as grams of thrust per watt against thrust, so a higher line makes that thrust for less battery current. Throttle percent is left out on purpose: it means something different on every maker's rig.

012340200400600800 thrust, g g/W
MotorKVPropPeak thrust At 400 gAt 800 g
RDQ Badass 2 1507 2650 GF4023 3R 868 g at 437 W 122 W (3.27 g/W) 389 W (2.06 g/W)
T-Motor F1507 2700 T-Motor T3140 Tri-Blade 839 g at 543 W 188 W (2.13 g/W) 516 W (1.55 g/W)
BrotherHobby VY 1507 3100 HQ 3*4*3 Triblade 879 g at 655 W 235 W (1.7 g/W) 593 W (1.35 g/W)

Power at 400 g and 800 g is read off each maker's curve, straight-line between its two nearest bench points; 800 g is the highest thrust every motor here reached. Different props and rigs move these curves as much as the motor does, so compare rows on a similar prop. Peak thrust of every 1507 motor: 1507 motors compared. How to read a bench table: reading motor bench tables.

Thrust-to-weight with this motor

Four RDQ Badass 2 1507 motors at 868 g max thrust each give 3472 g: 2:1, the minimum to fly, up to 1736 g all-up; 4:1 (freestyle) up to 868 g; 8:1 (racing) up to 434 g.

RPM & prop speed on this motor

Props in this motor's class

PropSizeBladesWeight
Gemfan 4022F 2-Blade 4.0x2.2 2 0.37 g
Gemfan Hurricane 3018 Durable 1.5mm 3.0x1.8 2 0.75 g
Gemfan Hurricane 3018 Durable 2mm 3.0x1.8 2 0.75 g
HQProp T3x1.5 Durable 3.0x1.5 2 0.78 g
HQProp T3.5x2.2x2 3.5x2.2 2 1.1 g

Where this data comes from

RDQ publishes the Badass 2 bench table as the listing's own description image (1507_-_info_4.1.jpg): Item NO. / Prop / Throttle / Volts / Amps / Watts / Speed (RPM) / Thrust / Efficiency, six throttle points per run, temperature measured on the motor surface after 15 s at 100% in a 26 C room. Each winding's spec-block Peak Current / Max Power / Max Pull is its own GF4023 100% row (19.7 A / 437.3 W / 868 g at 22.2 V on 2650 KV; 28.2 A / 417.4 W / 798 g at 14.8 V on 4000 KV). Internal resistance is 160 mOhm at 2650 KV and 84 mOhm at 4000 KV. One row is not published: the 4000 KV GF3056 50% point prints 1899 g and 37.74 g/W, where the same winding's other two props read 239 and 328 g at 50%.
