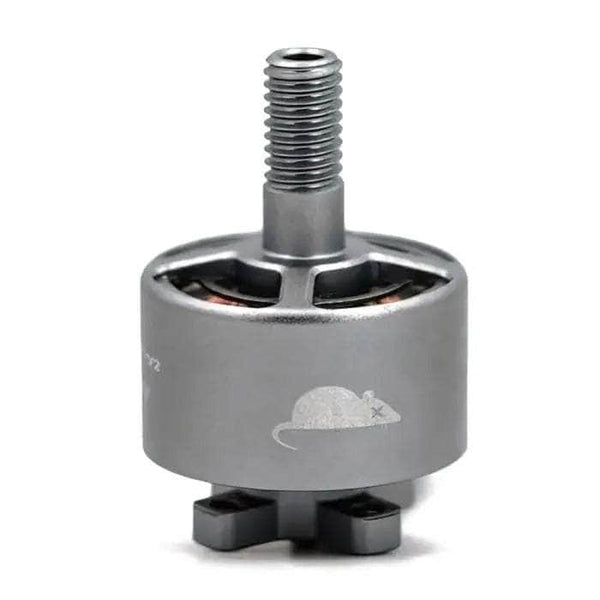

TBS Ethix Flat Rats V2 1507
| Stator | 1507 |
|---|---|
| KV options | 2800 |
| Weight | 15.8 g |
| Max cells | 6S |
| Dimensions | Ø19.8x17.5 mm |
| Mount | 12x12mm (M2) |
| Price (approx.) | 21.99 USD |
At 15.8 g it is right at the class average across the 6 1507-class motors in our database (avg 15.7 g).
RPM & prop speed on this motor
Props in this motor's class
| Prop | Size | Blades | Weight |
|---|---|---|---|
| Gemfan 4022F 2-Blade | 4.0x2.2 | 2 | 0.37 g |
| Gemfan Hurricane 3018 Durable 1.5mm | 3.0x1.8 | 2 | 0.75 g |
| Gemfan Hurricane 3018 Durable 2mm | 3.0x1.8 | 2 | 0.75 g |
| HQProp T3x1.5 Durable | 3.0x1.5 | 2 | 0.78 g |
| HQProp T3.5x2.2x2 | 3.5x2.2 | 2 | 1.1 g |
Where this data comes from
Team BlackSheep's own product page for the Ethix Flat Rats V2 1507 2800kv (Web Archive copy of 2022-12-08) prints the Specifications block: 15.8 g with wires, 6S, Base Mounting Pattern 12x12mm with M2 thread, Motor Overall Dimensions φ19.8mmx17.5mm, 2 mm shaft, and Internal Resistance "0.23mΩ" - a figure no 1507 winding has, so resistance_mohm stays empty. Its gallery is product photos only: TBS published no bench sheet for this motor.
