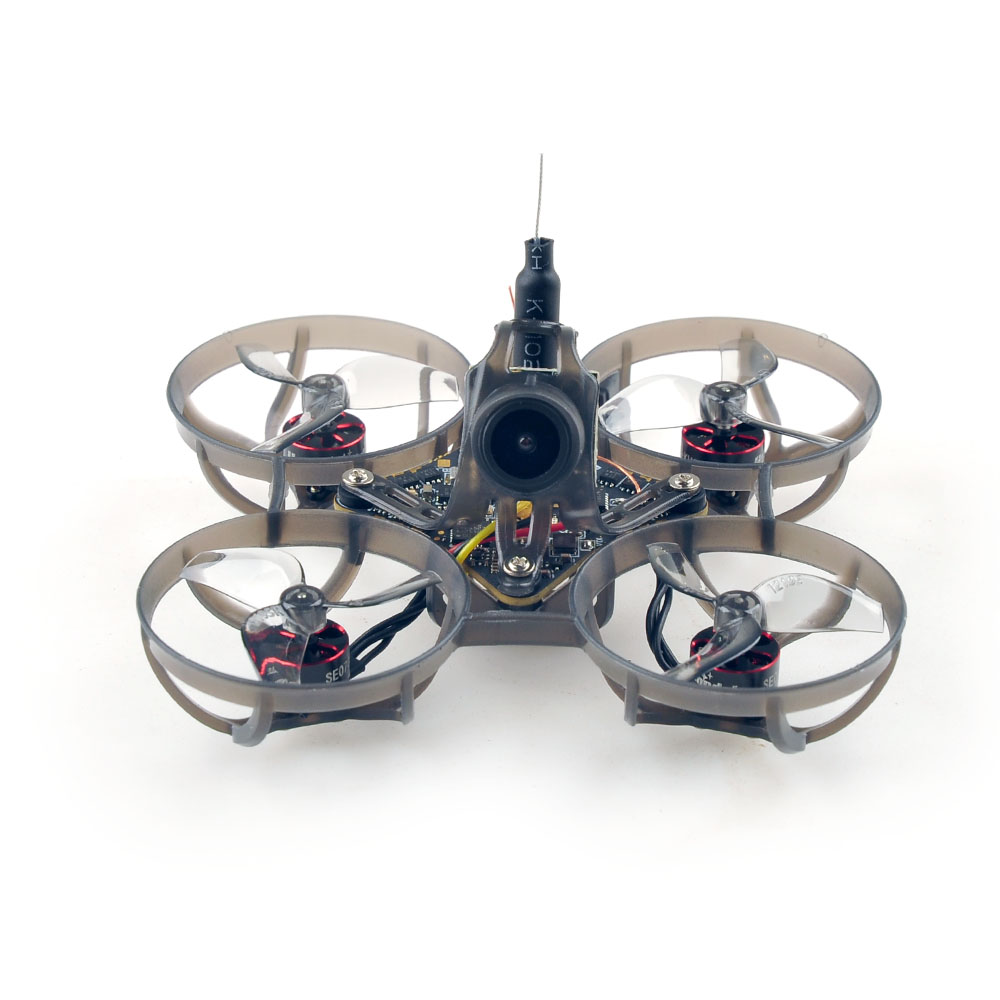

Happymodel Mobula6 2024
At 17.6 g dry the Mobula6 2024 is 25.1-26.3 g ready to fly on the 3 matching 1S packs listed below (270-300 mAh): the pack is 30-33% of all-up weight.
| Class | tiny whoop |
|---|---|
| Wheelbase | 65 mm |
| Weight (no battery) | 17.6 g |
| Prop size | 1.2 " |
| Prop mount | 1.0mm shaft |
| Motors | Happymodel SE0702 28000KV |
| VTX system | analog (HDZero ECO variant) |
| Receiver options | Serial ELRS 2.4GHz |
Full motor specs: Happymodel SE 0702
What battery does the Mobula6 2024 use?
| Cells | 1S |
|---|---|
| Capacity | 300 mAh |
| Connector | A30 (BT2.0 compatible) |
| Chemistry | LiHV |
Matching packs from our database
All-up weight is this quad's 17.6 g dry weight plus the pack's own weight.
| Battery | mAh | C | Weight | All-up weight | Price/Wh |
|---|---|---|---|---|---|
| NewBeeDrone Nitro Nectar HV NX69 300mAh 1S | 300 | 80C | 8.4 g | 26 g | $3.51 |
| EMAX EM2.0 300mAh 1S | 300 | 75C | 8.7 g | 26.3 g | $5.85 |
| EMAX EM2.0 270mAh 1S | 270 | 75C | 7.5 g | 25.1 g | $6.5 |
Mobula6 2024 flight time
The Mobula6 2024 flies ≈ 4.3-4.8 min on the 2 pack capacities listed above at our 3 A cruise-current estimate, with 80% of a pack used: 270 mAh ≈ 4.3 min, 300 mAh ≈ 4.8 min.
Where this data comes from
2024 V3 analog 17.6g (ECO HD: 23.3g). 31mm props, 65mm wheelbase.
