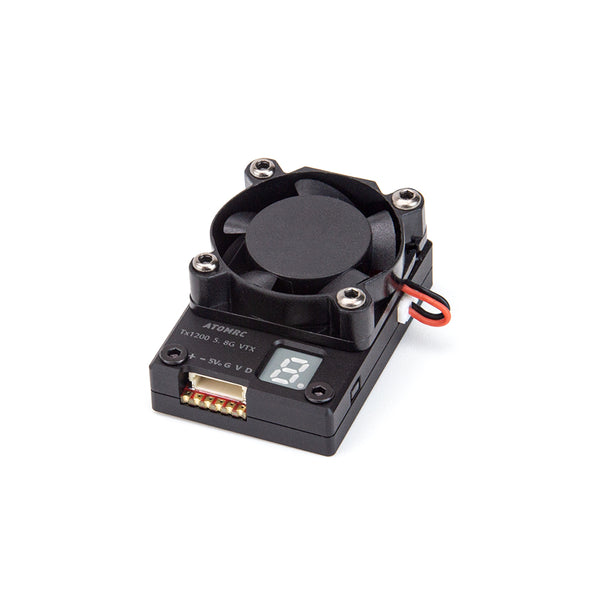

ATOMRC TX1200 Analog VTX
Of the 81 other 5.8 GHz analog video transmitters in our database, 51 have a lower maximum power than the TX1200 Analog VTX (1200 mW, 31 dBm), 2 the same and 28 a higher one; the class median is 800 mW. The TX1200 Analog VTX steps through 200 / 800 / 1200 mW, which is 23 / 29 / 31 dBm: the top level is 8 dB above the lowest, about 2.4x the free-space range on the same antennas.
| System | analog |
|---|---|
| Max power | 1200 mW |
| Power levels | 200 / 800 / 1200 mW |
| Frequency range | 5645-5945 MHz |
| Band | 5.8 GHz |
| Input voltage | 7-26V |
| Mounting | 20x30mm |
| Channels | 40 |
| Weight | 17.0 g |
| Price (approx.) | 45.0 USD |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Read 2026-09-25 off the brand's own shop, the fifteenth VTX manufacturer catalogue read beside the US retail scrape. www.skyzonefpv.com and atomrc.com are two Shopify stores of one company: /products.json?limit=250 is the whole catalogue in one request on each, the two shops carry the same product_type taxonomy and each lists the other brand's transmitters, and the boards are silkscreened with the brand whose name is on the case rather than the one in the page title. A labelled specification block in text: Item ATOMRC TX1200 Analog VTX, Weight 17g, Dimension 25.5X36.5mm, Power 200/800/1200mW, Voltage 7~26V, CH 40, Mounting Hole 20X30mm. The 25.5x36.5mm is the body and the 20x30mm is what the brand labels as the hole pattern, which is what mount_mm holds - a rectangular pattern, printed as such. The brand states no antenna connector for it. frequency_range re-read 2026-10-20 (burst 210) off the brand's own description image (TX1200EN.jpg, 1000 px wide, read at native resolution): a 'Frequency Table' of five bands A/B/E/F/R x CH1-CH8, 40 cells, lowest E4 5645M and highest E8 5945M, which is the block's own 'CH: 40' - so the span is the maker's whole table, not a class label. The table's heading reads 'ISM 5.8GHz 48 Channel Diversity receiver', a receiver template's caption over a 40-cell grid; it is recorded here and not used as a channel count.
