ATOMRC TX1201 5.8G 1.2W VTX
Of the 81 other 5.8 GHz analog video transmitters in our database, 51 have a lower maximum power than the TX1201 5.8G 1.2W VTX (1200 mW, 31 dBm), 2 the same and 28 a higher one; the class median is 800 mW. The TX1201 5.8G 1.2W VTX steps through 200 / 800 / 1200 mW, which is 23 / 29 / 31 dBm: the top level is 8 dB above the lowest, about 2.4x the free-space range on the same antennas.
| System | analog |
|---|---|
| Max power | 1200 mW |
| Power levels | 200 / 800 / 1200 mW |
| Frequency range | 4990-5945 MHz |
| Band | 5.8 GHz |
| Input voltage | 7-26V |
| Mounting | 30.5x30.5mm M3 |
| Channels | 56 |
| Weight | 5.0 g |
| Price (approx.) | 45.0 USD |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from

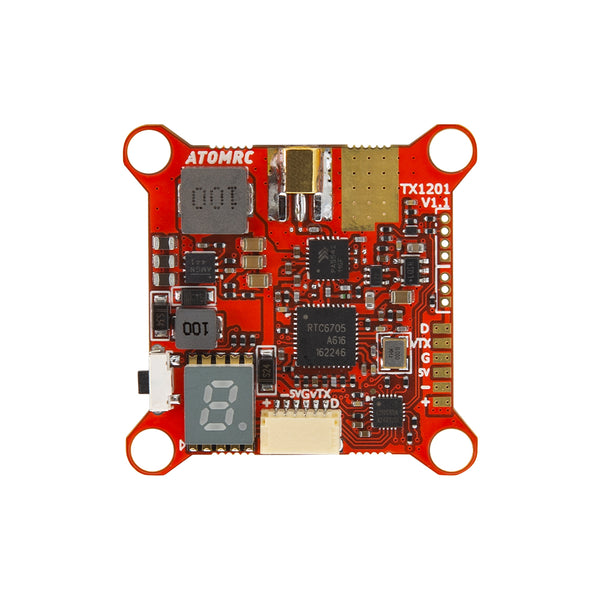

Read 2026-09-25 off the brand's own shop, the fifteenth VTX manufacturer catalogue read beside the US retail scrape. www.skyzonefpv.com and atomrc.com are two Shopify stores of one company: /products.json?limit=250 is the whole catalogue in one request on each, the two shops carry the same product_type taxonomy and each lists the other brand's transmitters, and the boards are silkscreened with the brand whose name is on the case rather than the one in the page title. The page is a feature list, not a block: 'Support X Band(5G Hz) and Low Band', '200/800/1200mW adjustable power output', '7-26V Wide Range Voltage input', an LED segment display and Button/IRC control. Its board is silkscreened 'ATOMRC TX1201 V1.1', read at full resolution, which is what identifies it as this brand's own. Re-read 2026-10-20 (burst 210): the page's long description image (TX1201.jpg, 1000x11800, read at native resolution) does print what the text omits. Its 'Frequency Table' ('The L-band and X-band are added to 40 regular frequencies') is seven bands x CH1-CH8: A/B/E/F/R as standard, L 5362M-5621M and X 4990M-5200M, 56 cells, lowest X1 4990M, highest E8 5945M; its Specification table prints 'Frequency: 56', 'Mounting holes: 30.5*30.5 M3', 'Weight: 5±0.2g', 'Size: 35.9*35.9mm', 'Input voltage: 7~26V' and 'Power: 200mw/800mw/1200mw', agreeing with the text. frequency_range is the table's edges (56 = 7 x 8, so the whole table), channels the 56, mount_mm the hole line, weight_g the 5 g without its tolerance. The image's '56 Frequency' icon repeats the count. No antenna connector is stated.
