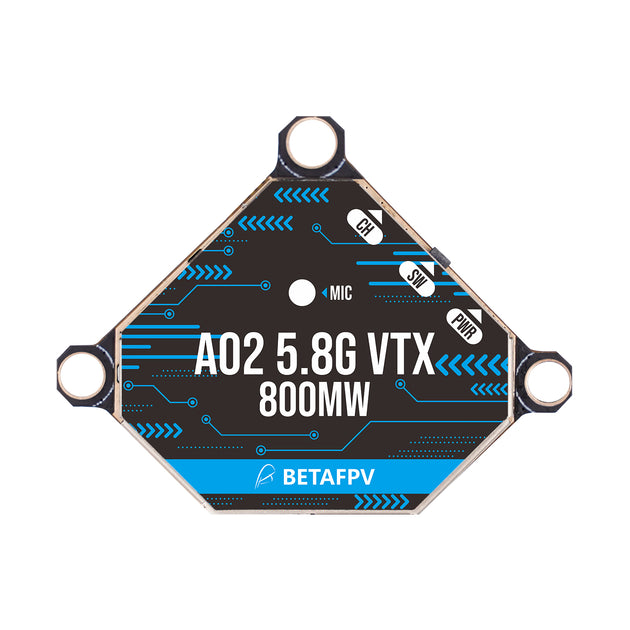

BetaFPV A02 25-800mW 5.8G VTX
Of the 81 other 5.8 GHz analog video transmitters in our database, 30 have a lower maximum power than the A02 25-800mW 5.8G VTX (800 mW, 29 dBm), 12 the same and 39 a higher one; the class median is 800 mW. The A02 25-800mW 5.8G VTX steps through 25 / 200 / 500 / 800 mW, which is 14 / 23 / 27 / 29 dBm: the top level is 15 dB above the lowest, about 5.7x the free-space range on the same antennas.
BetaFPV's own Betaflight VTX table is on this page: 5 bands of 8 channels, 5645–5945 MHz, 4 power levels, SmartAudio 2.0. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 800 mW |
| Power levels | 25 / 200 / 500 / 800 mW |
| Frequency range | 5.8 GHz |
| Input voltage | 7-35V |
| Mounting | 26x26mm |
| Antenna connector | MMCX |
| Weight | 5.26 g |
BetaFPV A02 25-800mW 5.8G VTX VTX table for Betaflight
The band and channel frequencies and power levels as BetaFPV publishes them for SmartAudio 2.0 control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BOSCAM_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BOSCAM_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BOSCAM_E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F FATSHARK | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 0), 200 (value 1), 500 (value 2), 800 (value 3).
vtxtable bands 5
vtxtable channels 8
vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R FACTORY 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable powerlevels 4
vtxtable powervalues 0 1 2 3
vtxtable powerlabels 25 200 500 800
saveSource: https://support.betafpv.com/hc/article_attachments/4410935832089 — Copied from the maker's Betaflight CLI file A02.txt attached to the BETAFPV support article 'CLI for VTX' (https://support.betafpv.com/hc/en-us/articles/4410949062809-CLI-for-VTX), which the product page links. The file's header says SmartAudio 2.0, so the power values 0-3 are level indexes, labelled 25/200/500/800 - the page's 25/200/500/800mW. All five bands are marked FACTORY.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Every manufacturer table in the database, with one archive of all the files: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
BetaFPV's product page prints the labelled block: Output power: 25/200/500/800mW (adjustable), Supply voltage range: 7-35V, Weight: 5.26g (excluding antenna), VTX size: 27.3x27.3x4.5mm, Antenna: Air Antenna(MMCX Straight), Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz, Channel SEL: SmartAudio, Channel Indicate: 3 LEDs. The scale photograph reads 5.26 g, and the pinout drawing labels the connector ANT(MMCX). channels is EMPTY although the block says 48: the page's own channel table is five bands of eight (A, B, E, F, R) and prints no L band, so the brand states 48 and 40 for one radio and this column publishes neither - the same test the mounting pattern gets elsewhere. mount_mm is not in the block at all; it is the brand's own dimension drawing, which measures 26mm x 26mm between hole centres, the banner reading '26*26mm Mounting Hole', and the comparison table on the A03's page, which lists the A02 at 26*26mm. A built-in microphone is part of this board and has no column here.
