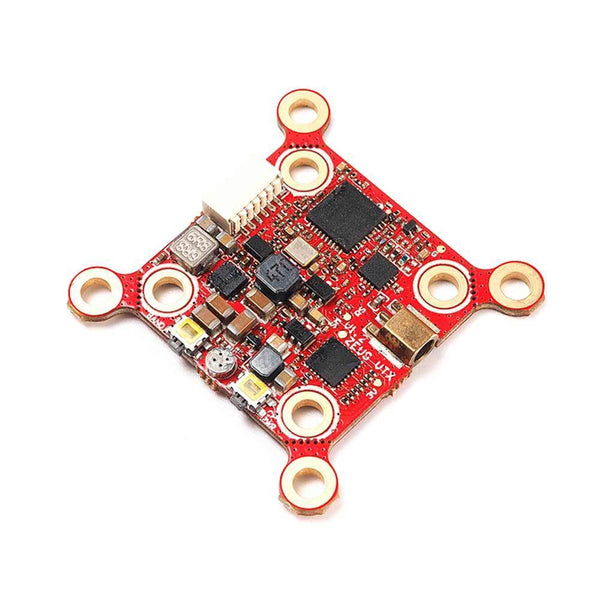

HGLRC Zeus 20x20/30x30 25-800mW 5.8GHz
Listed as: HGLRC Zeus 20x20/30x30 25-800mW 5.8GHz - MMCX
Of the 81 other 5.8 GHz analog video transmitters in our database, 30 have a lower maximum power than the Zeus 20x20/30x30 25-800mW 5.8GHz (800 mW, 29 dBm), 12 the same and 39 a higher one; the class median is 800 mW. The Zeus 20x20/30x30 25-800mW 5.8GHz steps through 25 / 100 / 200 / 400 / 800 mW, which is 14 / 20 / 23 / 26 / 29 dBm: the top level is 15 dB above the lowest, about 5.7x the free-space range on the same antennas.
HGLRC's own Betaflight VTX table is on this page: 5 bands of 8 channels, 5362–5917 MHz, 5 power levels, IRC Tramp. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 800 mW |
| Power levels | 25 / 100 / 200 / 400 / 800 mW |
| Frequency range | 5362-5917 MHz |
| Band | 5.8 GHz |
| Input voltage | 6-26V |
| Power draw | 94 mA in pit mode, 169 mA at 25 mW, 199 mA at 100 mW, 216 mA at 200 mW, 279 mA at 400 mW, 387 mA at 800 mW |
| Mounting | 20x20mm / 30x30mm M3 |
| Channels | 40 |
| Antenna connector | MMCX |
| Weight | 4.8 g |
| Price (approx.) | 41.99 USD |
HGLRC Zeus 20x20/30x30 25-800mW 5.8GHz VTX table for Betaflight
The band and channel frequencies and power levels as HGLRC publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BOSCAM_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BOSCAM_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| F FATSHARK | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| I IMD6 | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 25), 100 (value 100), 200 (value 200), 400 (value 400), 800 (value 800).
vtxtable bands 5
vtxtable channels 8
vtxtable band 1 BOSCAM_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 FATSHARK F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 4 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 5 IMD6 I CUSTOM 5362 5399 5436 5473 5510 5547 5584 5621
vtxtable powerlevels 5
vtxtable powervalues 25 100 200 400 800
vtxtable powerlabels 25 100 200 400 800
saveSource: https://cdn.shopifycdn.net/s/files/1/2672/8290/files/Zeus_VTX_800mw_V2.0.json?v=1635392484 — Copied from the maker's Betaflight file Zeus_VTX_800mw_V2.0.json, linked from the Zeus VTX 800mW product page ('You can find VTX Table here'). Five bands as the file names them: BOSCAM_A, BOSCAM_B, FATSHARK, RACEBAND and IMD6 (letter I, 5362-5621 MHz, the band others call LOWRACE); no Band E, which is how the page's '5 bands, 40 channels' comes out. Power 25/100/200/400/800 matches the page's PIT/25/100/200/400/800mW; the page names the protocol IRC Tramp, so the values are milliwatts.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Every manufacturer table in the database, with one archive of all the files: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Cited to HGLRC, whose own labelled block reads: 'Model: Zeus VTX 800mW, Built-in Microphone, Input voltage: DC 6-26V, Output voltage: 5V/2A, Antenna interface: MMCX, Output power: PIT/25/100/200/400/800mW, Frequency: 5.8GHz 5 bands, 40 channels, Installing Hole: 20X20/30X30mm.M3, Size: 37mm x 37mm x 5mm, Weight: 4.8g, Protocol: IRC tramp', with a current draw per step (PIT@94mA, 25mW@169mA/14dBm, 100mW@199mA/20dBm, 200mW@216mA/23dBm, 400mW@279mA/26dBm, 800mW@387mA/29dBm) - conducted milliwatts with a dBm equivalent, not an EIRP. The 800 mW, 40 channels, MMCX and 4.8 g the retail listing gave us are all confirmed. mount_mm gains the second pattern the board is named for: this is the 'Smart Mounting' Zeus, whose ears carry both a 20x20 and a 30x30 hole set (both visible in HGLRC's own board photographs), and the scrape had only the 20x20 from the retail title. power_draw is the maker's own supply figure, the per-level lines of HGLRC's labelled block, 'PIT@94mA, 25mW@169mA/14dBm, 100mW@199mA/20dBm, 200mW@216mA/23dBm, 400mW@279mA/26dBm, 800mW@387mA/29dBm'; no supply voltage is printed beside them (input DC 6-26V), read 2026-10-20 through scraper/propose_vtx_power_draw.py (the store's products.json, common.UA); it is the VTX's input draw, not its RF output. frequency_range is the edges of HGLRC's own Betaflight file Zeus_VTX_800mw_V2.0.json, linked from the product page: five bands, 40 channels (the page's '5 bands, 40 channels'), IMD6 I1 5362 .. R8 5917 MHz; no Band E, so nothing above 5917.
