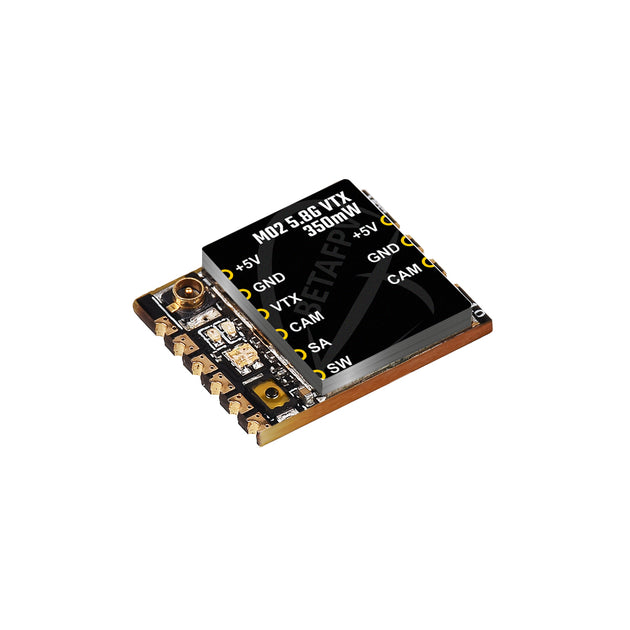

BetaFPV M02 25-350mW 5.8G VTX
Of the 81 other 5.8 GHz analog video transmitters in our database, 10 have a lower maximum power than the M02 25-350mW 5.8G VTX (350 mW, 25 dBm), 5 the same and 66 a higher one; the class median is 800 mW.
BetaFPV's own Betaflight VTX table is on this page: 5 bands of 8 channels, 5645–5945 MHz, 4 power levels, SmartAudio 2.0. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 350 mW |
| Power levels | PIT / 25 / 100 / 200 / 350 mW |
| Frequency range | 5.8 GHz |
| Input voltage | 4.5-5.5V |
| Antenna connector | U.FL |
| Weight | 1.7 g |
BetaFPV M02 25-350mW 5.8G VTX VTX table for Betaflight
The band and channel frequencies and power levels as BetaFPV publishes them for SmartAudio 2.0 control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BOSCAM_A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B BOSCAM_B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E BOSCAM_E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F FATSHARK | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| R RACEBAND | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 0), 100 (value 1), 200 (value 2), 350 (value 3).
vtxtable bands 5
vtxtable channels 8
vtxtable band 1 BOSCAM_A A FACTORY 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BOSCAM_B B FACTORY 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BOSCAM_E E FACTORY 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 FATSHARK F FACTORY 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 RACEBAND R FACTORY 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable powerlevels 4
vtxtable powervalues 0 1 2 3
vtxtable powerlabels 25 100 200 350
saveSource: https://support.betafpv.com/hc/article_attachments/4410949060889 — Copied from the maker's Betaflight CLI file M02.txt attached to the BETAFPV support article 'CLI for VTX' (https://support.betafpv.com/hc/en-us/articles/4410949062809-CLI-for-VTX), which the product page links. The file's header says SmartAudio 2.0, so the power values 0-3 are level indexes, labelled 25/100/200/350 - the page's 25mW, 100mW, 200mW and 350mW. All five bands are marked FACTORY.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Every manufacturer table in the database, with one archive of all the files: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
BetaFPV's product page prints the labelled block: Item: M02 5.8G VTX, Output power: 25/100/200/350mW (adjustable), Supply voltage range: 4.5-5.5V, Weight: 1.7g (Mounting hole 0.7g), VTX internal size: 18X14mm, Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz, Channel SEL: SmartAudio, Channel Indicate: 3 LEDs. power_levels_mw adds the PIT state the block omits and the page's own LED legend prints (flash = PitMode, then 25/100/200/350mW). weight_g is the board alone, which the page states twice - 'the single M02 VTX only weight 1.7g' beside the bracket's 0.7 g; the scale photograph reads 2.36 g, which is the pair. channels is EMPTY although the block says 48: the page's own channel table is five bands of eight (A, B, E, F, R) and its prose calls the same table '40CH', so the brand states two counts for one radio. mount_mm is EMPTY for the same reason one column over: the mounting bracket this board ships with is 'a separate 26.5 * 26.5mm mounting hole' in the page's prose and 26*26mm in the comparison table on the A03's page, and no labelled line states either - the bracket is also optional, which is why the block gives its weight separately. antenna_connector is normalised to U.FL from BetaFPV's 'IPX type of antenna'.
