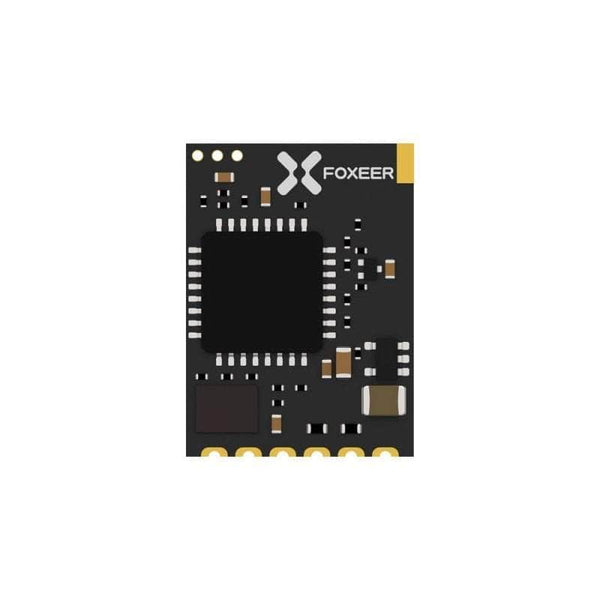

Foxeer Reaper Nano 25-350mW 5.8G Micro
Listed as: Foxeer Reaper Nano 25-350mW 5.8G Micro - U.FL
Of the 81 other 5.8 GHz analog video transmitters in our database, 10 have a lower maximum power than the Reaper Nano 25-350mW 5.8G Micro (350 mW, 25 dBm), 5 the same and 66 a higher one; the class median is 800 mW. The Reaper Nano 25-350mW 5.8G Micro steps through 25 / 100 / 200 / 350 mW, which is 14 / 20 / 23 / 25 dBm: the top level is 11 dB above the lowest, about 3.7x the free-space range on the same antennas.
| System | analog |
|---|---|
| Max power | 350 mW |
| Power levels | 25 / 100 / 200 / 350 mW |
| Frequency range | 5.8 GHz |
| Input voltage | 5V |
| Channels | 40 |
| Antenna connector | U.FL |
| Price (approx.) | 29.99 USD |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
This is the 40-channel Reaper Nano (V1). Foxeer's own catalogue no longer lists it - what it sells is the 72-channel Reaper Nano V2 (goods 583, images uploaded 2024-12), which has the same 350 mW ceiling and a different frequency table, and which is a separate page here; foxeer.com goods ids 300-439 (read 2026-10-20) hold only the 'Reaper Nano VTx V1 Extension Board' (goods 404), no page for this transmitter. The cited source is Foxeer's own product graphic for it, uploaded 2021-08-11 to Foxeer's image server and embedded in the retail listing: 'REAPER NANO VTX', <1g, 12*16mm, 350mW, Tramp, a pinout naming VIDEO / GND / 5V OUT / TRAMP / GND / 5V IN pads and an LED legend CHANNEL / BAND / POWER, and the power row '25 - 100 - 200 - 350mW', read at full resolution (1080x1500). power_levels_mw and input_voltage (the 5V IN pad, which the retail block's 'Input Voltage: 5V DC' repeats) come from it. The graphic prints no channel table and no frequencies, so frequency_range keeps the 5.8 GHz label and channels stays the retail block's 40CH. power_draw stays empty: the retail block's '340mA @ 350mW' is the V2's maker figure word for word, and a retailer figure that equals a sibling SKU's maker figure is not taken.
