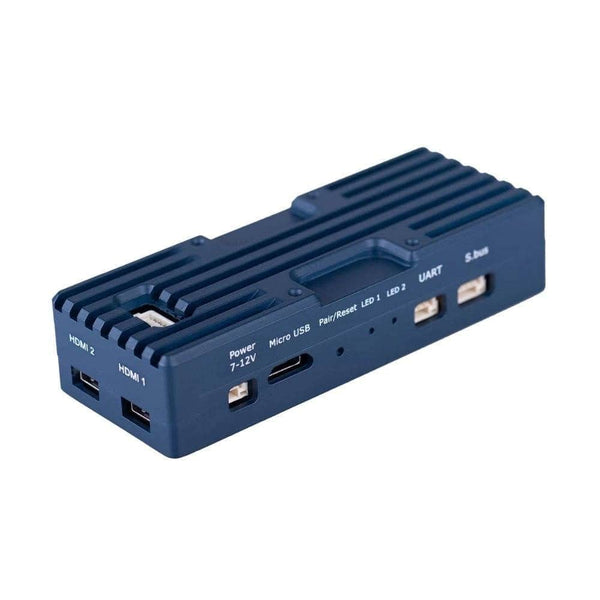

CubePilot Herelink Blue Air Unit V1.1
| System | Digital HD (other) |
|---|---|
| Max power | 200 mW |
| Frequency range | 2.4 GHz |
| Band | 2.4-3.0 GHz |
| Antenna connector | MMCX |
| Weight | 68.0 g |
| Price (approx.) | 1399.0 USD |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
CubePilot's own HereLink Blue documentation (docs.cubepilot.org, Union Robotics partner pages, read 2026-10-20) prints the system's radio table: 'Frequency Band: 2.4GHz ISM', 'Receive Sensitivity: -99dBm@20MHz BW', and calls HereLink Blue 'an integrated remote controller, ground station and wireless digital transmission system' carrying 'HD video'; its Air Unit specification page states 'Signal Bandwidth: 20MHz/10MHz' and prints no frequency of its own, so the system's band is the air unit's. system is therefore Digital HD (other), not the analog the retail scrape assigned for want of a digital keyword in the listing. The listing itself calls it 'a long-range digital video and data transmission module'. weight_g stays the listing's 68 g for the NW Blue V1.1 unit (78 x 30 x 17 mm); CubePilot's page shows 90 g with antennas for a 104.5 x 30.5 x 16 mm housing, a different case.
