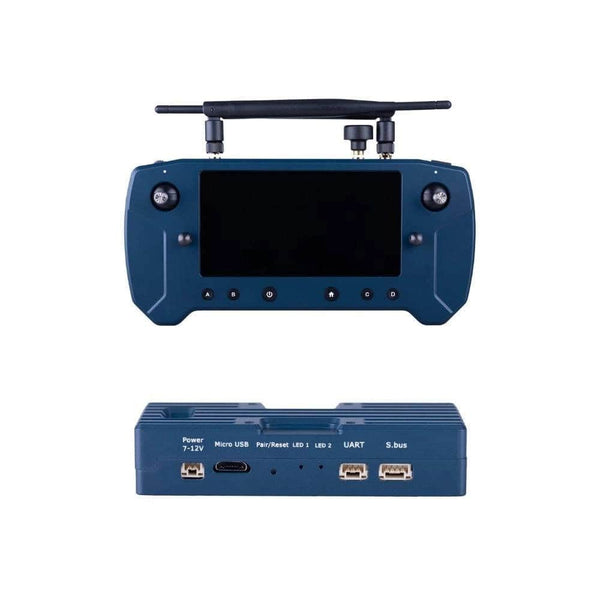

CubePilot Herelink Blue Bundle V1.1
| System | Digital HD (other) |
|---|---|
| Max power | 200 mW |
| Frequency range | 2.4 GHz |
| Band | 2.4-3.0 GHz |
| Antenna connector | MMCX |
| Weight | 68.0 g |
| Price (approx.) | 3999.0 USD |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
CubePilot's own HereLink Blue documentation (docs.cubepilot.org, Union Robotics partner pages, read 2026-10-20) prints the system's radio table: 'Frequency Band: 2.4GHz ISM', 'Receive Sensitivity: -99dBm@20MHz BW', and calls HereLink Blue 'an integrated remote controller, ground station and wireless digital transmission system' carrying 'HD video'; its Air Unit specification page states 'Signal Bandwidth: 20MHz/10MHz' and prints no frequency of its own, so the system's band is the air unit's. system is therefore Digital HD (other), not the analog the retail scrape assigned for want of a digital keyword in the listing. The bundle listing prints the same 'Frequency Band: 2.4 GHz ISM'; the '5.8 GHz' this page carried until 2026-10-20 was the controller's '5.8 GHz WiFi' line, which the scraper now steps over.
