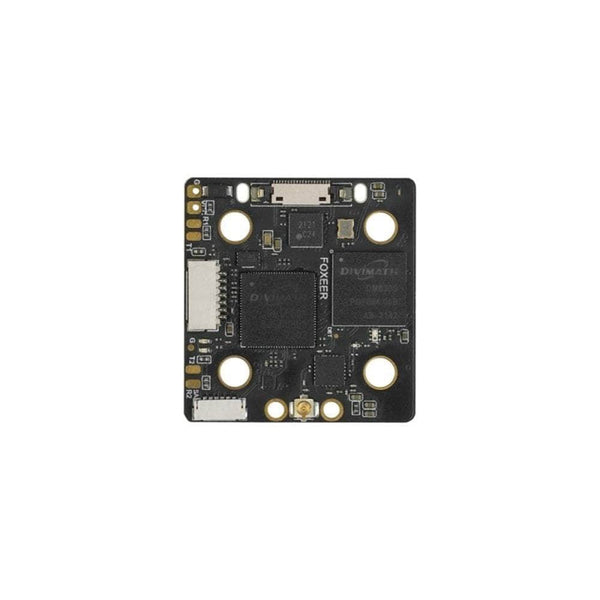

Foxeer HDZero 720P 20x20 25-200mw Digital HD
Listed as: Foxeer HDZero 720P 20x20 25-200mw Digital HD - Race
Of the 10 other 5.8 GHz HDZero video transmitters in our database, none has a lower maximum power than the HDZero 720P 20x20 25-200mw Digital HD (200 mW, 23 dBm), 7 the same and 3 a higher one; the class median is 200 mW. The HDZero 720P 20x20 25-200mw Digital HD steps through 25 / 200 mW, which is 14 / 23 dBm: the top level is 9 dB above the lowest, about 2.8x the free-space range on the same antennas.
| System | HDZero |
|---|---|
| Max power | 200 mW |
| Power levels | 25 / 200 mW |
| Frequency range | 5.8 GHz |
| Input voltage | 8-26V (3-6S) |
| Power draw | 410 mA at 12 V |
| Mounting | 20x20mm M3 |
| Antenna connector | U.FL |
| Weight | 6.3 g |
| Price (approx.) | 81.49 USD |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Second source 2026-09-23: Foxeer's own product page for this transmitter (SKU MR1715) prints the full block the retail listing paraphrases - 1280*720@60fps, RF power 25mw/200mw, 'Secured UFL' connector, 4-lane MIPI CSI YUV422 camera interface, 32x34x6 mm, 6.3 g, 410 mA at 12 V, 8~26V (3~6S) in, and 'Mounting: 20mm x 20mm phi4 M3'. It confirms the 200 mW and the 6.3 g already published and adds the input voltage, the two power steps and the M3 screw size on the 20x20 pattern. power_draw is that block's 'Power: 410mA@12V', re-read 2026-10-20 off the same Foxeer page; it is the VTX's supply current, not its RF output, and the page does not say at which power step it is drawn.
