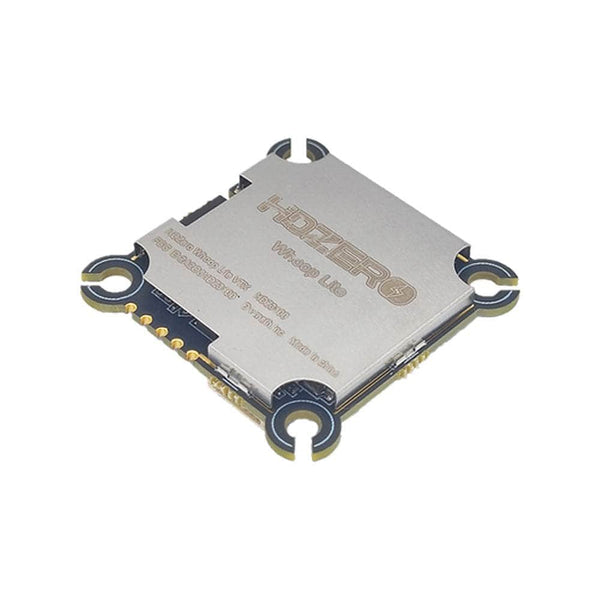

HDZero Whoop Lite 25x25 200mw Digital HD
Listed as: HDZero Whoop Lite 25x25 200mw Digital HD - U.FL
Of the 10 other 5.8 GHz HDZero video transmitters in our database, none has a lower maximum power than the Whoop Lite 25x25 200mw Digital HD (200 mW, 23 dBm), 7 the same and 3 a higher one; the class median is 200 mW. The Whoop Lite 25x25 200mw Digital HD steps through 25 / 200 mW, which is 14 / 23 dBm: the top level is 9 dB above the lowest, about 2.8x the free-space range on the same antennas.
| System | HDZero |
|---|---|
| Max power | 200 mW |
| Power levels | 25 / 200 mW |
| Frequency range | 5.8 GHz |
| Input voltage | 2.8-13V |
| Mounting | 25x25mm |
| Channels | 12 |
| Antenna connector | U.FL |
| Weight | 4.9 g |
| Price (approx.) | 77.99 USD |
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Manufacturer source 2026-09-23, and it survives only on its successor's page: HDZero has discontinued the Whoop Lite, so there is no product page for it, but the Whoop V2's page prints a 'Whoop Lite VTX Comparison' column that states its figures - Standard U.FL (no retention bar), Size 32.5x32.5 mm (29x29 inner), Weight 4.9 g (4.6 g w/o wires), Board Thickness ~1.2 mm (no shielding), recommended use 65-85 mm whoops - and the HDZero VTX User Manual v1.1 keeps its own page for it (p24): 720p60, 'capable of delivering up to 200mW on 5.8GHz', power input range 2.8V - 13V, no reverse polarity protection, M2 gummies for soft mounting, zip ties for antenna retention, and removable grounded protection cases on both sides. weight_g is the 4.9 g with the wires, the same as-shipped basis as the Whoop V2's 5.4 g. power_levels_mw is the manual's selectable pair (p8, 'selectable between 25mW, 200mW'). mount_mm keeps the retailer's 25x25mm: the manufacturer states M2 soft mounting for this model but prints no pattern for it anywhere, so there is nothing to correct it with. channels is the HDZero VTX User Manual v1.1's own list, re-read 2026-10-20: 'Using VTX Menu' (p8) says 'All VTXes support R1-R8, E1, F1, F2 and F4 channels. You will get an additional 8 channels L1-L8 if you unlock the low band', and the 'Unlock Low Band' page (p18) has it flashed from HDZero's Unlock_Lowband.zip after 'Make sure your region allows low band before unlocking' - so 12 is the count as shipped and the L1-L8 band is a regional unlock, not counted. The manual keeps this discontinued transmitter's own page (p24), so the menu line covers it. The manual names channels, not frequencies, so frequency_range stays HDZero's own '5.8GHz' label.
