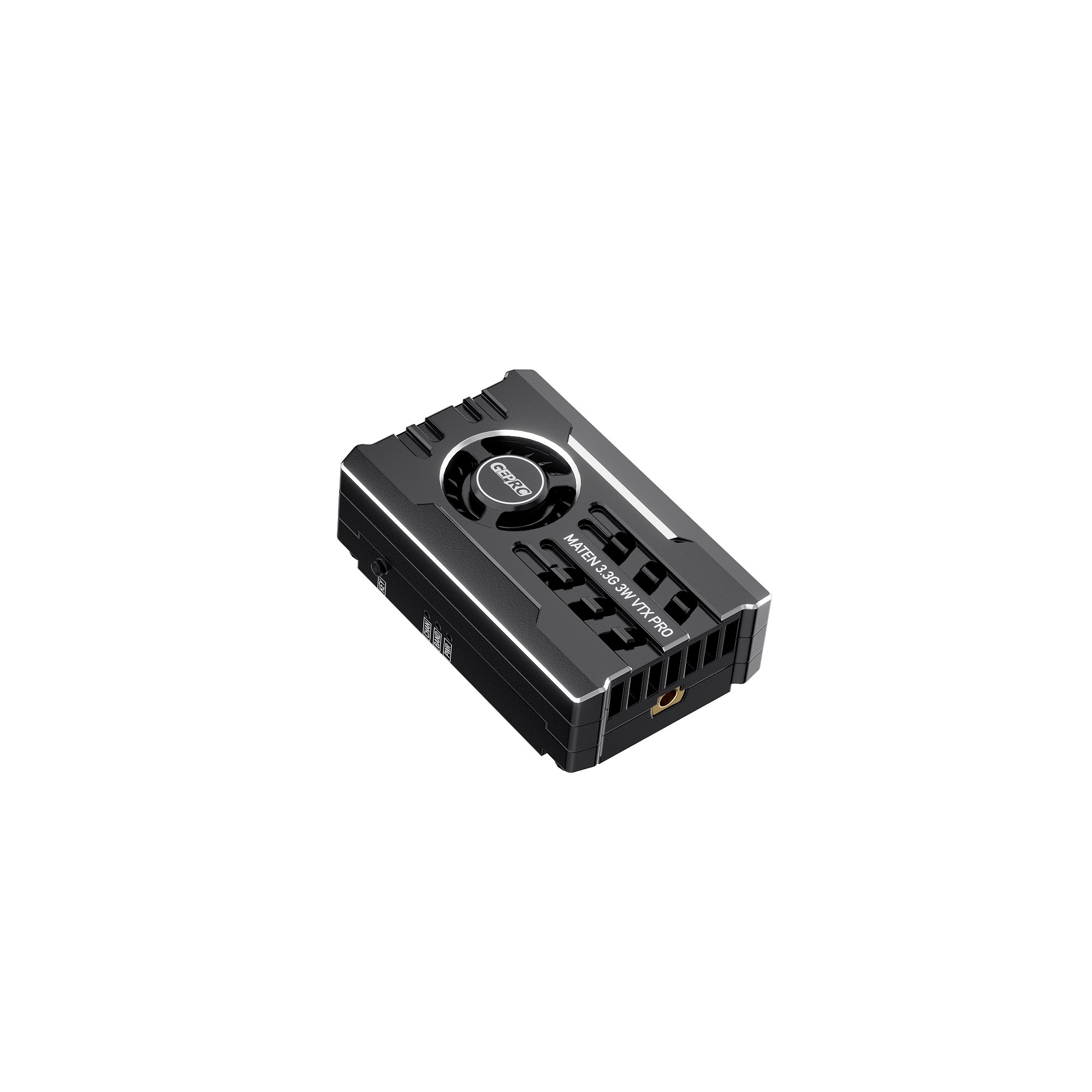

GEPRC MATEN 3.3G 3W VTX PRO
Of the 13 other 3.1-4.0 GHz analog video transmitters in our database, 3 have a lower maximum power than the MATEN 3.3G 3W VTX PRO (3000 mW, 35 dBm) and 10 a higher one; the class median is 4000 mW. The MATEN 3.3G 3W VTX PRO steps through 25 / 200 / 1600 / 3000 mW, which is 14 / 23 / 32 / 35 dBm: the top level is 21 dB above the lowest, about 11.0x the free-space range on the same antennas.
| System | analog |
|---|---|
| Max power | 3000 mW |
| Power levels | 25 / 200 / 1600 / 3000 mW |
| Frequency range | 3000-3500 MHz |
| Band | 3.1-4.0 GHz |
| Input voltage | 12-36V (3-8S) |
| Mounting | 20x20mm M2 / 25.5x25.5mm M2 |
| Channels | 48 |
| Antenna connector | MMCX |
| Weight | 37.0 g |
| Price (approx.) | 59.99 USD |
Other transmitters in this band, side by side: 3.3 GHz FPV VTX compared.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Read 2026-09-24 off GEPRC's own site, the thirteenth VTX manufacturer catalogue read beside the US retail scrape and the second brand this catalogue carried no transmitter of at all. geprc.com is WooCommerce: /wp-json/wp/v2/product lists the whole catalogue and product_cat=211 ('Electronics', 114 SKUs) holds the transmitters, but the REST API's content field is only the description gallery - the labelled Specifications block is in the product page HTML, so every figure here was read off the page itself. Block lines: 'Output power: 25mW/200mW/1600mW/3000mW/Pit mode', 'Frequency: 3000-3500MHz', 'Channel: 48CH', 'Input voltage: DC12-36V（3-8S Battery）', 'Mounting hole: 20x20mm(M2),25.5×25.5mm(M2)', 'Antenna interface: MMCX', 'Weight: 37g', 'Size: 50×31.5×17.5mm'. The page also prints the six eight-channel bands A-F, whose real edges are 3083 and 3495 MHz - narrower than the round 3000-3500 the spec line states, which is the figure recorded here because it is the brand's own answer for this field. price_usd is the listing's price on the day, sale included (owner ruling 2026-10-20): re-read 2026-10-20, the page prints 'Original price was: $69.99. Current price is: $59.99.' and its Offer markup gives 59.99 with 69.99 as the ListPrice, the same promotion first seen 2026-09-24, when 69.99 had been recorded as the list price.
