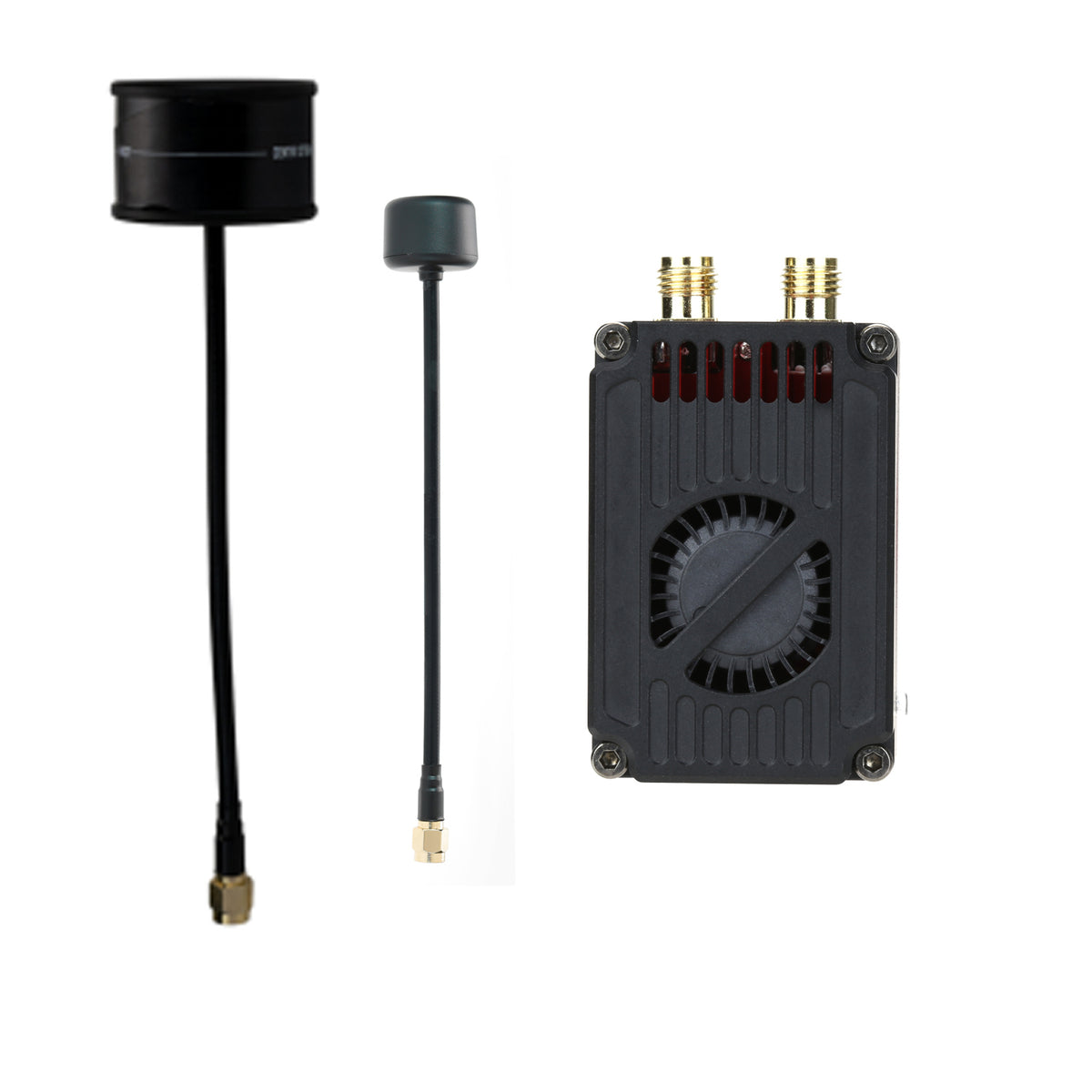

RUSHFPV 1.3/3.3GHz Dual-Band 2.5W
Of the 13 other 3.1-4.0 GHz analog video transmitters in our database, 1 has a lower maximum power than the 1.3/3.3GHz Dual-Band 2.5W (2500 mW, 34 dBm), 1 the same and 11 a higher one; the class median is 4000 mW. The 1.3/3.3GHz Dual-Band 2.5W steps through 25 / 200 / 1000 / 2500 mW, which is 14 / 23 / 30 / 34 dBm: the top level is 20 dB above the lowest, about 10.0x the free-space range on the same antennas.
RUSHFPV's own Betaflight VTX table is on this page: 4 bands of 8 channels, 1080–3470 MHz, 4 power levels. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 2500 mW |
| Power levels | 25 / 200 / 1000 / 2500 mW |
| Frequency range | 1.3 / 3.3 GHz |
| Band | 1.2/1.3 GHz + 3.1-4.0 GHz |
| Input voltage | 7-30V |
| Channels | 32 |
| Antenna connector | SMA |
RUSHFPV 1.3/3.3GHz Dual-Band 2.5W VTX table for Betaflight
The band and channel frequencies and power levels as RUSHFPV publishes them. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BAND-A | 3330 | 3350 | 3370 | 3390 | 3410 | 3430 | 3450 | 3470 |
| B BAND-B | 3170 | 3190 | 3210 | 3230 | 3250 | 3270 | 3290 | 3310 |
| E BAND-E | 1080 | 1120 | 1160 | 1200 | 1240 | 1280 | 1320 | 1360 |
| F BAND-F | 1200 | 1220 | 1240 | 1258 | 1280 | 1300 | 1320 | 1340 |
Frequencies in MHz; "—" is an unused slot. Power levels: PA1 (value 25), PA2 (value 200), PA3 (value 1000), PA4 (value 2500).
vtxtable bands 4
vtxtable channels 8
vtxtable band 1 BAND-A A CUSTOM 3330 3350 3370 3390 3410 3430 3450 3470
vtxtable band 2 BAND-B B CUSTOM 3170 3190 3210 3230 3250 3270 3290 3310
vtxtable band 3 BAND-E E CUSTOM 1080 1120 1160 1200 1240 1280 1320 1360
vtxtable band 4 BAND-F F CUSTOM 1200 1220 1240 1258 1280 1300 1320 1340
vtxtable powerlevels 4
vtxtable powervalues 25 200 1000 2500
vtxtable powerlabels PA1 PA2 PA3 PA4
saveSource: https://drive.google.com/file/d/1ToZmpAyZvhXlVQxNT7DR7YAKPbk5HPQ1/view — Copied from the maker's Betaflight file RUSH-1g3-3g3vtx.json in the RushFPV VTX Table Drive folder linked from rushfpv.net's Download Center. Power values are milliwatts, the steps the module's own label prints; the file names no control protocol. Bands as the file names them: BAND-A and BAND-B are the 3.3 GHz bands (3330-3470 and 3170-3310 MHz), BAND-E and BAND-F the 1.3 GHz ones (1080-1360 and 1200-1340 MHz). The file gives those four bands the letters A, B, A, B, which Betaflight cannot load; the letters stored are the ones the band names print (A, B, E, F). Ladder matches the label's PIT/25/200/1000/2500 mW; labels in the file are PA1-PA4.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Other transmitters in each of its bands, side by side: 1.2-1.3 GHz FPV VTX compared, 3.3 GHz FPV VTX compared; every manufacturer table in one place: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from
Two SMA ports on one module: port B is 1G3, port A is 3G3, and the four bands (1G3A, 1G3B, 3G3A, 3G3B) are split two to each port, eight channels each. Label: power steps PIT / 25 / 200 / 1000 / 2500 mW, 7-30 V. RushFPV also sells a 4 W version of this module under the same product page; it has no label photograph of its own, so it is not published as a separate page and the 4 W figure is not written into this one. Output above the lowest step is licensed spectrum in most countries; the module's own label carries that reminder. Channels is 32 since 2026-10-17: four bands of eight, as RushFPV's own Betaflight table for this module holds them (bands A, B, E and F, eight frequencies each), which matches the four bands (1G3A, 1G3B, 3G3A, 3G3B) this note describes. RushFPV does not print 32 anywhere; the 8 this page showed until then was one band's count
