RUSHFPV 3.3GHz 2W VTX Module
Of the 13 other 3.1-4.0 GHz analog video transmitters in our database, none has a lower maximum power than the 3.3GHz 2W VTX Module (2000 mW, 33 dBm) and 13 a higher one; the class median is 4000 mW. The 3.3GHz 2W VTX Module steps through 25 / 200 / 1000 / 2000 mW, which is 14 / 23 / 30 / 33 dBm: the top level is 19 dB above the lowest, about 8.9x the free-space range on the same antennas.
RUSHFPV's own Betaflight VTX table is on this page: 1 band of 8 channels, 3330–3470 MHz, 4 power levels, IRC Tramp. CLI commands and JSON file.
| System | analog |
|---|---|
| Max power | 2000 mW |
| Power levels | 25 / 200 / 1000 / 2000 mW |
| Frequency range | 3330-3470 MHz |
| Band | 3.1-4.0 GHz |
| Input voltage | 7-30V |
| Channels | 8 |
| Antenna connector | SMA |
| Weight | 16.5 g |
RUSHFPV 3.3GHz 2W VTX Module VTX table for Betaflight
The band and channel frequencies and power levels as RUSHFPV publishes them for IRC Tramp control. Paste the CLI commands into Betaflight's CLI tab, or load the JSON file in Betaflight Configurator's Video Transmitter tab. How it works: setting up a VTX table in Betaflight.
| Band | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| A BAND-A | 3330 | 3350 | 3370 | 3390 | 3410 | 3430 | 3450 | 3470 |
Frequencies in MHz; "—" is an unused slot. Power levels: 25 (value 25), 200 (value 200), 1 (value 1000), 2 (value 2000).
vtxtable bands 1
vtxtable channels 8
vtxtable band 1 BAND-A A CUSTOM 3330 3350 3370 3390 3410 3430 3450 3470
vtxtable powerlevels 4
vtxtable powervalues 25 200 1000 2000
vtxtable powerlabels 25 200 1 2
saveSource: https://drive.google.com/file/d/1gtdG6M4Ch7h9KkRNm58gVOm5eFJbx2eE/view — Copied from the maker's Betaflight file RUSHFPV_3G3_BAND-A(2).json in the RushFPV VTX Table Drive folder linked from rushfpv.net's Download Center. Power values are milliwatts, the steps the module's own label prints; the file names no control protocol; IRC Tramp is the maker's own spec sheet ('EXTERNAL CONTROL: IRC Tramp' / 'Protocol IRC Tramp', read 2026-10-20, burst 229). The maker publishes two single-band files for the 3.3 GHz 2 W module, BAND-A (3330-3470 MHz) and BADN-B (3170-3310 MHz); the module's case is silkscreened band A, 8CH, so the band-A file is the one stored. Ladder 25/200/1000/2000.
Transmitting is only legal on the frequencies and power your country allows; see VTX frequency bands.
Other transmitters in this band, side by side: 3.3 GHz FPV VTX compared; every manufacturer table in one place: VTX table library.
Choosing between systems? See analog vs DJI vs Walksnail vs HDZero.
Where this data comes from

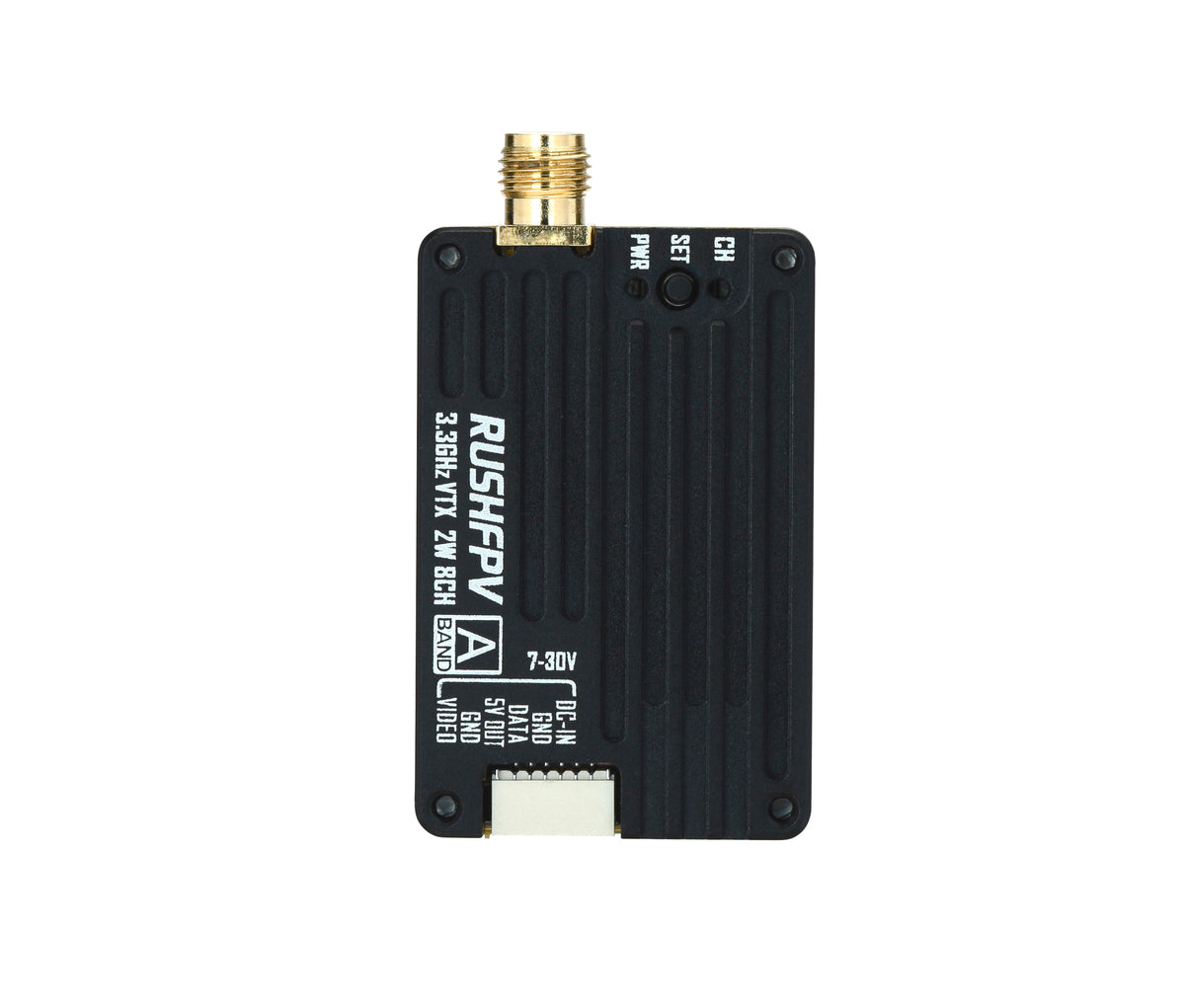

The case is silkscreened '3.3GHz VTX 2W 8CH', band A, 7-30 V, with a six-pin DC-IN / GND / DATA / 5V-OUT / GND / VIDEO harness - which is where these figures come from; the product page itself carries no spec block. Output above the lowest step is licensed spectrum in most countries; the module's own label carries that reminder. frequency_range, power_levels_mw, antenna_connector and weight_g are RushFPV's own '3.3GHz VIDEO TRANSMITTER Air KIT' sheet (the listing's description image 353cb0d32da4db38143b1f3b254cfdc5.jpg, 2480x3508), 'RUSHFPV 3.3GHz VTX 2W' table: 'Frequency* BAND-A 3330-3470MHz 8CH / BAND-B 3170-3310MHz 8CH' ('*BAND A and BAND B run on different models of transmitter hardware'), 'RF Power >2W', 'Protocol IRC Tramp', 'DC Input 7-30V', 'Connector SMA', 'Dimension L40.5 X W26 X H8.5mm', 'Weight 16.5g'; power level table PIT 0 / 25 / 200 / 1000 / 2000 mW. The listing sells one variant ('3.3G 2W Video Transmitter Air Kit'), its packaging-list image (3.3.jpg) shows the module silkscreened 'A BAND', as does the case photo, so the span is band A's, the same band as the stored Betaflight table; band B is other hardware this listing does not sell. Read 2026-10-20 (burst 229) at native resolution, fetched through common.UA.
